Factory Supplier Bare Copper Electrical Wire

Factory Supplier Bare Copper Electrical Wire thumbnail-1
Factory Supplier Bare Copper Electrical Wire thumbnail-2
Factory Supplier Bare Copper Electrical Wire photo-1
Factory Supplier Bare Copper Electrical Wire photo-2
US$ 1 - 15 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
yiteng
Model Number:
yiteng ABC Series
Contact Supplier Request Quote Chat Now
Yiteng Cable Technology Hebei Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name yiteng
Model Number yiteng ABC Series
Insulation Material PVC
Type Low Voltage
Application Other, Overhead, overhead electric distribution system
Conductor Material Aluminum
Jacket PVC



Product Description

factory supplier bare copper electrical wire


 Specifications

1. IEC, ASTM, DIN, BS, AS/NIS, JIS, IS etc
2. 0.6/1KV or 3.6/6~26/35 KV
3. Al, Al alloy,  al steel wire reinforced, al carbon fiber composite core
4. PVC,XLPE,PE, HDPE insulated
5. Overhead line and cable



Application for

factory supplier bare copper electrical wire



factory supplier bare copper electrical wire



A new type of aerial cable for power trasmitting. It is extensively used in overhead power transimission line.

Conductors are concentrically stranded, compressed with 1350—H19 aluminum, Insulated with polyethylene (PE) or cross linked polyethylence (XLPE) ,or PVC. Neutral messengers are concentrically stranded 6201AAAC, or ACSR.or ACCC

Structures  & Parameters  for



factory supplier bare copper electrical wire





 factory supplier bare copper electrical wire



 factory supplier bare copper electrical wire



factory supplier bare copper electrical wire

parameters and data sheet for

  factory supplier bare copper electrical wire





British System

Duplex Service Drop
1Application
Primarily used for 120volt overhead service application such as street lighting,outdoor lighting,and temporary service for construction.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
2Construction

Code*Word Phase conductor Bare Neutral Message Nominal lay Length Weight Per
1000 ft.(lbs.)		 Allo wable Amp acitles
Size
(A WG)		 Stranding Insulation
Thick(Mils)		 Size
(AWG)		 Stranding Rated
Strength
(lbs.)		 inches XLP POLY XLP POLY
AAC Neutral-messenger
Pekingese 6 1 45 6 7 563 10.36 61 61 85 70
Collie 6 7 45 6 7 563 10.36 64 64 85 70
Dachshund 4 1 45 4 7 881 10.36 92 92 115 90
Spaniel 4 7 45 4 7 881 10.36 96 96 115 90
Doberman 2 7 45 2 7 1350 14.88 147 147 150 120
Malemute 1/0 9 60 1/0 7 1990 14.88 234 234 205 160

Triplex Service Drop
1Application
Used to supply power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
2Construction

Code*Word Phase conductor Bare Neutral Message Nominal lay Length Weight Per
1000 ft.(lbs.)		 Allo wable Amp acitles
Size
(A WG)		 Stranding Insul
Thick(Mils)		 Size
(AWG)		 Stranding Rated
Strength
(lbs.)		 inches XLP POLY XLP POLY
AAC Neutral-messenger
Pateela 6 7 45 6 7 563 14.88 103 103 85 70
Oyster 4 7 45 4 7 881 14.88 154 154 115 90
Clam 2 7 45 2 7 1350 20.58 233 233 150 120
Murex 1/0 7 60 1/0 7 1990 20.58 374 374 205 160
Purpura 1/0 9 60 1/0 7 1990 20.58 368 368 205 160
Nassa 2/0 7 60 2/0 7 2510 25.42 462 462 235 185
Melita 3/0 17 60 3/0 19 3310 29.97 562 562 275 215
Portunus 4/0 18 60 4/0 19 4020 29.97 696 696 315 245
Nannynose 336.4 19 60 336.4 19 6146 38.79 1118 1118 420 325


Quadruplex Service Drop
1Application
Used to supply 3-phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
2Construction

Code*Word Phase conductor Bare Neutral Message Nominal lay Length Weight Per
1000 ft.(lbs.)		 Allo wable Amp acitles
Size
(A WG)		 Stranding Insul
Thick(Mils)		 Size
(AWG)		 Stranding Rated
Strength
(lbs.)		 inches XLP POLY XLP POLY
AAC Neutral-messenger
Clydessdale 4 1 45 4 7 881 20.58 198 198 100 80
Pinto 4 7 45 4 7 881 20.58 211 211 100 80
Mustang 2 7 45 2 7 1350 25.42 318 318 135 105
Criollo 1/0 9 60 1/0 7 1990 25.42 503 503 180 140
Percheron 2/0 11 60 2/0 7 2510 29.97 619 619 205 160
Hanovarian 3/0 17 60 3/0 19 3310 35.18 764 764 235 185
Oldenburg 4/0 18 60 4/0 19 4020 35.18 945 945 275 210
Lippizaner 336.4 19 80 336.4 19 6146 38.79 1519 1519 370 280






 The metric system



 Construction &Cross sectional area       Insulated Conductors       Suspension neutral   cable
      Distribution Phase Street  Lighting
  Number &Cross section area No.of Wires   Approx conductor Diameter   Max. Resistance at 20℃   Current Carrying Capacity     Number &Cross section area Current Carrying Capacity     Approx Suspension Wire Diameter Breaking load   Max. Resistance at 20℃   Approx. Cable Diameter   Approx. Cable Weight
mm2  mm2    mm  ohm/km  A  mm  A  mm  kN  ohm/km  mm  kg/km
 2x16 2x16   7  4.8  1.91  93  - -  -  -  -  15 132
 2x25 2x25  7  6.0  1.200  122  - -  -  -  -  18.5 200
 3x35  3x35  7  7.0  0.868  129  - -  -  -  -  22 280
 2x50  2x50  7  8.4  0.641  158  -  - -  -  -  24 370
 4x16  4x16  7  4.8  1.910  83  - -  -  -  -  18 265
 4x25  4x25  7  6.0  1.200  111  - -  -  -  -  22 400
 4x35  4x35  7  7.0  0.868  131  - -  -  -  -  26  550
 3x25+54.6  3x25  7  6.0  1.200  112  - -  9.6  16  0.63  30  470
 3x25+54.6+1x16  3x25  7  6.0  1.200  112  1x16 60  9.6  16  0.63  30  570
 3x25+54.6+2x16  3x25  7  6.0  1.200  112 2x16  -  9.6  16  0.63  30  640
3x35+54.6   3x35  7  7.0  0.686  138  - -  9.6  16  0.63  33  580
 3x35+54.6+1x16  3x35  7  7.0  0.868  138  1x16 60  9.6  16  0.63  33  690
 3x35+54.6+2x16  3x35  7  7.0  0.868  138 2x16  -  9.6  16  0.63  33  750
 3x50+54.6  3x50  7  8.4  0.641  168  - -  9.6  16  0.63  36  720
 3x50+54.6+1x16  3x50  7  8.4  0.641  168  1x16 60  9.6  16  0.63  36  820
 3x50+54.6+2x16  3x50  7  8.4  0.641 168   2x16 - 9.6 16 0.63 36 890
 3x70+54.6  3x70  14  10.0  0.443 213   - -  9.6  16  0.63  38  930
 3x70+54.6+1x16  3x70  14  10.0  0.443 213   1x16 60  9.6  16  0.63  38  1030
 3x70+54.6+2x16  3x70  14  10.0  0.443 213  2x16 -  9.6  16  0.63  38  1100
 3x70+54.6+1x25  3x70 14   10.0  0.443  213  1x25 -  9.6  16  0.63  40  1070
 3x70+54.6+2x25  3x70  14  10.0  0.443  213 2x25  -  9.6  16  0.63  40  1170
 3x70+70  3x70  14  10.0  0.443 213   - -  10.2  20.6  0.50  41  970
 3x70+70+1x16  3x70  14  10.0 0.443  213  1x16  60  10.2  20.6  0.50  41  1080
 3x70+70+2x16  3x70  14  10.0  0.443 213   2x16 -  10.2  20.6  0.50  41  1150
 3x95+70  3x95  19  11.5 0.320  258   - -  10.2  20.6  0.50  44  1200
 3x95+70+1x16  3x95  19  11.5  0.320 258   1x16 60  10.2  20.6  0.50  44  1300
 3x95+70+2x16  3x95  19  11.5  0.320  258  2x16 -  10.2 20.6  0.50  44 1380
 3x120+70  3x120  19  13.0 0.253  300  - -  10.2  20.6  0.50  46  1430
 3x120+70+1x16  3x120  19  13.0 0.253  300 1x16  60  10.2  20.6  0.50  46  1540
 3x120+70+2x16  3x120  19  13.0  0.253 300   2x16 -  10.2  20.6  0.50  46  1600
 3x150+70  3x150  19  14.5  0.206 344   - -  10.2  20.6  0.50  48  1680
 3x150+70+1x16  3x150 19   14.5  0.206 344   1x16 60  10.2  20.6  0.50  48  1780
 3x150+70+2x16  3x150  19  14.5  0.206 344  2x16  -  10.2  20.6  0.50  48  1850
 3x120+95  3x120  19  13.0  0.253  300  - -  12.9  27.9  0.343  47  1500
 3x120+95+1x16  3x120  19  13.0  0.253  300  1x16 60  12.9  27.9  0.343  47   1620
 3x120+95+2x16  3x120  19  13.0  0.253 300   2x16 -  12.9  27.9  0.343  47  1680
 3x150+95  3x150 19   14.5  0.206 344   - -  12.9  27.9  0.343  49  1740
 3x150+95+1x16  3x150  19  14.5  0.206 344   1x16 60  12.9  27.9  0.343  49  1880
 3x150+95+2x16  3x150  19  14.5  0.206 344   2x16 - 12.9 27.9

 0.343

 49  1940

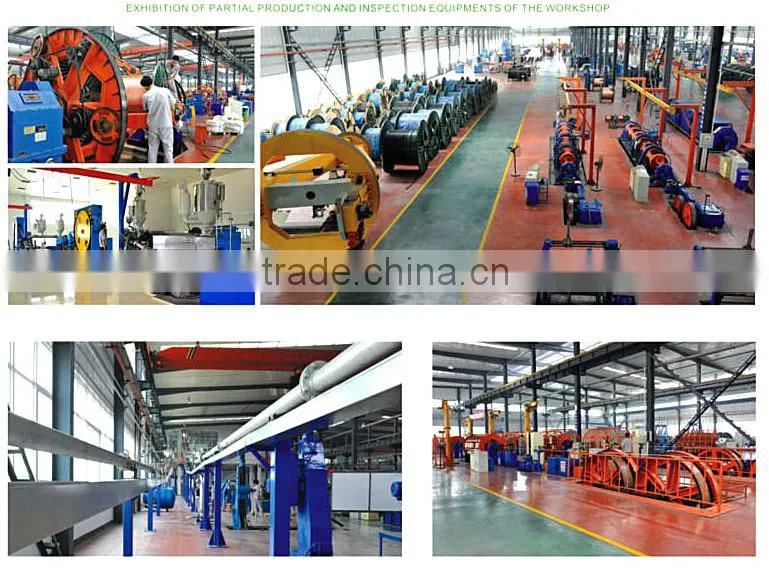

 workshop  for

  factory supplier bare copper electrical wire










factory supplier bare copper electrical wire

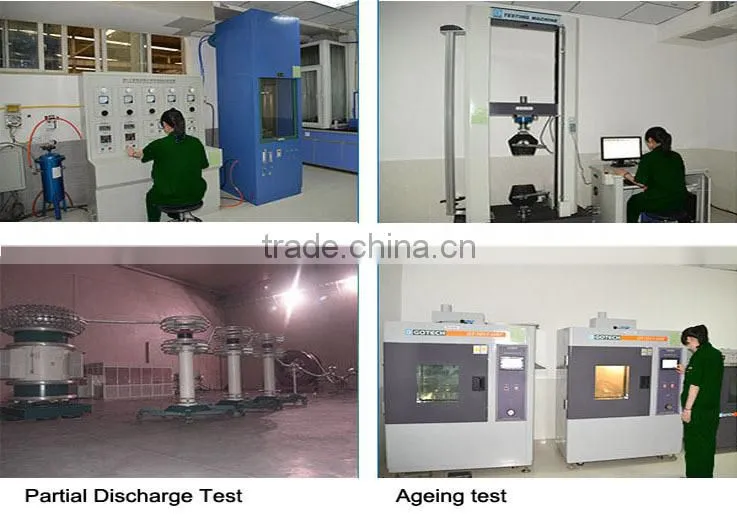

Test before shipment for

factory supplier bare copper electrical wire





factory supplier bare copper electrical wire



 Certificates for

factory supplier bare copper electrical wire

factory supplier bare copper electrical wire



Packaging & Shipping

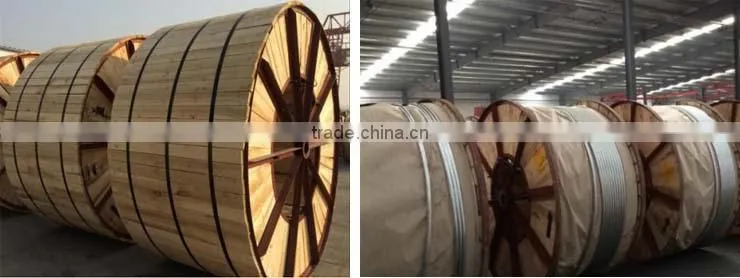

 Packing details for

factory supplier bare copper electrical wire









 factory supplier bare copper electrical wire



wooden drum / iron- wooden drum, iron drum or customized

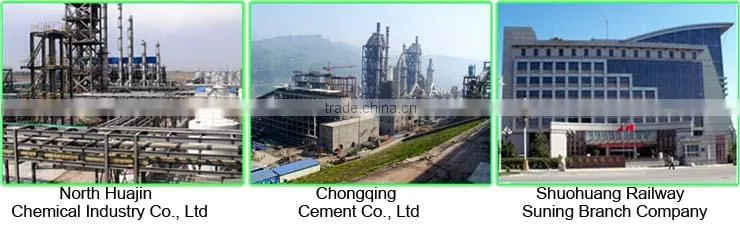

Sample Projects For

factory supplier bare copper electrical wire





factory supplier bare copper electrical wire



Our Services

OEM and ODM services

Original Equipment Manufacturer and Original design Manufacturer acceptable.

Timely delivery and quick response to any questions.

Professional staff  in foreign trade and business at your service

sample available

24 hours online response

Customer first, forge ahead



FAQ



1. How many years has Yiteng Cable Group been in production?
Founded in October 1990, with more than 25 years in production


2. What kinds of products does Yiteng Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

7)Copper or Aluminium Conductor,  XLPE,PVC, PE  jacket or  insulation and Steel wire, steel tape, self lock aluminium  armoured cables

3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS

4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.

5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.

6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.

7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.

8. Do you supply the customers with installation service in foreign country ?
We don’t have professional installation teams in foreign country.But if it is necessary,  our partners
will be  recommend to cooperate with you.
