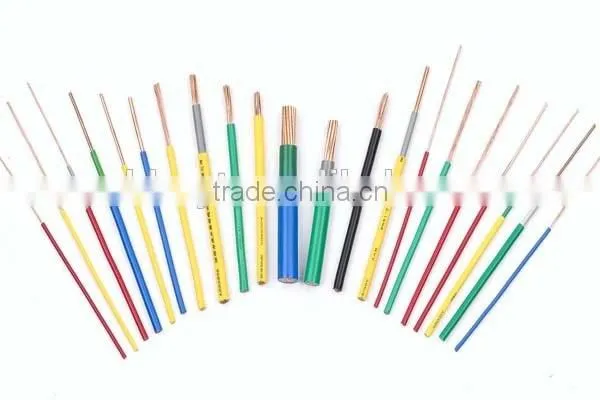

Solid Single-Core Copper/ PVC Insulated Wire (BV)
Specifications
PVC Insulated Electrical BV wire
1. 450/750V PVC Wire
2. Insulated Copper Wire
3. ISO9001, ISO14001, CCC Certification
A. Description
Construction: Solid annealed copper wire as conductor (Class 1), PVC insulated single core wire.
Code Name: H05V-U ( 0.5mm2 ~ 1.0mm2 ); H07V-U ( 1.5mm2 ~ 10mm2 )
Voltage: 300/500V for H05V-U; 450/750V for H07V-U.
B. Voltage Uo/U
450/750V 300/500V
Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
C. Application
The non-sheathed single core wire is used for fixed wiring. It is laid in dry, normal and light duty conditions, such as in conduit and under plaster in building.
D. Manufacturing Standards
GB/T 5023-2008, BS 6004, IEC 60227
E. Specification Size and Technical Data
Type |
Rated Voltage |
Description |
BV (IEC227-01) |
450/750V and Below |
PVC insulated non-sheath wire for fixed wiring |
RV (IEC227-02) |
PVC insulated non-sheath flexible wire for fixed wiring |
|
BV (IEC227-05) |
PVC insulated non-sheath wire for fixed wiring |
|
RV (IEC227-06) |
PVC insulated non-sheath flexible wire for fixed wiring |
|
BV-90 (IEC227-07) |
PVC insulated non-sheath wire for fixed wiring (90℃ type) |
|
RV-90 (IEC227-08) |
PVC insulated non-sheath flexible wire for fixed wiring (90℃ type) |
|
BVV (IEC227-10) |
PVC insulated and sheathed wire for fixed wiring |
|
RVV (IEC227-52) |
PVC insulated and sheathed flexible wire for fixed wiring |
|
RVV (IEC227-53) |
PVC insulated and sheathed flexible wire for fixed wiring |
|
NH-BV (IEC227-01) |
PVC insulated non-sheath fire resistance wire for fixed wiring |
With Yiteng Cable, for the Electrical Wires,
Packing:
1. Packing Length:100m/roll, 200m/roll, 305m/roll, 500m/roll
2. Inner packing: Transparent Shirnk Film, Easy pull box, Wooden reel, plastic reel
3. Outer packing: Carton box, pallet available
4. Other packing available according to client's request.
Shipping:
Normally immediate shipment is available for regular items, custom-made production lead time is 15-20 days.
Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.
| Welcome Your Visit! Hope to Get in Touch with You! | |
| Cable Factory Name | Yiteng Cable Technology Hebei Co., Ltd. |
| Factory Established in | Year 1994, 20 Years’ Experience of Producing kinds of Cables |
| Factory Location | Jiajiakou Town, Ningjin County, Hebei, China |
| Export Office Location | No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
|
Cable Products Type |
Electrical Wires |
| Customized Cables per Requirement | |
| Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
| Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
| Aluminum Alloy Cable with/ without Armor and Interlock | |
| Shielded/ Screened Control Cable | |
| Computer Shielded Cable | |
| Flexible Rubber Cable | |
|
Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
| High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
| Fire Resistant/ Flame Retardant Power Cable | |
| Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour (Armour Type: Steel Tape or Steel Wire) | |
Contact US
If you have any question about our products, pls contact us directly.
We will responde to you within 12 hours and there are our technical team to assist you all the time.
