Cheap Flexible CU/PVC Single Core Wire, BV Electrical Wire
Specifications
PVC Insulated Flexible Electrical RV wire
1. 450/750V PVC Wire
2. Insulated Copper Wire
3. ISO9001, ISO14001, CCC Certification
Description

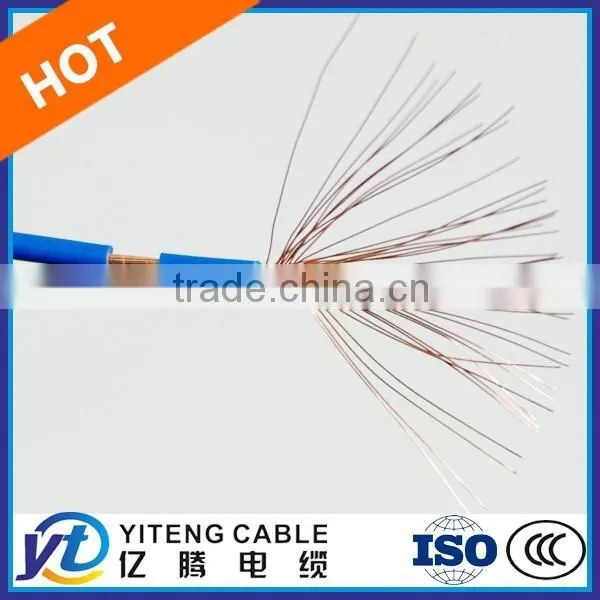

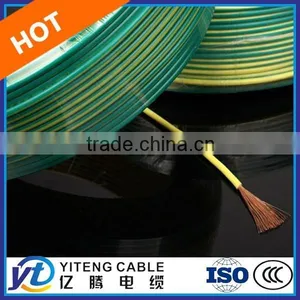

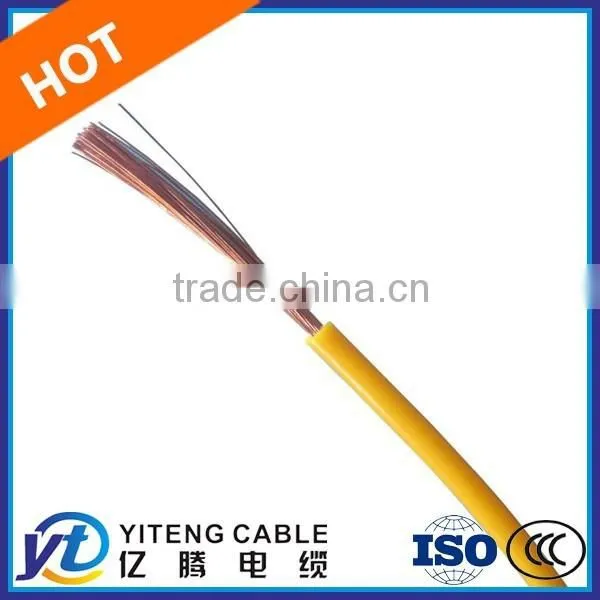

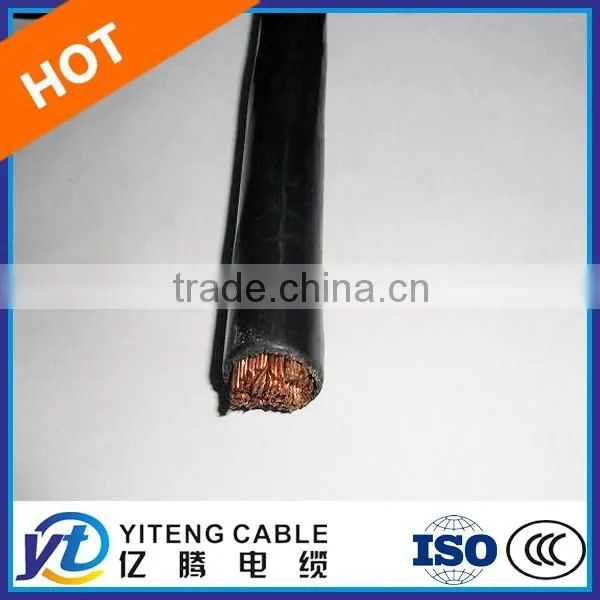

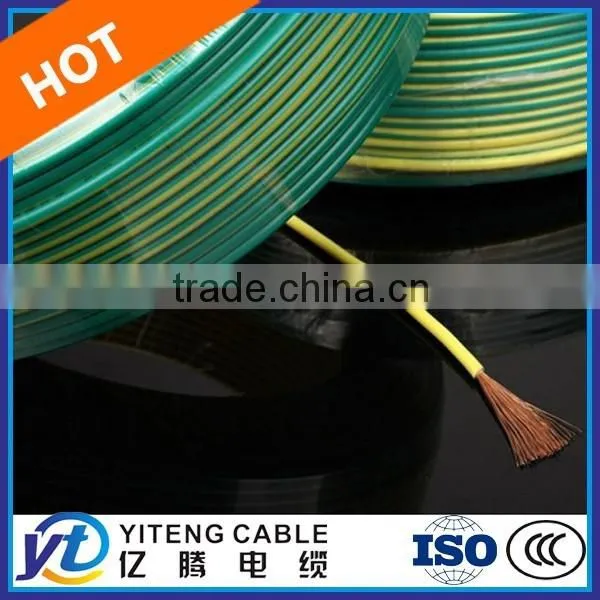

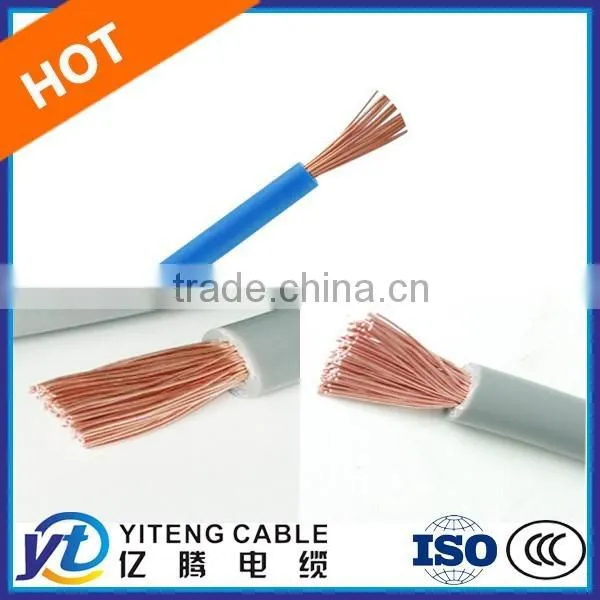

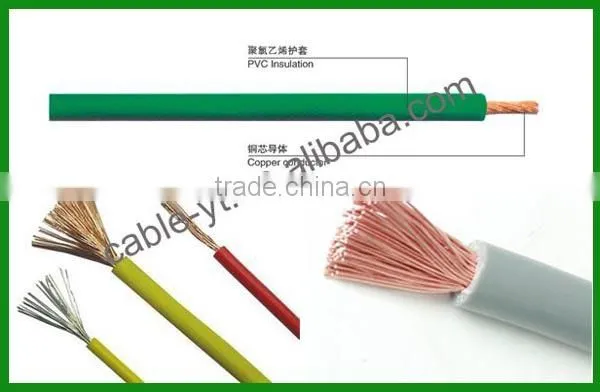

Construction: Flexible annealed copper wire as conductor (Class 5), PVC insulated single core wire.
Code Name: H05V-K ( 0.5mm2 ~ 1.0mm2 ); H07V-K ( 1.5mm2 ~ 240mm2 )
Voltage: 300/500V for H05V-K; 450/750V for H07V-K.
1. Application: PVC Insulated Single Core Copper Flexible Cable RV Electrical Wire is used for switch control,instrumentation panels and for internal connection.
2. Color: Red,brown,grey,blue,black,orange,green/yellow or others on request
3. U0/U: 300/500V,450/750V
4. Standard: IEC 60227, BS6500, VDE0281, GB/T 5023,JB/T8734
5. Conductor: Class 5 Plain annealed copper wires
6. Insulation: PVC
7. Cross section area: 0.5~120mm²
8. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement
9. Certification: ISO9001/ISO14001 /OHSAS18001/CCC/CE/CB
10.Notes: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
11. Specification Size and Technical Data:
Model |
Name |
RV |
Copper Core PVC Insulation Flexible Wire |
RVB |
Copper Core PVC Insulation Flat Flexible Wire |
RVS |
Copper Core PVC Insulation Twisted Flexible Wire |
RVV |
Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB |
Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-105 |
Copper Core Heat-resistak Losc PVC Flexible Wire |
| Code Name | Nominal conductor area | Number of wires | Nominal diameter of wire | Nominal thickness of insulation | Approx. Overall diameter | Max. Conductor DC resistance at 20oC |
| mm2 | No. | mm | mm | mm | Ω/km | |
| H05V-K | 0.5 | 16 | 0.2 | 0.6 | 2.1 | 39 |
| 0.75 | 24 | 0.2 | 0.6 | 2.3 | 26 | |
| 1 | 32 | 0.2 | 0.6 | 2.5 | 19.5 | |
| H07V-K | 1.5 | 30 | 0.25 | 0.7 | 3 | 13.3 |
| 2.5 | 50 | 0.25 | 0.8 | 3.6 | 7.98 | |
| 4 | 81 | 0.25 | 0.8 | 4.2 | 4.95 | |
| 6 | 121 | 0.25 | 0.8 | 4.8 | 3.3 | |
| 10 | 77 | 0.4 | 1 | 6.5 | 1.91 | |
| 16 | 126 | 0.4 | 1 | 7.8 | 1.21 | |
| 25 | 196 | 0.4 | 1.2 | 9.7 | 0.78 | |
| 35 | 280 | 0.4 | 1.2 | 11.5 | 0.554 | |
| 50 | 380 | 0.4 | 1.4 | 13.1 | 0.386 | |
| 70 | 350 | 0.5 | 1.4 | 15.5 | 0.272 | |
| 95 | 475 | 0.5 | 1.6 | 17.6 | 0.206 | |
| 120 | 600 | 0.5 | 1.6 | 19.7 | 0.161 | |
| 150 | 750 | 0.5 | 1.8 | 22 | 0.129 | |
| 185 | 925 | 0.5 | 2 | 24.1 | 0.106 |
With Yiteng Cable, for the BV, BVR, BVV, BVVR, RVS Electrical Wires,
Packing:
1. Packing Length:100m/roll, 200m/roll, 305m/roll, 500m/roll
2. Inner packing: Transparent Shirnk Film, Easy pull box, Wooden reel, plastic reel
3. Outer packing: Carton box, pallet available
4. Other packing available according to client's request.
Shipping:
Normally immediate shipment is available for regular items, custom-made production lead time is 15-20 days.
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
Δ Aluminum Alloy Cable with or without Armor and Interlock,
Δ Control Cable with Multi-Cores,
Δ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
Δ Shielded Cable or Screened Cable,
Δ ABC Cable in Aluminum for Overhead Application,
Δ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
Δ Rubber Cable for General Purposes, Welding Machines or for Mining,
Δ Armored Cable with Steel Tape or Steel Wire Armor,
Δ PVC Cable with PVC Insulation and PVC Sheath,
Δ Low Voltage Power Cable,
Δ Medium Voltage Power Cable,
Δ Fire Resistant Cable and Flame Retardant Cable,
Δ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,
Δ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable,
We can provide our customers with products in accordance with GB,JB Standard,or IEC,BS,VDE,JIS orUL Standards in the world.
Questions and Answers!
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables: Bare Conductor: AAC, AAAC, ACAR, ACSR;
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
It depends on the production line. For the Overhead Line Cable, the production line is long, so the MOQ should be long enough for the production line to run.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
Pls click and contact us for any question or problem! YITENG CABLE will always be at your service.
