Ethernet to SFP Fiber Switch

Ethernet to SFP Fiber Switch thumbnail-1
Ethernet to SFP Fiber Switch thumbnail-2
Ethernet to SFP Fiber Switch thumbnail-3
Ethernet to SFP Fiber Switch thumbnail-4
Ethernet to SFP Fiber Switch thumbnail-5
Ethernet to SFP Fiber Switch thumbnail-6

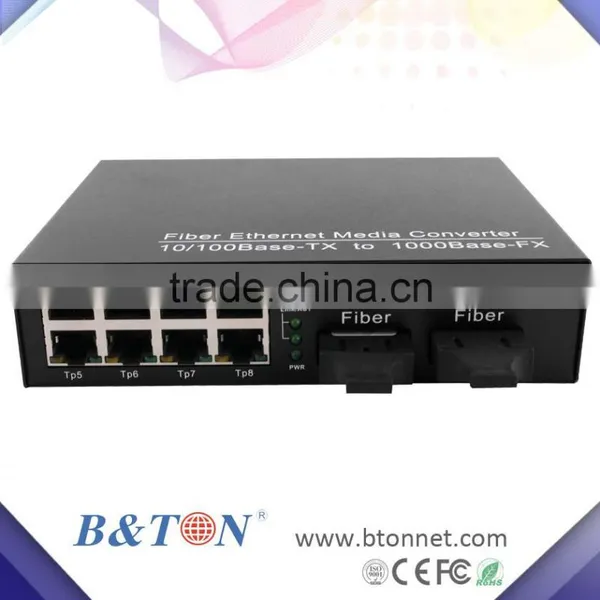

Ethernet to SFP Fiber Switch photo-1
Ethernet to SFP Fiber Switch photo-2
Ethernet to SFP Fiber Switch photo-3
Ethernet to SFP Fiber Switch photo-4
Ethernet to SFP Fiber Switch photo-5
Ethernet to SFP Fiber Switch photo-6
US$ 5 - 50 MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
B&TON/OEM
Model Number:
BT-950
Contact Supplier Request Quote Chat Now
Shenzhen Bton Weiye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name B&TON/OEM
Model Number BT-950
Product Description

B&TON SFP to Ethernet Switch
This SFP to Ethernet Switch makes transmission between UTP Copper cables and Slot SFP (Small Form-Factor Plug-gable) transceivers. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via Slot cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.

Features
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Pluggable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance more than 50 thousands hours with fault-free.
* Interface: RJ-45 connector / SFP Slot
* In conformity with safety code of FCC, CE and RoHS.


Application
Extend your Ethernet connection up to 0~120km away using fiber optics
Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

Optical Interface
Connector
LC
Data Rate
100Mbps, 1000Mbps
Duplex Mode
Full duplex
Fiber
MM 50/125um,62.5/125um;SM 9/125um
Distance
100Mbps:
MM 2km,SM 25/40/60/80/100/120km
1000Mbps:
MM 550m/2km,SM 20/40/60/80km
Wavelength
MM 850nm,1310nm
SM 1310nm,1550nm
WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)
WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side)
UTP Interface
Connector
RJ45
Data Rate
10/100Mbps, 10/100/1000Mbps
Duplex Mode
Half/full duplex
Cable
Cat5,Cat6
Power Input
Adapter Type
DC5V
Power Built-in Type
AC100~240V
Power Consumption
＜3W
General
Temperature
0~50℃ Operating; -40~70℃ Storage
Humidity
5~95%(no condensing)
MTBF
≥10.0000h
Certification
CE,FCC,RoHS
Part Number
Description
BT-950SFP-FE
10/100Mbps 1SFP Slot and 1RJ45 Port
BT-918SFP-FE
10/100Mbps 1SFP Slot and 8RJ45 Port
BT-928SFP-FE
10/100Mbps 2SFP Slot and 8RJ45 Port
BT-950SFP-GE
10/100/1000Mbps 1SFP Slot and 1RJ45 Port
BT-912SFP-GE
10/100/1000Mbps 1SFP Slot and 2RJ45 Port
BT-914SFP-GE
10/100/1000Mbps 1SFP Slot and 4RJ45 Port
BT-922SFP-GE
10/100/1000Mbps 2SFP Slot and 2RJ45 Port
BT-924SFP-GE
10/100/1000Mbps 2SFP Slot and 4RJ45 Port
BT-918SFP-GE
10/100/1000Mbps 1SFP Slot and 8RJ45 Port
BT-928SFP-GE
10/100/1000Mbps 2SFP Slot and 8RJ45 Port
BT-981SFP-GE
10/100/1000Mbps 8SFP Slot and 1RJ45 Port
BT-980SFP-GE
10/100/1000Mbps 8SFP Slot
Detailed Images

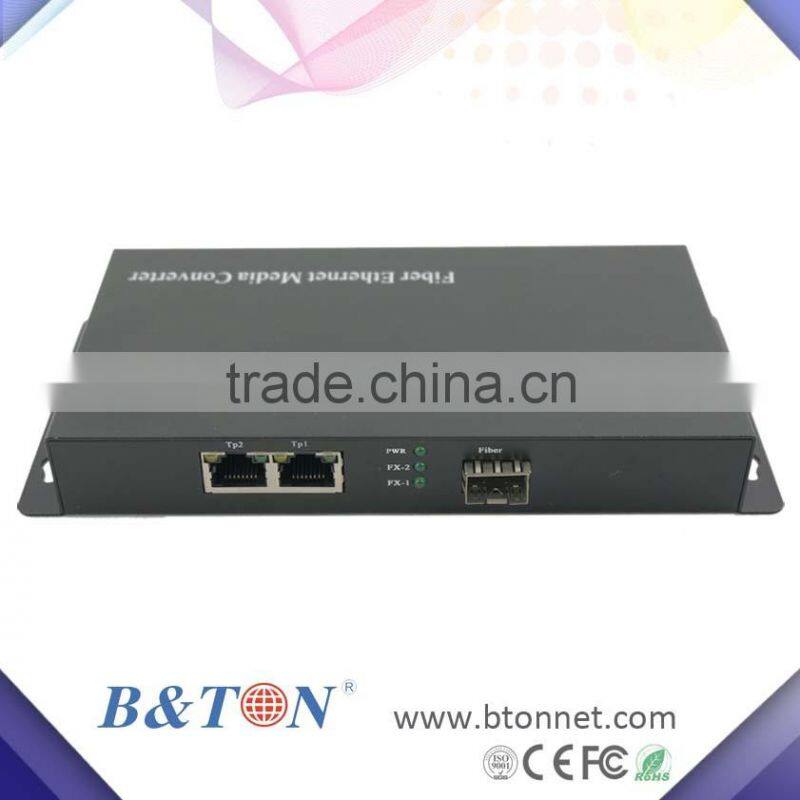

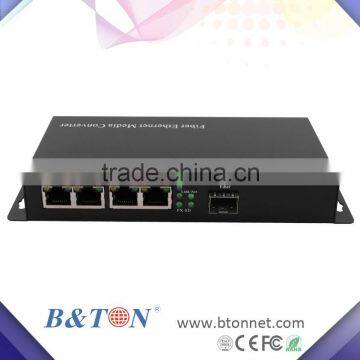

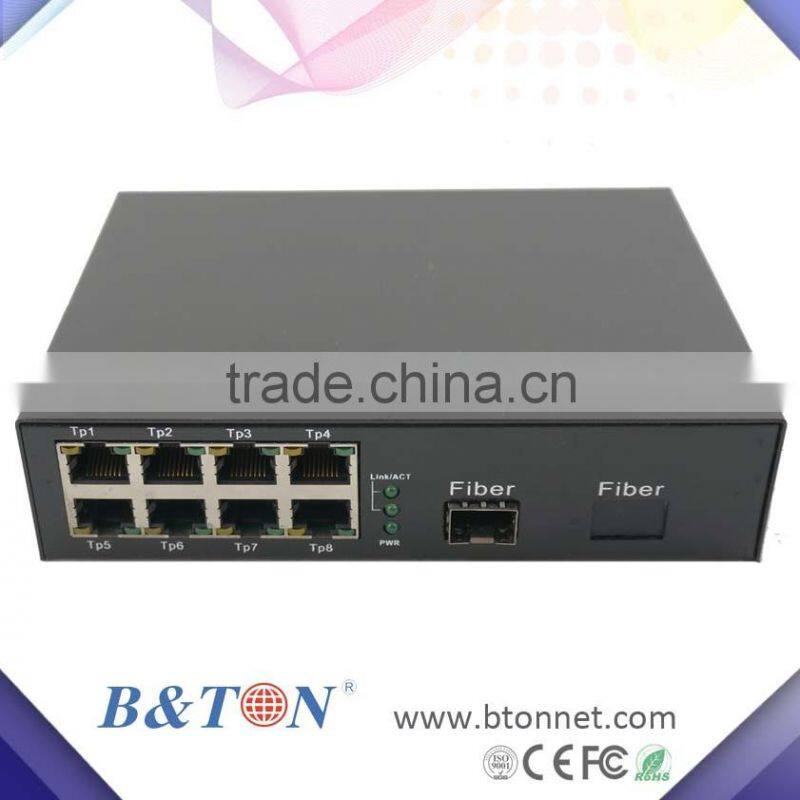

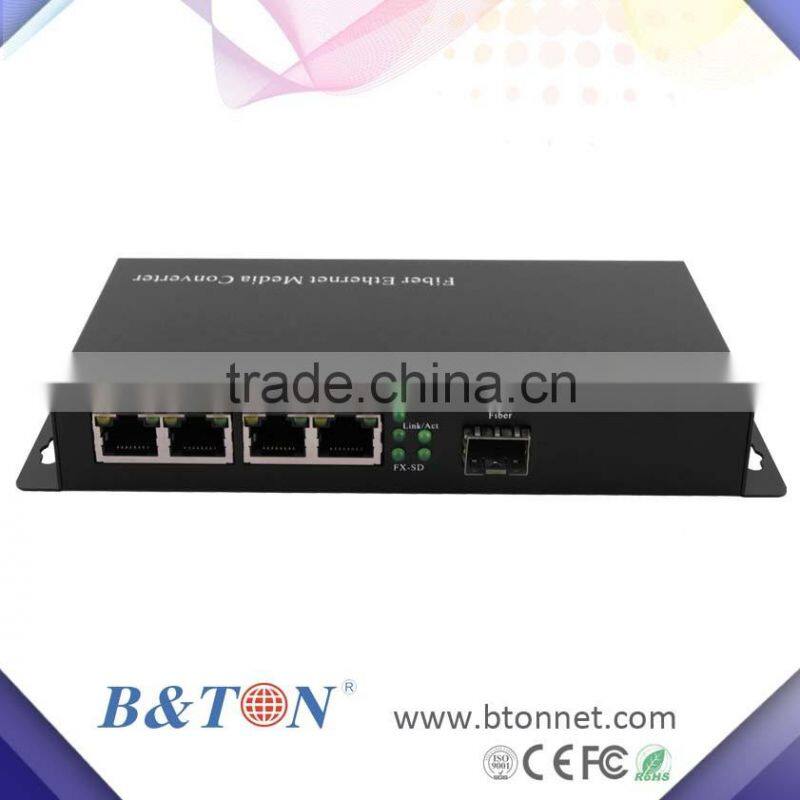

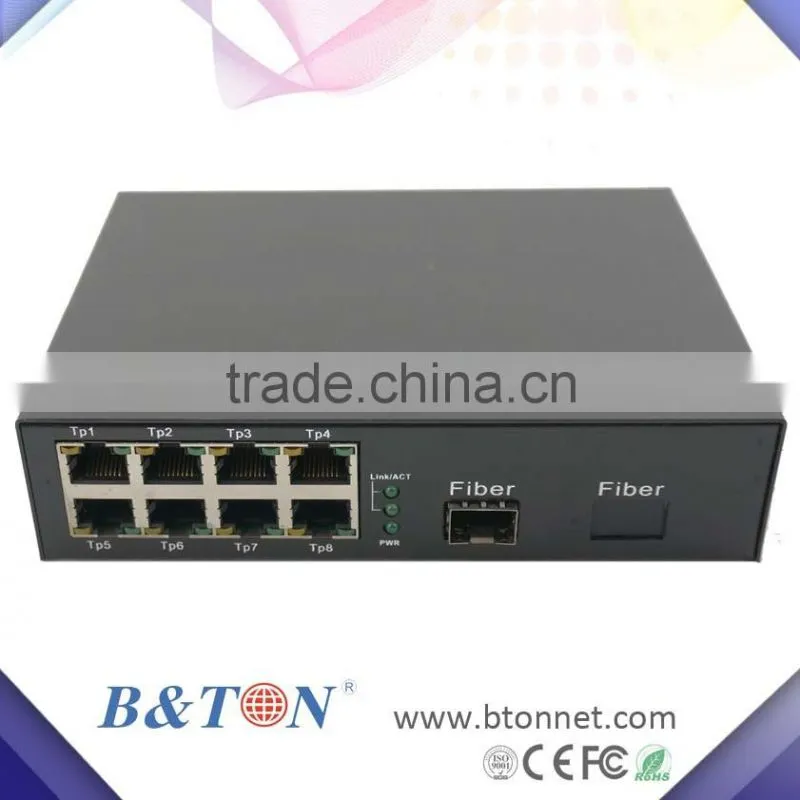

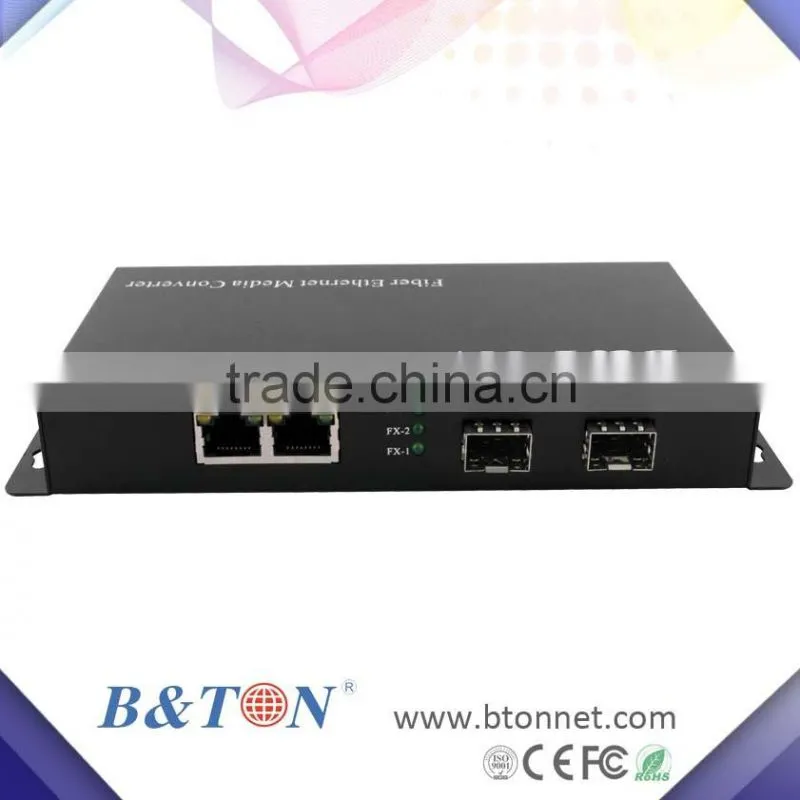

1SFP+2RJ45                             1SFP+4RJ45                             1SFP+8RJ45                              2SFP+2RJ45

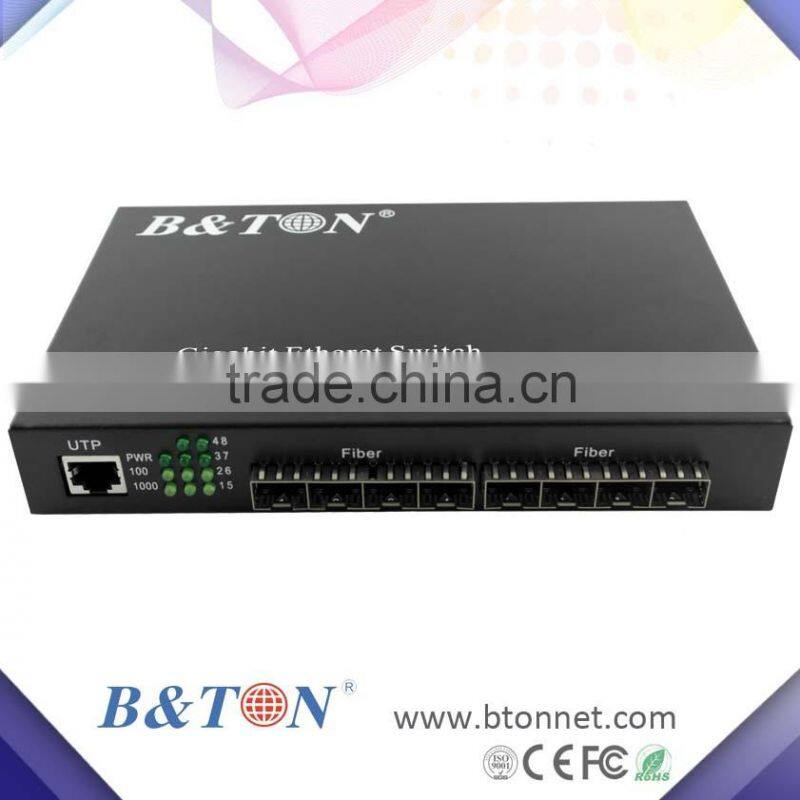

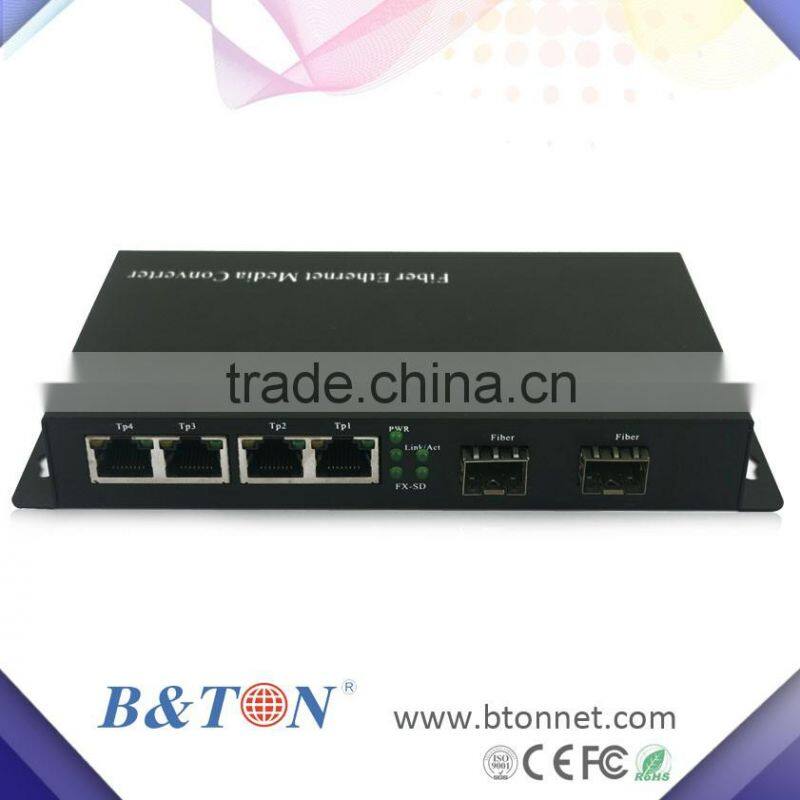

2SFP+4RJ45                                                                                                 8SFP+1RJ45

Connection

Network Fiber Transmission Solution

Digital Video Fiber Transmission Solution

Certificates
Packing & Delivery
BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.

CPSE

 The China Public Security Expo

.

CIOE

The China International Optoelectronic Exposition

Contact BTON

B&TON Overseas Sales Manager

Ms. Angela Bai
Shenzhen BTON Technology Co.,Ltd
Website:
Skype: btonnet01
WhatsApp/Wechat/Mobile: +86-13430481901
Email: info at
Factory Address: 5-6/F, Building 9/29, Chiling Road, Dalang Blvd.,Longhua New Dist. Shenzhen, China
