Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > HDMI to Fiber Converter

HDMI to Fiber Converter

Name: HDMI to Fiber Converter
Brand: B&TON/OEM
SKU: 112992237
Availability: InStock

US$ 30 - 500 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

B&TON/OEM

Model Number:

HDMI1VF-T/R

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name B&TON/OEM

Model Number HDMI1VF-T/R

Product Description

HDMI Fiber Optical Extender Compressed for Small Screen

Description
The HDMI Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232 signal and external audio transmission function(optional). The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features
> Transmits HDMI video signals up to 10km over one fiber optic cable;
> Support video resolution up to 1920*1080P@60Hz;
> Support keyboard and mouse signal transmission;
> Support external stereo audio unidirectional transmission;
> Support RS232 signal unidirectional transmission, baud rate self-adaptive;
> Compliance with HDMI 1.3 and HDCP 1.2 standard;
> High compatibility, can auto-match source and display device;
> Built-in automatic adjustment system, make the image smooth, clear and stable;
> Built-in ESD protection system;
> Easy to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	19201080@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	HDMI-A
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	2.97Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	13613030mm
	The warranty	3year warranty

Detailed Images

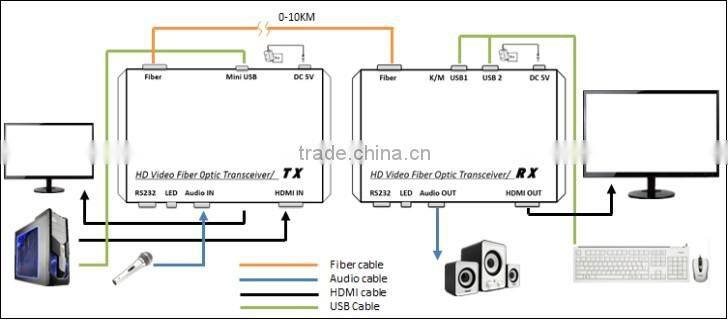

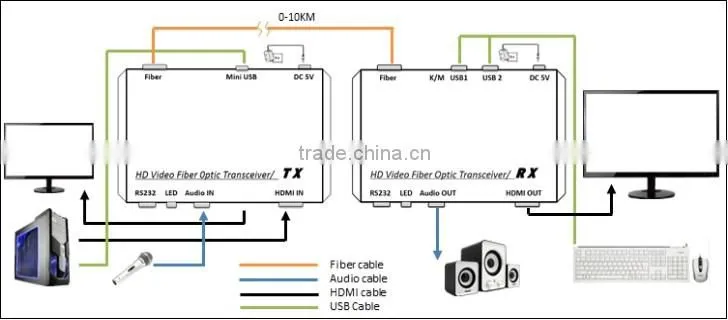

Connection

Certificates

Packing & Delivery

BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.
