HD-CVI/TVI/AHD to Fiber 1080P

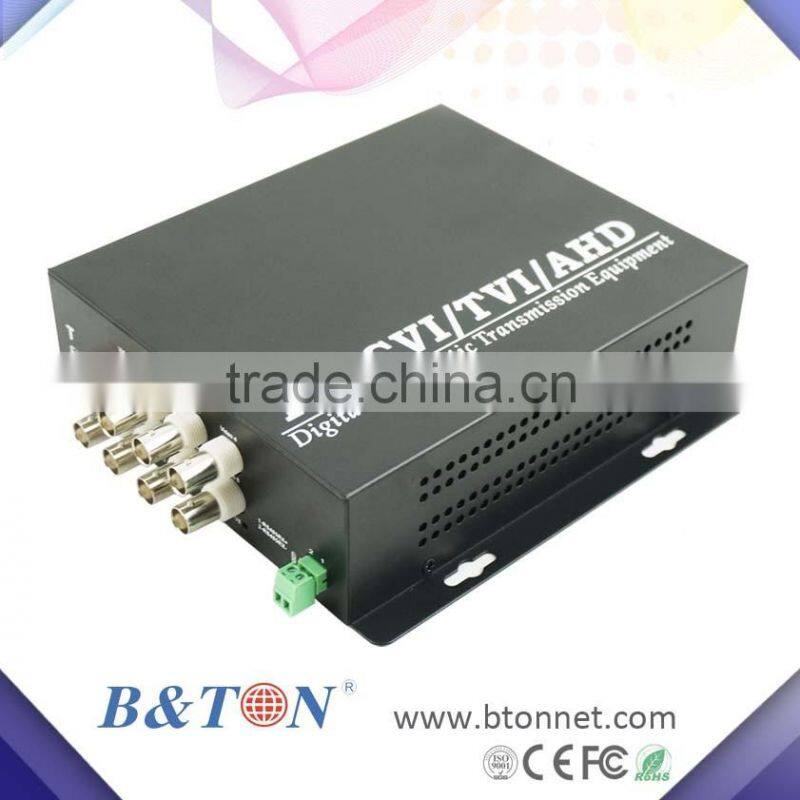

HD-CVI/TVI/AHD to Fiber 1080P photo-1

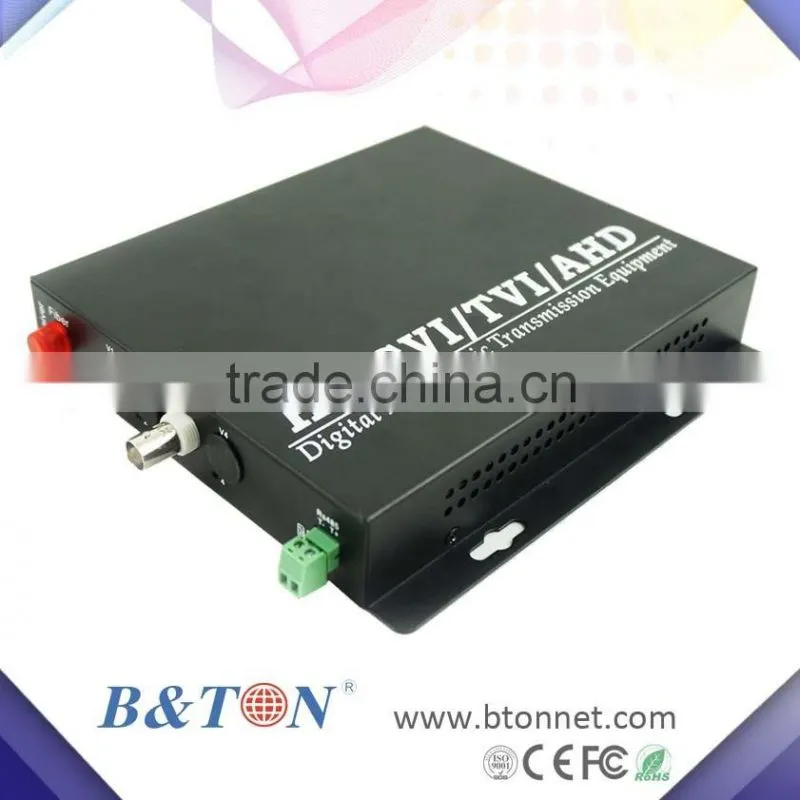

HD-CVI/TVI/AHD to Fiber 1080P photo-2

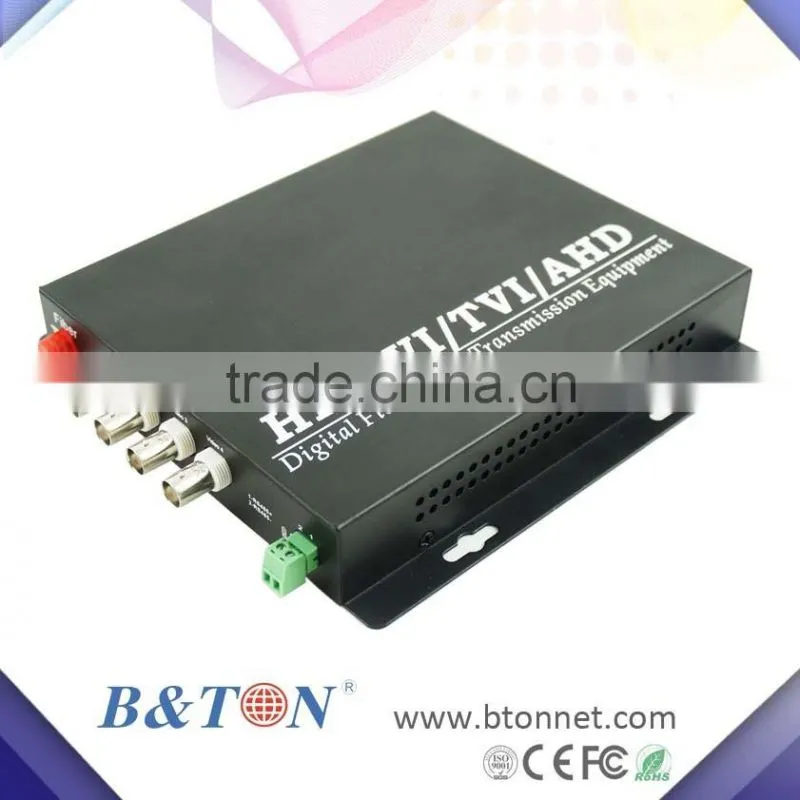

HD-CVI/TVI/AHD to Fiber 1080P photo-3

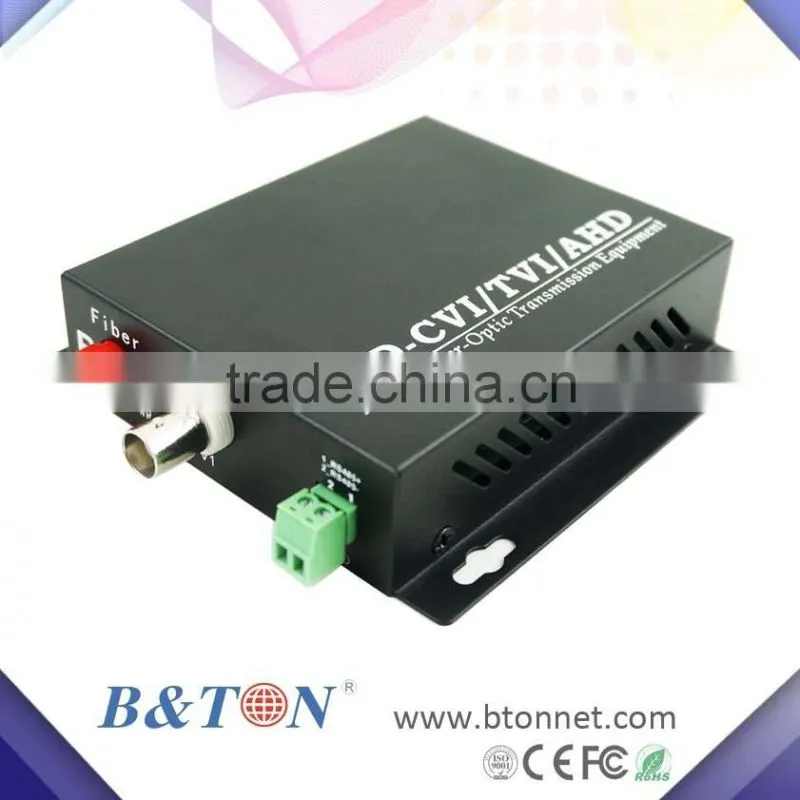

HD-CVI/TVI/AHD to Fiber 1080P photo-4

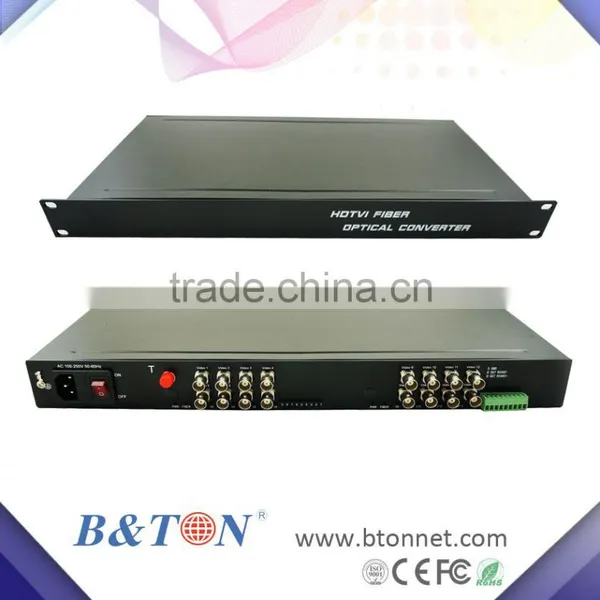

HD-CVI/TVI/AHD to Fiber 1080P photo-5
US$ 30 - 500 MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
B&TON/OEM
Model Number:
HD1V1DF-T/R
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name B&TON/OEM
Model Number HD1V1DF-T/R
Product Description

HD-CV/TVI/AHD Video to Fiber Converter

The converter can simultaneously transmit 1-16 channels HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.

Feature
> Non-compression coding technology.
> Automatically identify formats of input videos.
> Support 1~16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable.
> DC 5V power supply.
> Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc.
> Through LED indicators to inform its functional mode.
> Industrial wide range of operational temperature.
> Plug and play, simple installation.

Application
> City traffic monitoring system
> Public security, safe city monitoring system
> Highway security protection, charging system
> Building, campus monitoring net
> Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
> Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
> electric power, oilfield, television program transmission system
> Gymnasium (live video, audio transmission)


Feature
Description
Optical
Fiber Type
Multi-mode fiber or Single mode fiber
Fiber Connector
FC/ST/SC
Distance
0~80km (Optional)
Tx
Input level
>500mVp-p
self-adaption cable equilibrium
1080p:75-5 coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance
75Ω
Physical Interface
1/2/4/8 channel BNC connector
Input/Output Impedance
75Ω
Rx
Output level
1Vp-p
Input/Output Impedance
75Ω
Physical Interface
1/2/4/8 channel BNC connector
Data
Transmission Media
Coaxial cable
Baud Rate
1200~9600bit/s
Bit Error Rate
≦10
Operation Mode
Half-Duplex
Indicators
LOS,PWR,DATA,VIDEO
Mean time between failures (MTBF)
>100 000 hours
General
EPS
DC5V
Power Consumption
≦5W
Operation Temperature
-40℃~75℃
Operation Humidity
10%~90%
Atmospheric Pressure
86kpa~106kpa
Mounting Method
Wall-mounted
Detailed Images
Connection
Certificates
Packing & Delivery
BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.
