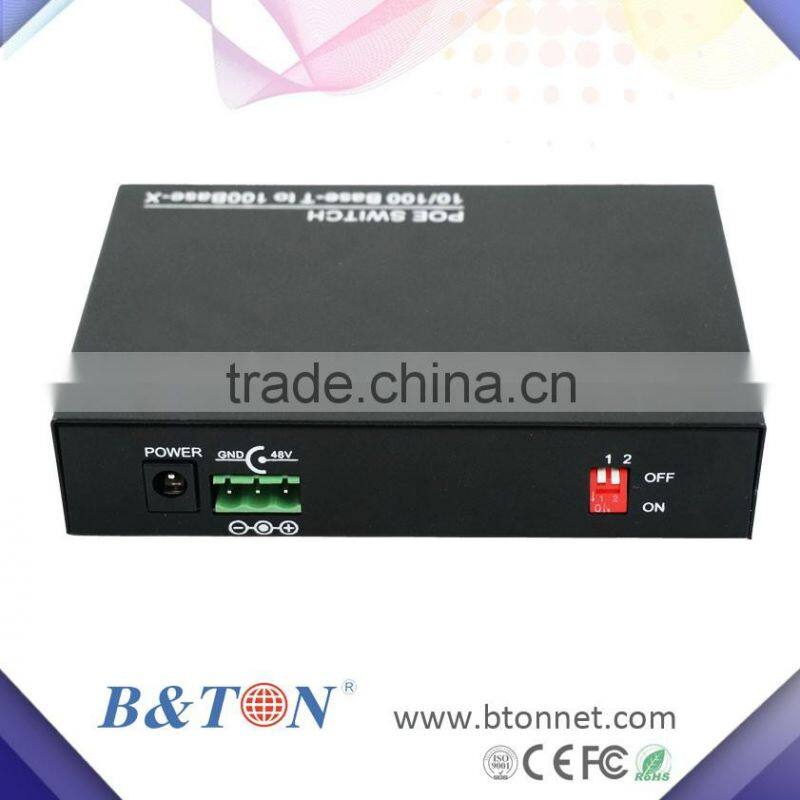

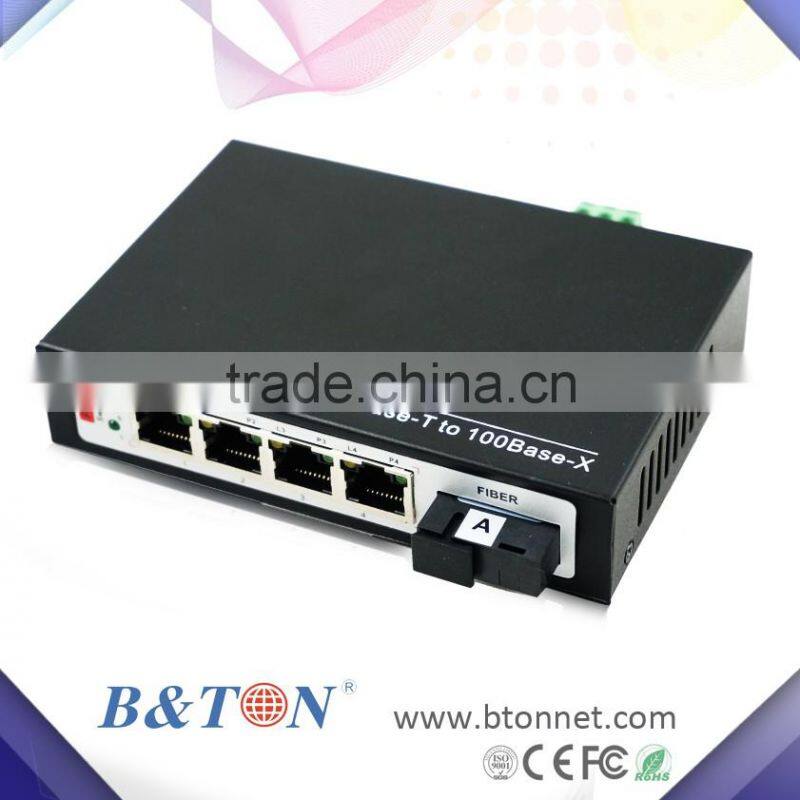

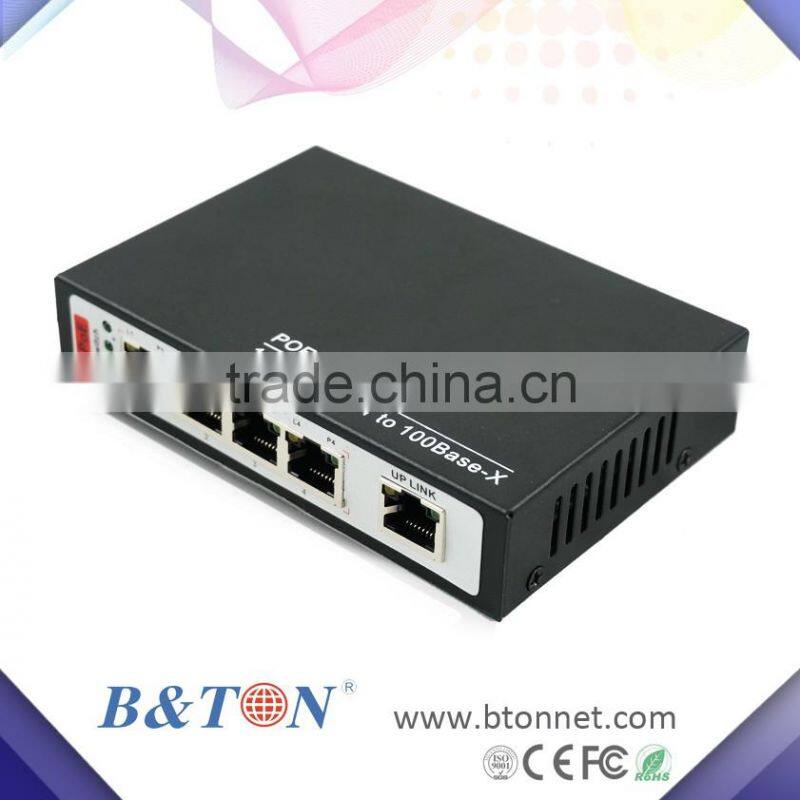

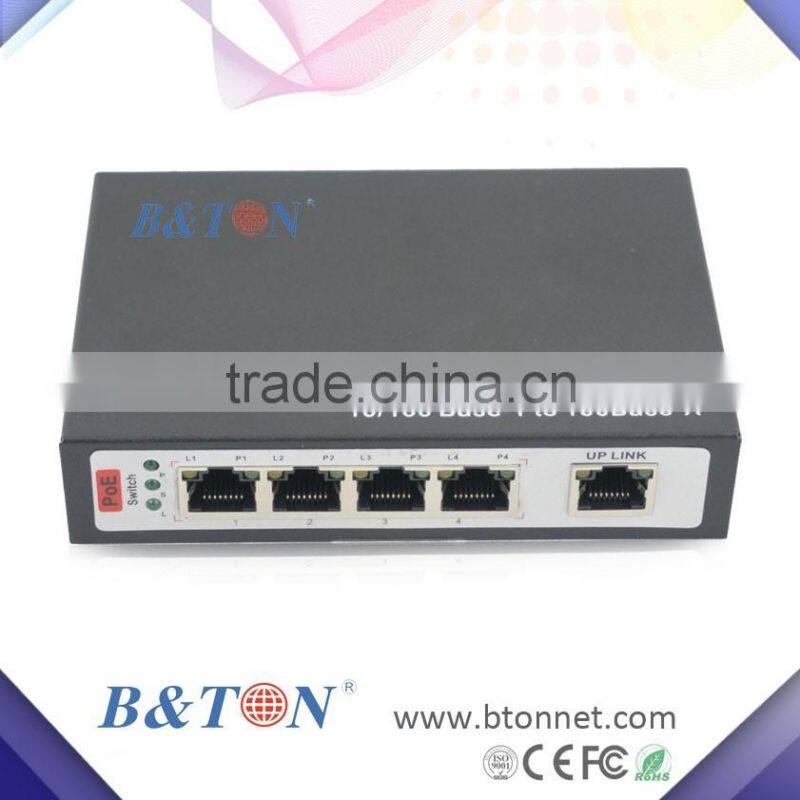

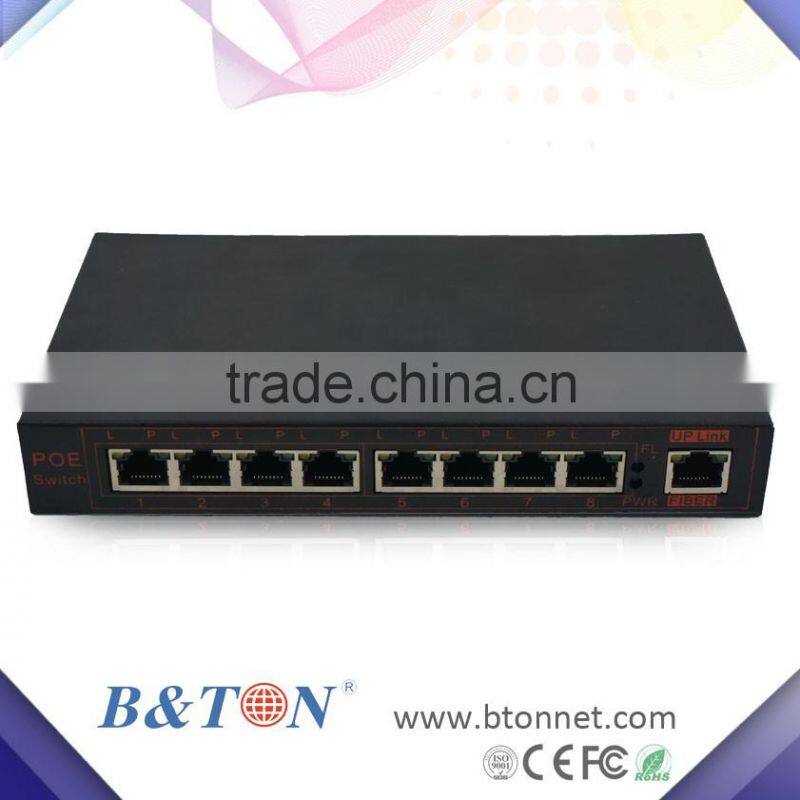

POE Switch DC48V

POE Switch DC48V thumbnail-1
POE Switch DC48V thumbnail-2
POE Switch DC48V thumbnail-3
POE Switch DC48V thumbnail-4
POE Switch DC48V thumbnail-5
POE Switch DC48V thumbnail-6

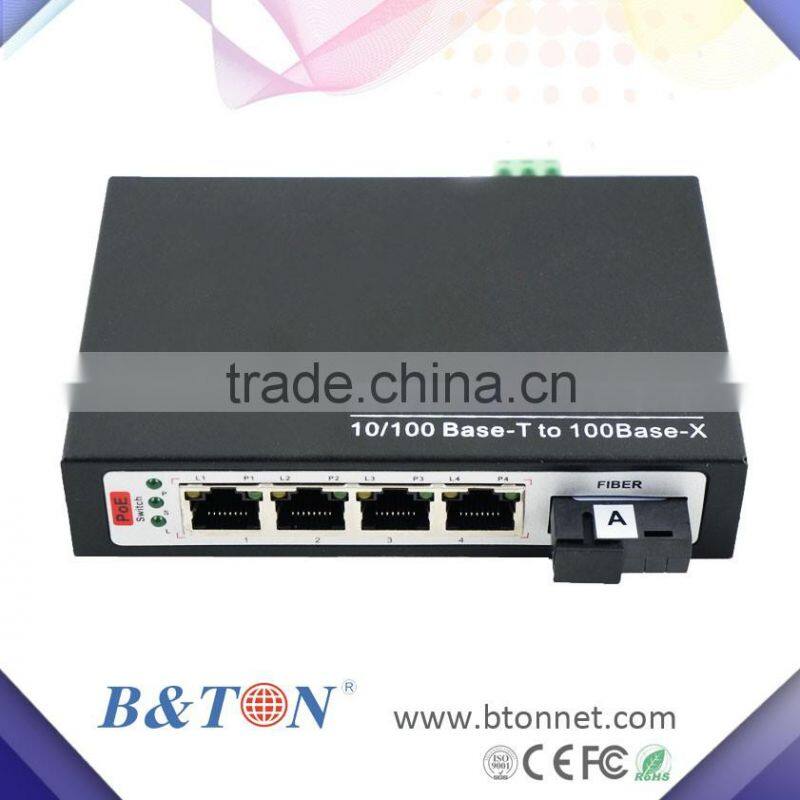

POE Switch DC48V photo-1

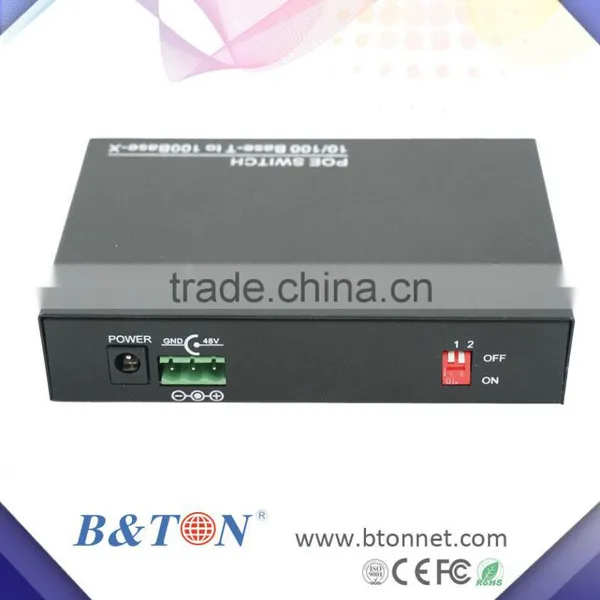

POE Switch DC48V photo-2
POE Switch DC48V photo-3
POE Switch DC48V photo-4

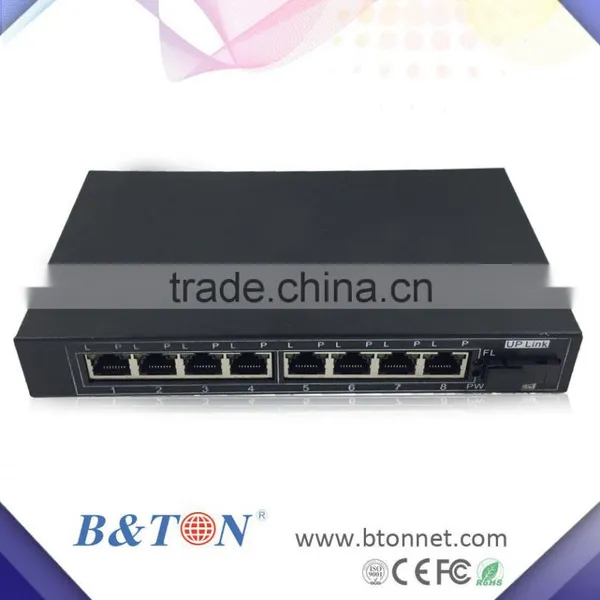

POE Switch DC48V photo-5
POE Switch DC48V photo-6
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
B&TON
Model Number:
BT-P401E
Contact Supplier Request Quote Chat Now
Shenzhen Bton Weiye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name B&TON
Model Number BT-P401E
Product Description

POE Switch DC48V


POE Switch with AF/AT PoE Ports and 1 Up-link
Bandwidth: 1.6Gbps
PoE Line: End-Span(12+,36-)
PoE STD: IEEE802.3af(15.8W),IEEE802.3at(25.5W)
Adapter: 65W(52V/1.25A)

Feature
◆IEEE 802.3af/at power on up to 8/8 ports
◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆5/9 x 10/100Mbps Ports with Auto Uplink
◆Supports PoE power up to 15.8W/25.5W for each PoE port
◆Supports PoE IEEE 802.3af/at compliant PDs
◆Supports IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
◆2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
◆LED indicators for monitoring power, link, activity and speed
◆External power adapter supply

Technical parameter list
Product Name
5/9-Port AF PoE Switch with 8/8 PoE Ports and 1 Uplink
Model
BT-Px01E
Connector Type
4/8x 10/100M Copper POE + 1 Uplink Copper/Fiber
Network Media
10BASE-T: Cat3,8,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth
1.6Gbps (non-blocking)
Address Database Size
1K
MTBF
190,000 hours (about 21 years)
Forwarding Mode
Store-And-Forward
Network Protocols
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af/at DTE Power via MDI; IEEE 802.3af/at
LED Display
System: power supply; Every Port: connecting, PoE working status
Power Supply
Power input: AC100-280V 50/60Hz; (every country use a custom power plug)
PoE Ports
8/8
PoE Port Power
15.8W/25.5W for each POE port
PoE Standard
IEEE 802.3af/at
PoE Feature
All ports support MDI/MDIX
Working Environment
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Certification
CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance
Data transmission distance: 100m
Warranty
1 year warranty(2 yeas warranty for power adapter)
Model
Description
BT-P401Eaf
4port POE,1port 10/100M Ethernet,IEEE802.3af,each port 15.4w,POE power budget 60w, 100meter
BT-P401F-25af
4port POE,1port 100Mbps uplink dual fiber SC port, 25km,IEEE802.3af,each port 15.4w,POE power budget 60w
BT-P401F-25A/Baf
4port POE,1port 100Mbps uplink single fiber SC port, 25km ,IEEE802.3af,each port 15.4w,POE power budget 60w
BT-P401Eat
4port POE,1port 10/100M Ethernet,IEEE802.3at,each port 25.5w,POE power budget 120w, 100meter
BT-P401F-25at
4port POE,1port 100Mbps uplink dual fiber SC port, 25km,IEEE802.3at,each port 25.5w,POE power budget 120w.
BT-P401F-25A/Bat
4port POE,1port 100Mbps uplink single fiber SC port, 25km,IEEE802.3at,each port 25.5w,POE power budget 120w
BT-P801Eaf
8port POE,1port 10/100M Ethernet,IEEE802.3af,each port 15.4w,POE power budget 60w, 100meter
BT-P801F-25af
8port POE,1port 100Mbps uplink dual fiber SC port, 25km,IEEE802.3af,each port 15.4w,POE power budget 60w
BT-P801F-25A/Baf
8port POE,1port 100Mbps uplink single fiber SC port, 25km ,IEEE802.3af,each port 15.4w,POE power budget 60w
BT-P801Eat
8port POE,1port 10/100M Ethernet,IEEE802.3at,each port 25.5w,POE power budget 120w, 100meter
BT-P801F-25at
8port POE,1port 100Mbps uplink dual fiber SC port, 25km,IEEE802.3at,each port 25.5w,POE power budget 120w.
BT-P801F-25A/Bat
8port POE,1port 100Mbps uplink single fiber SC port, 25km,IEEE802.3at,each port 25.5w,POE power budget 120w
Detailed Images
Packing & Delivery
Connection

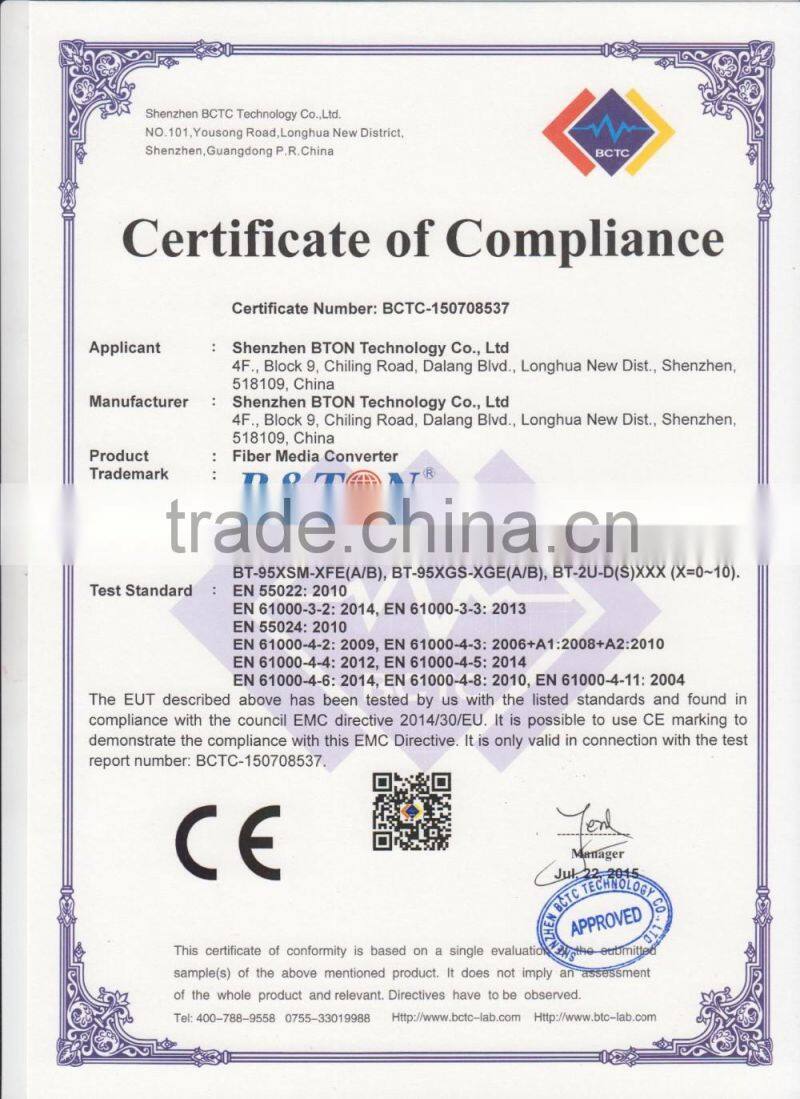

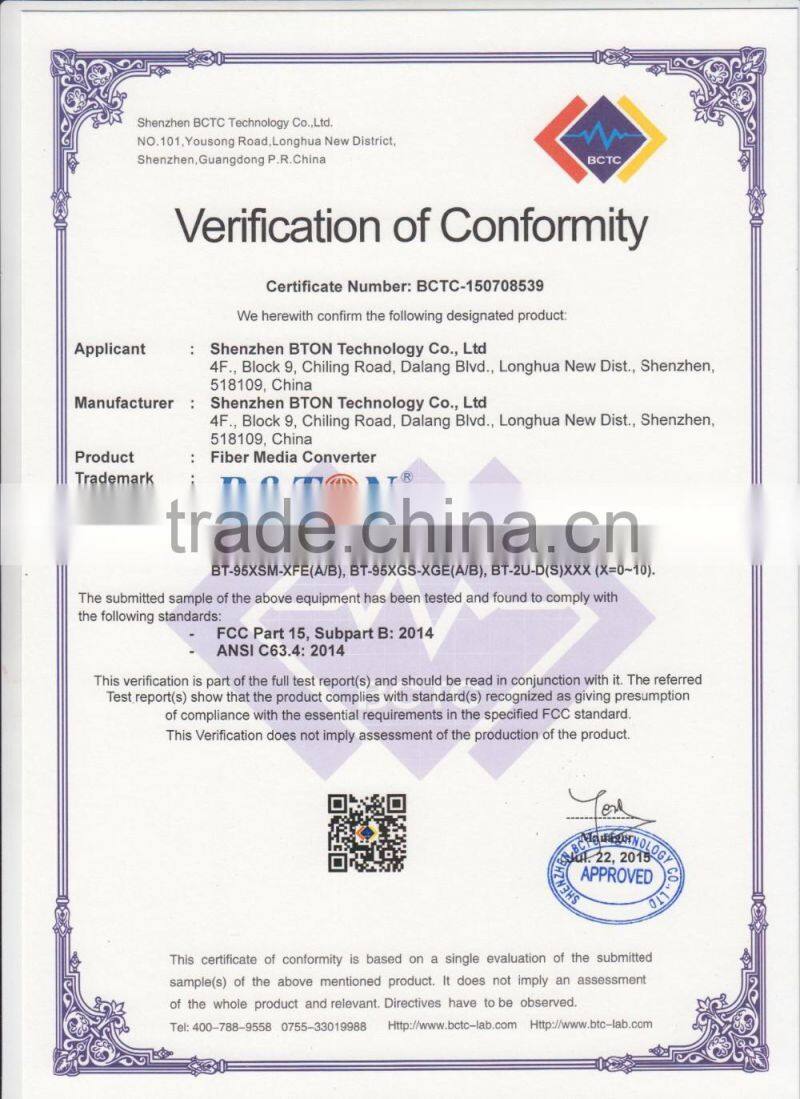

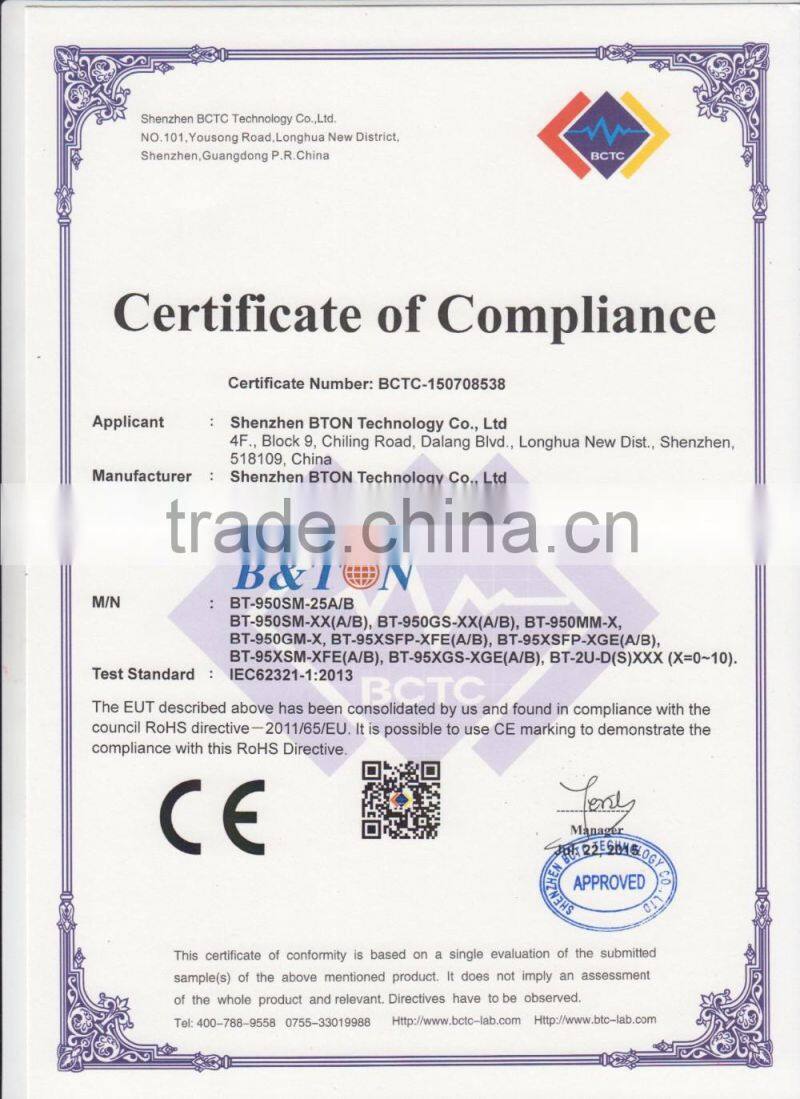

Certifications
BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.


CIOE

The China International Optoelectronic Exposition.

CPSE

The China Public Security Expo

Convergence India

2016
