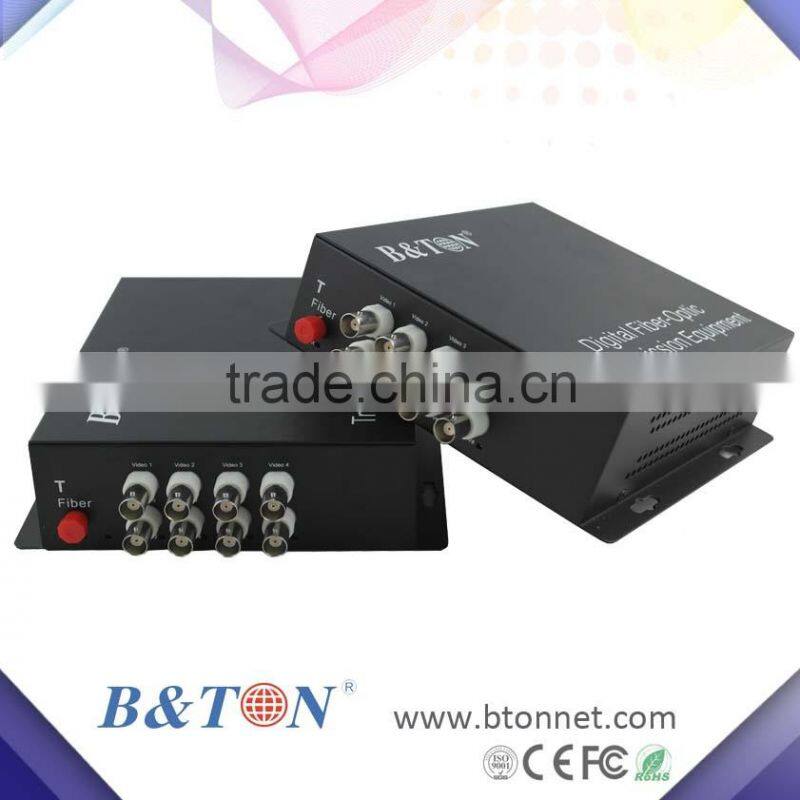

1~16channel HD-SDI Unidirectional Fiber Optic Transmitter/Receiver
19.4Mbps to 1.485Gbps, Unidirectional HD-SDI with Embedded Audio Fiber Optic Transmission

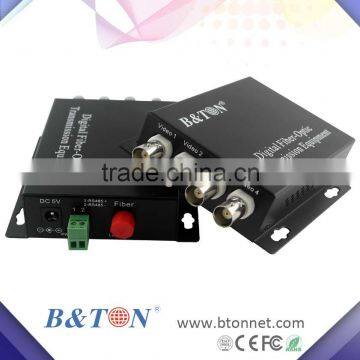

HD-SDI to Fiber Converter

Description
The HD-SDI Video Converter could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.

Features
* 1/2/4/8/16ch unidirectional HD-SDI video with 1-ch embedded audio + 1-ch reversed RS485 ( terminal block) over one fiber
* Range from 19.4Mb/s to 1.485Gb/s
* SMPTE 292M (1.485Gb/s) clock recovery
* Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
*Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
* Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
* 150m automatic cable equalization, all the 1.485 Gb/s rate below（Belden 1694A）
* Optional network management system
* LED status indicators monitor the critical parameters

Applications
* Remote OB Van/Truck Video Feeds
* Broadcast Studio Camera Feeds
* Long-haul Signal Transport
* TV station/video conference
* Lecture Hall Projector Connectivity
* Medical/Surgical Room Broadcast
* Building to Building video conference calling
* Small corporate campus video links

Serial TV BNC Input
TV signal standard	SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate(19.4Mb/s - 1.485Gb/s)
Input channel	1/2/4/8/16
Reflection loss	>15DB
Equilibrium	0-150m @ 1.485Gb/s
Connector	75Ω BNC
Serial TV BNC Output (EO/OE)
Output channels	1/2/4/8/16
Signal level	800mV nominal
Rise/fall time	200Ps nominal
Overshoot	<10% amplitude
Reflection loss	> 15dB
Jitter	< 0.2UI
Connector	75Ω BNC
Audio
Channel	Optional
Input/output level	2Vp-p max
Total harmonic distortion	≤1%
Audio encoding	24-bit
Bandwidth (-3 dB)	20~15 KHz
Input/output impedance	100KΩ (600Ω optional)
Differential gain	≤1.5%
Differential phase	≤1°
Weighted SNR	≥70 Db
Connector	Terminal Block/XLR/RCA
Data
Channel	optional
Data format	RS232，RS-485, RS422 (full/half duplex) and support NRZ, RZI and Manchester
Data rate	DC to 100 Kb/s
Mode	Full/half duplex
Connector	wire connecting terminal
Ethernet
Channel	1 RJ45
Bandwidth	10Mbps/100Mbps
Optic Output
Channel	Optional
Type	Single-mode/fiber (multimode optional)
Wavelength	1310nm /1550nm
Reflection loss	> 15dB
Jitter	< 0.2UI
Connector	FC/PC（SC/PC optional）
Power and environmental indicator
Operating temperature	-45℃～＋50℃
Pressure	1A@12VDC
Power	12W
EMI/RFI	FCC Part 15 Class A, EU EMC standard
Average time trouble-free	>100000 hours
Other
Stand alone Dimension	173mm (H) ×276mm (D) ×40.6mm (W)
Weight	2Kg

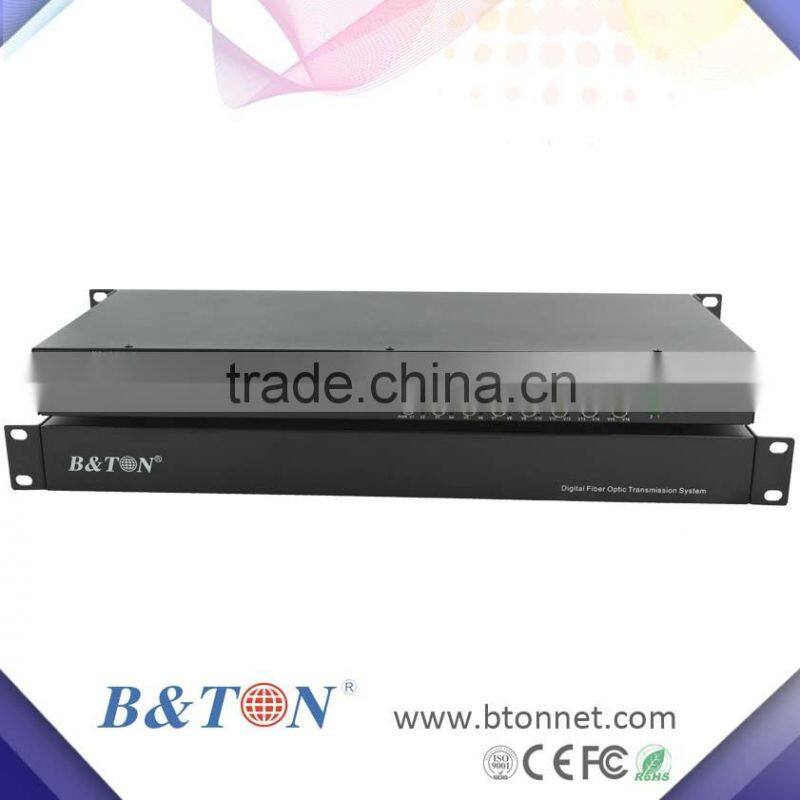

1U rack mount	Optional

Ordering Information
Model	Description(single mode, single fiber, FC, BNC, 20km transmitter and receiver)
BT-SDI1VF-T/R	1ch HD-SDI/ASI with embedded audio
BT-SDI1V1DF-T/R	1ch HD-SDI/ASI with embedded audio,1ch reverse RS485
BT-SDI2VF-T/R	1ch HD-SDI/ASI with embedded audio
BT-SDI2V1DF-T/R	2ch HD-SDI/ASI with embedded audio,1ch reverse RS485
BT-SDI4VF-T/R	1ch HD-SDI/ASI with embedded audio
BT-SDI4V1DF-T/R	4ch HD-SDI/ASI with embedded audio,1ch reverse RS485
BT-SDI8VF-T/R	1ch HD-SDI/ASI with embedded audio
BT-SDI8V1DF-T/R	8ch HD-SDI/ASI with embedded audio,1ch reverse RS485
BT-SDI16VF-T/R	1ch HD-SDI/ASI with embedded audio
BT-SDI16V1DF-T/R	16ch HD-SDI/ASI with embedded audio,1ch reverse RS485

Detailed Images

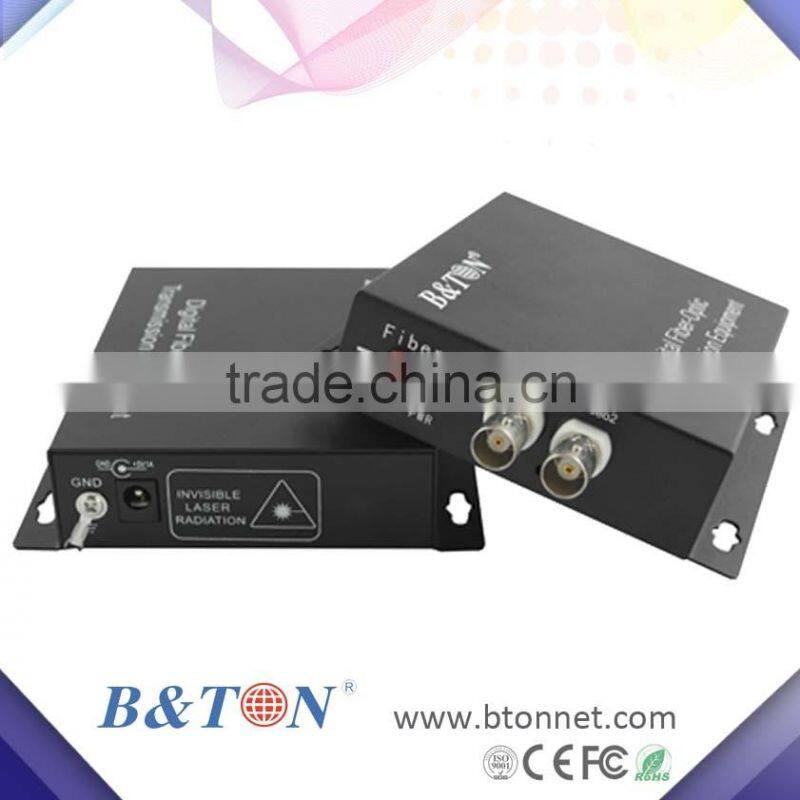

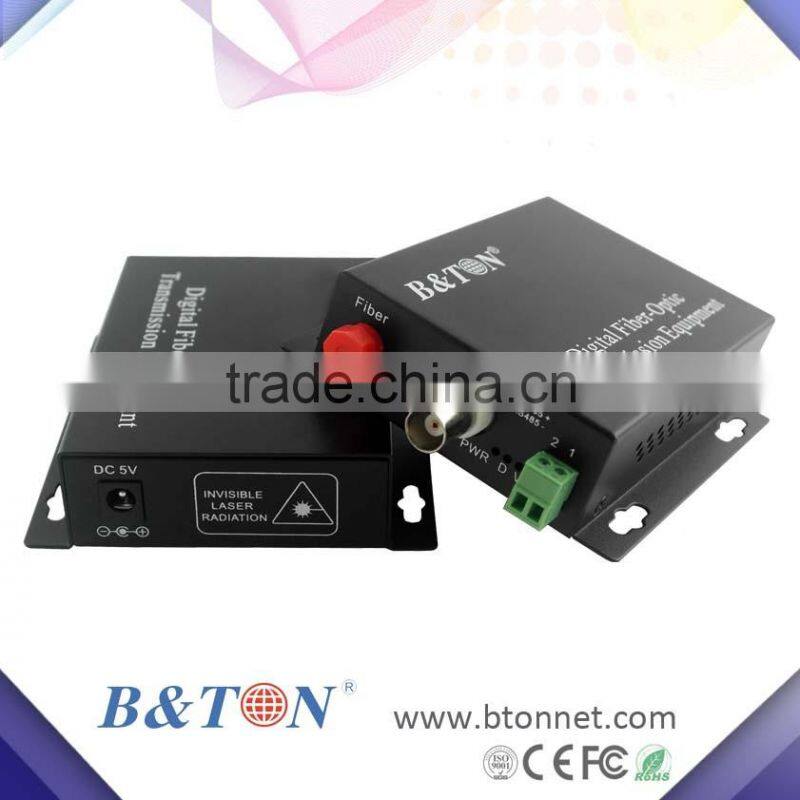

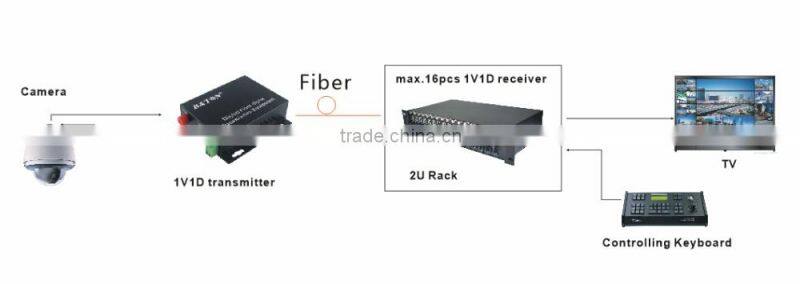

Connection

Certificates

Packing & Delivery

BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.
