Ethernet to Fiber Switch

Ethernet to Fiber Switch thumbnail-1
Ethernet to Fiber Switch thumbnail-2
Ethernet to Fiber Switch thumbnail-3
Ethernet to Fiber Switch thumbnail-4
Ethernet to Fiber Switch thumbnail-5
Ethernet to Fiber Switch thumbnail-6
Ethernet to Fiber Switch photo-1
Ethernet to Fiber Switch photo-2
Ethernet to Fiber Switch photo-3
Ethernet to Fiber Switch photo-4
Ethernet to Fiber Switch photo-5
Ethernet to Fiber Switch photo-6
US$ 5 - 50 MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
B&TON/OEM
Model Number:
BT-950
Contact Supplier Request Quote Chat Now
Shenzhen Bton Weiye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name B&TON/OEM
Model Number BT-950
Product Description

B&TON Fiber Switch
The fiber switches are unmanageable,when convert transmission,all ports share the same data. They can extend the network transmission from 100m to 120km and can realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.Plug and play design makes easy installation, no on-site adjustment. Operation status can be monitored through a set of Diagnostic LED.

Features
In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
Hot Plug-gable & Wall-Mountable.
Stable performance more than 50thousand hours with fault-free.
Unique IC solution applied.
Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
Auto MDI/MDI-X.
Auto Negotiation.
Support flow control.
Stable performance more than 50 thousands hours with fault-free.
In conformity with safety code of FCC, CE and RoHS.


Application
Extend your Ethernet connection up to 0~120km away using fiber optics
Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

Optical Interface
Connector
1x9 SC/FC/ST/LC
Data Rate
100Mbps, 1000Mbps
Duplex Mode
Full duplex
Fiber
MM 50/125um,62.5/125um;SM 9/125um
Distance
100Mbps:
MM 2km,SM 25/40/60/80/100/120km
1000Mbps:
MM 550m/2km,SM 20/40/60/80km
Wavelength
MM 850nm,1310nm
SM 1310nm,1550nm
WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)
WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side)
UTP Interface
Connector
RJ45
Data Rate
10/100Mbps, 10/100/1000Mbps
Duplex Mode
Half/full duplex
Cable
Cat5,Cat6
Power Input
Adapter Type
DC5V
Power Built-in Type
AC100~240V
Power Consumption
＜3W
General
Temperature
0~50℃ Operating; -40~70℃ Storage
Humidity
5~95%(no condensing)
MTBF
≥10.0000h
Certification
CE,FCC,RoHS
Part Number
Description
BT-912SM-20
10/100M Dual Fiber, 1Fiber and 2RJ45 ports
BT-912SM-20A/B
10/100M Single Fiber, 1Fiber and 2RJ45 ports
BT-914SM-20
10/100M Dual Fiber, 1Fiber and 4RJ45 ports
BT-914SM-20A/B
10/100M Single Fiber, 1Fiber and 4RJ45 ports
BT-918SM-20
10/100M Dual Fiber, 1Fiber and 8RJ45 ports
BT-918SM-20A/B
10/100M Single Fiber, 1Fiber and 8RJ45 ports
BT-923SM-20
10/100M Dual Fiber, 2Fiber and 3RJ45 ports
BT-923SM-20A/B
10/100M Single Fiber, 2Fiber and 3RJ45 ports
BT-928SM-20
10/100M Dual Fiber, 2Fiber and 8RJ45 ports
BT-928SM-20A/B
10/100M Single Fiber, 2Fiber and 8RJ45 ports
BT-928SM-20
10/100M Dual Fiber, 8Fiber and 8RJ45 ports
BT-928SM-20A/B
10/100M Single Fiber, 8Fiber and 8RJ45 ports
BT-912GS-20
10/100/1000M Dual Fiber, 1Fiber and 2RJ45 ports
BT-912GS-20A/B
10/100/1000M Single Fiber, 1Fiber and 2RJ45 ports
BT-914GS-20
10/100/1000M Dual Fiber, 1Fiber and 4RJ45 ports
BT-914GS-20A/B
10/100/1000M Single Fiber, 1Fiber and 4RJ45 ports
BT-918GS-20
10/100/1000M Dual Fiber, 1Fiber and 8RJ45 ports
BT-918GS-20A/B
10/100/1000M Single Fiber, 1Fiber and 8RJ45 ports
BT-922GS-20
10/100/1000M Dual Fiber, 2Fiber and 2RJ45 ports
BT-922GS-20A/B
10/100/1000M Single Fiber, 2Fiber and 2RJ45 ports
BT-924GS-20
10/100/1000M Dual Fiber, 2Fiber and 4RJ45 ports
BT-924GS-20A/B
10/100/1000M Single Fiber, 2Fiber and 4RJ45 ports
BT-928GS-20
10/100/1000M Dual Fiber, 2Fiber and 8RJ45 ports
BT-928GS-20A/B
10/100/1000M Single Fiber, 2Fiber and 8RJ45 ports
Detailed Images

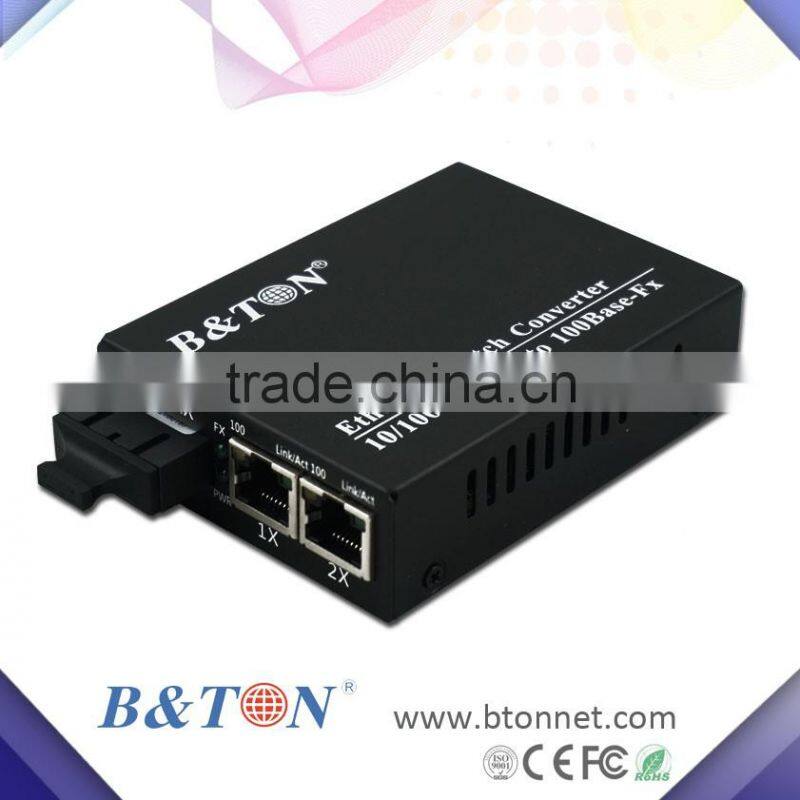

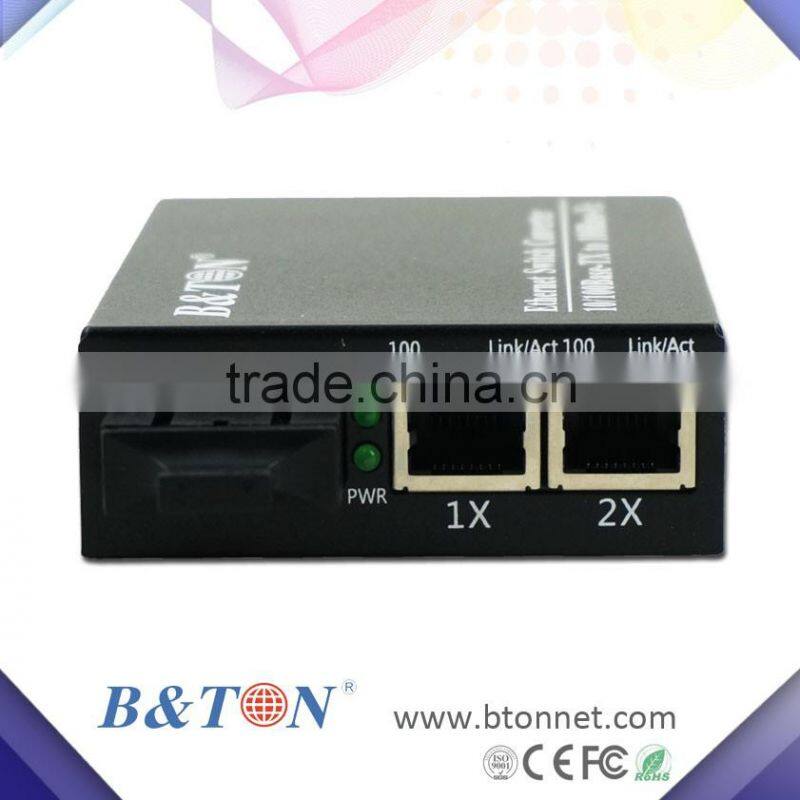

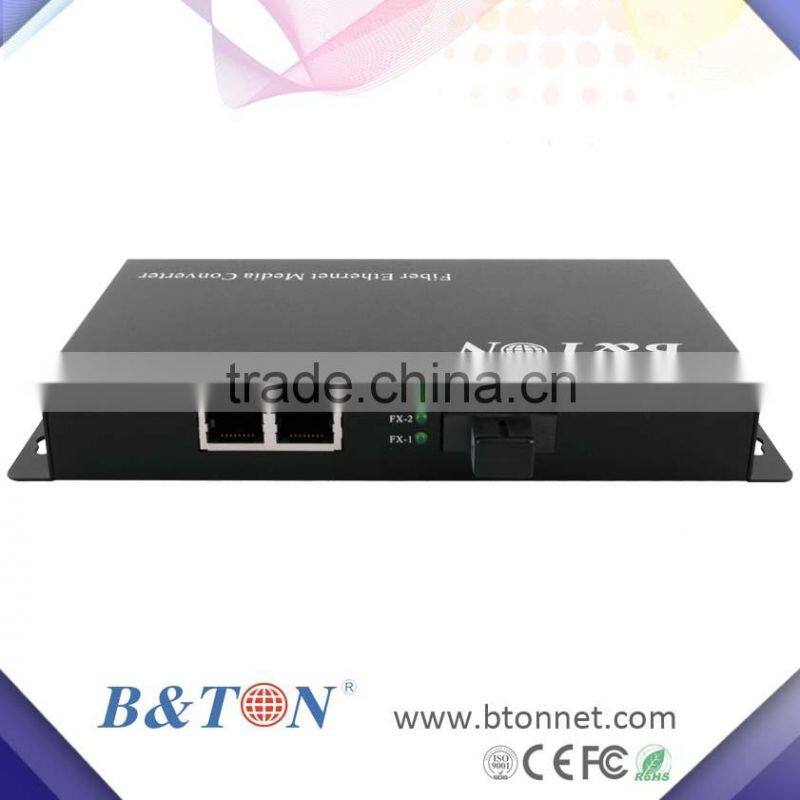

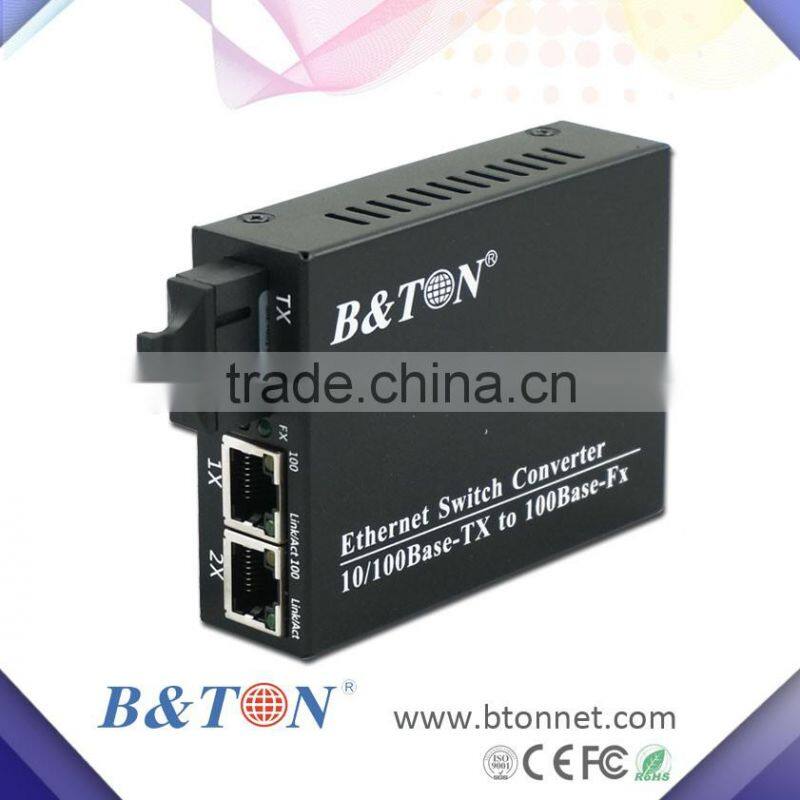

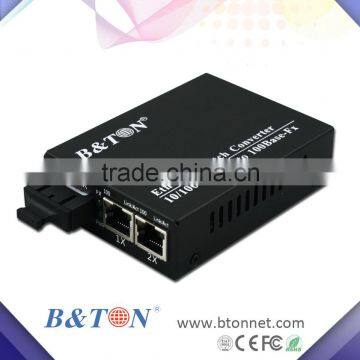

1Fiber + 2RJ45 Fiber Switch

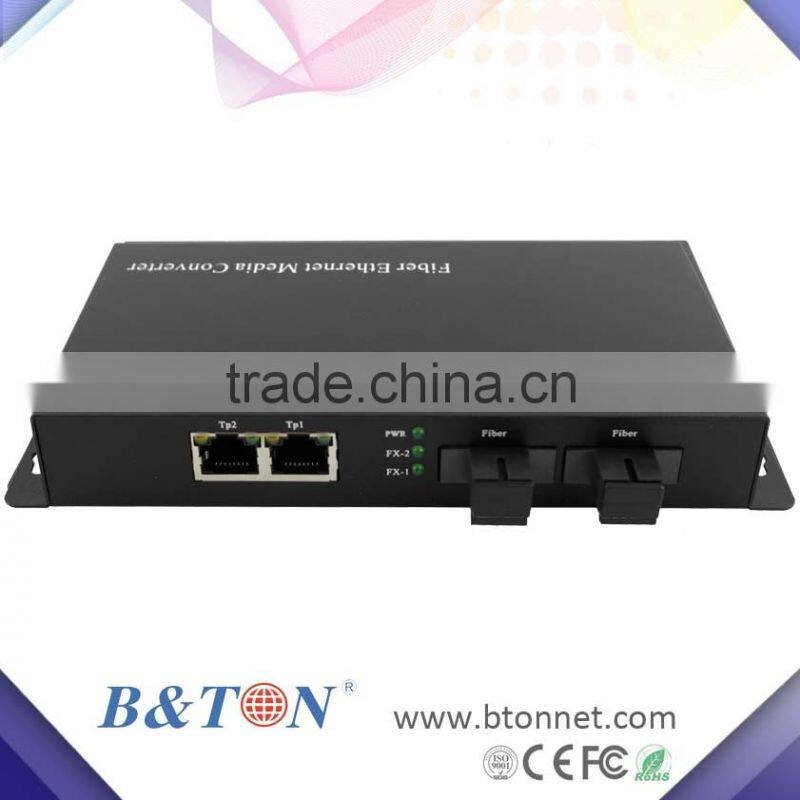

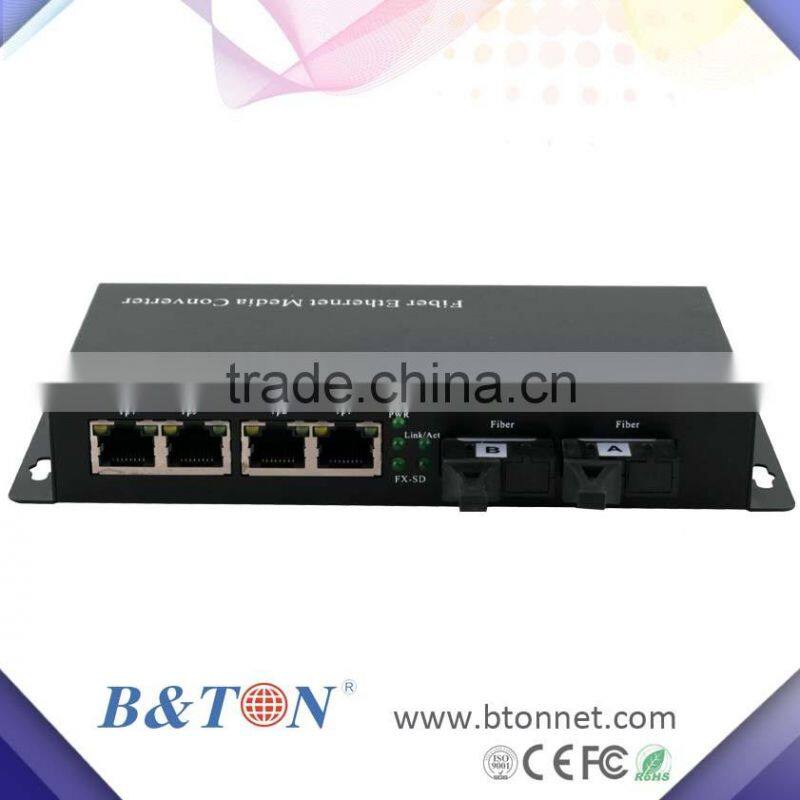

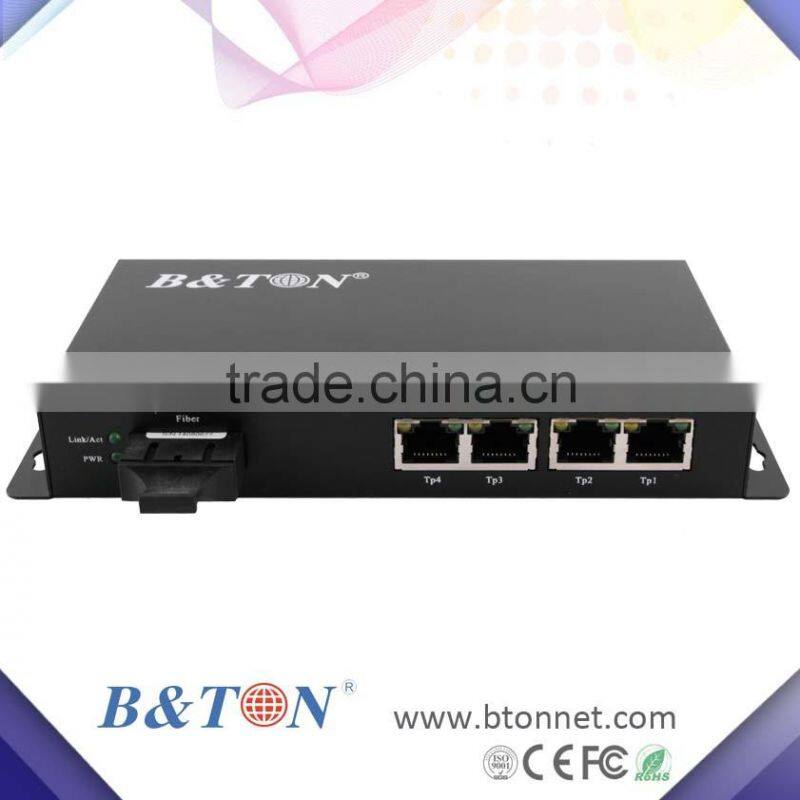

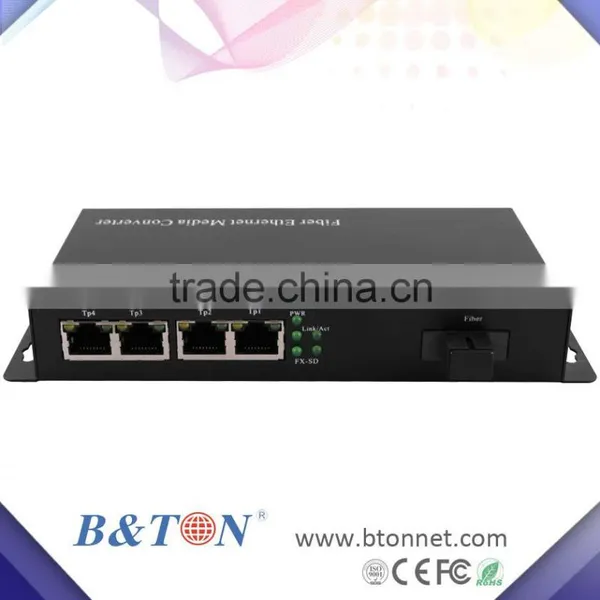

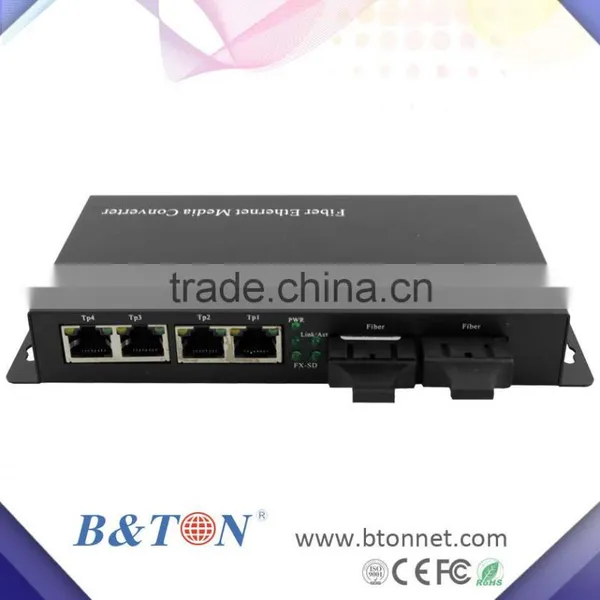

1Fiber+4RJ45                             2Fiber+2RJ45                             2Fiber+4RJ45                              2Fiber+8RJ45

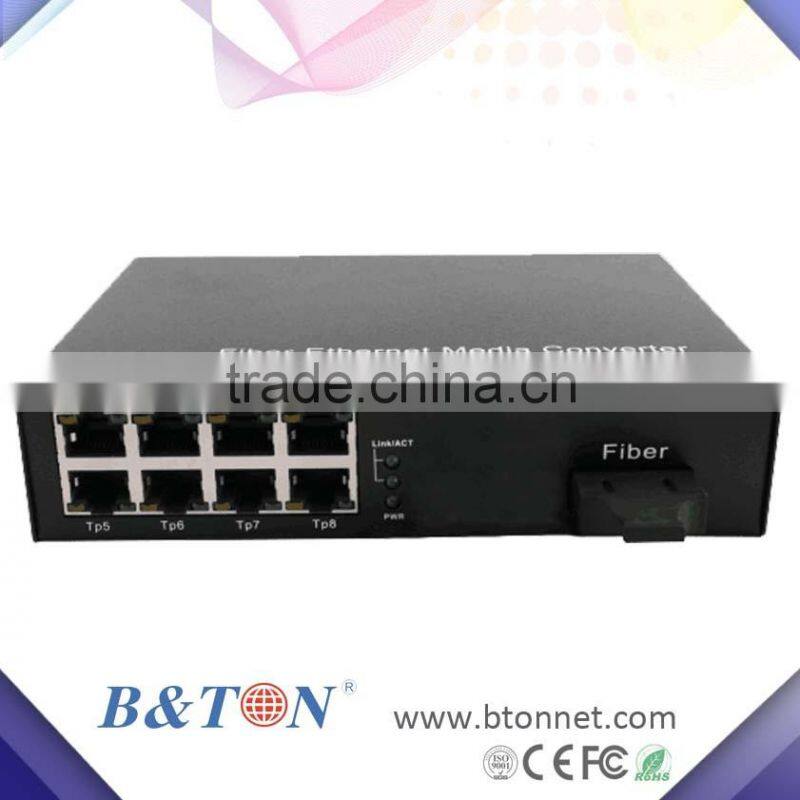

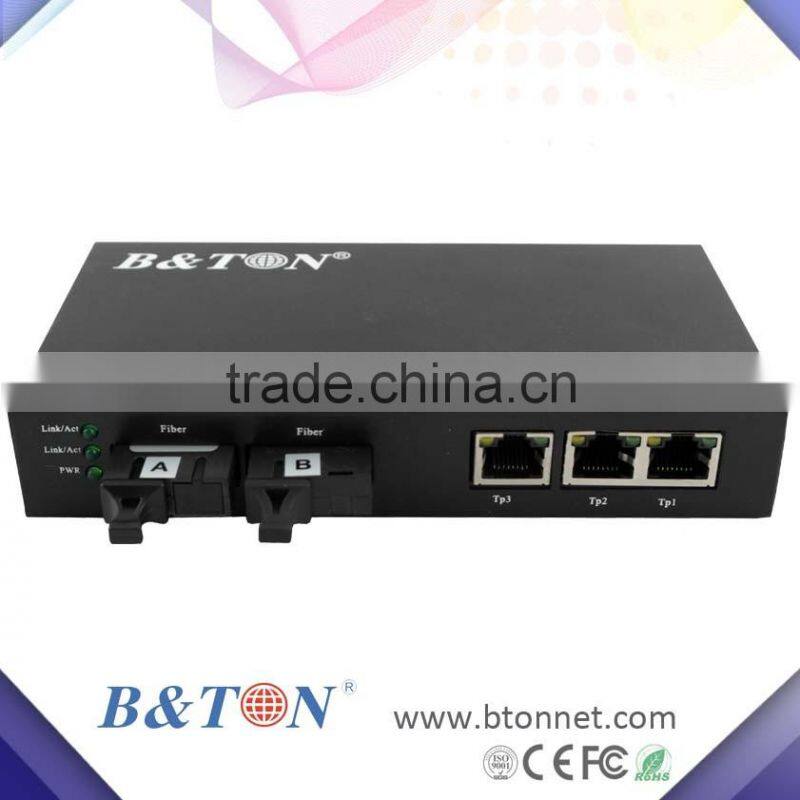

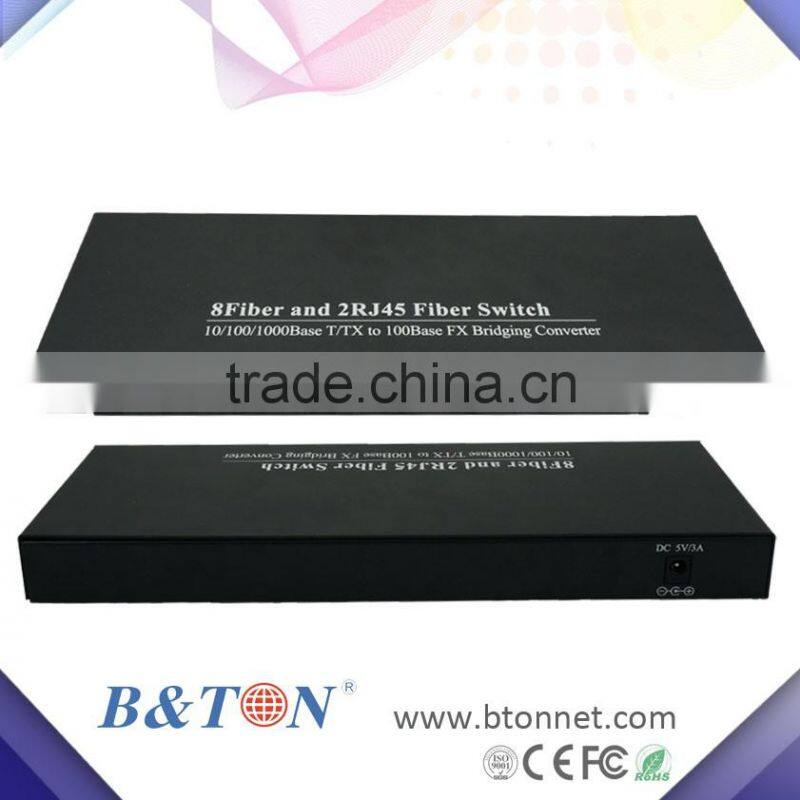

2Fiber+3RJ45                             1Fiber+8RJ45                           1Fiber+2RJ45 Gigabit              8Fiber+2RJ45

Connection

Network Fiber Transmission Solution

Digital Video Fiber Transmission Solution

Certificates
Packing & Delivery
BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.
