DPB-140E Flat Plate Auto Blister Packing Machine

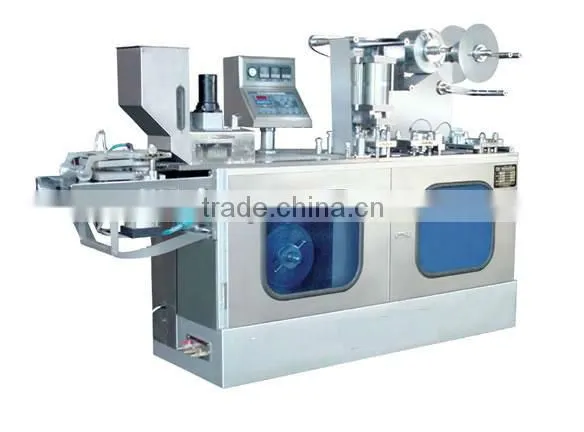

DPB-140E Flat Plate Auto Blister Packing Machine photo-1
US$ 1 - 11,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
sunhang
Model Number:
DPB-140E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name sunhang
Model Number DPB-140E
Dimension(L*W*H) 2300x560x1400mm
Weight 600KGS
Certification GMP
Condition New

Specifications

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

DPB-140E Flat Plate Auto Blister Packing Machine

It is the latest product designed specially for middle and small sized pharmacy factory,dosage room of hospital,health care factory.It is adopted with micro-computer PLC,touch panel operation,frequency converter,adjustable edition space convenience of operation,novel structure,full purpose function,long durability,it is the ideal packaging equpment  at present,and got well popularty. The product passed the provincial science and technology appraisal.Feature:
The main transmission is adopted with swinging pin-wheel,long life,lower noise,and stable runninging.
Adjustable stroke,It can be suited for the packing of various print plates,specially,small batch and many kinds.Flat plate structure,some special shape can be packed,such as; elliptic shape,square shape,triangle shape etc.
Not1 It can be added opposite sealing device with cursor trace.
   2 It can be added ink-jet printer according to the requirement of user.

Main Technical Parameterses:

Cutting frequency(Times/min)

6-35

Capacity(10 thous pics/h)

2-11

Max.forming area and depth(mm)

140*110*14

Stroke(mm)

40-120(Manufactred as user's reqiremments)

Standard sheet(mm)

80*57(Manufactred as user's reqiremments)

Air Pressure(Mpa)

0.4*0.6 air supply>=0.2m3/min

Total power

380V/220V  500Hz  3.6kw

Power(kw)

1.1

PVC hard pieces(mm)

0.15-0.5*140

PTP Aluminum foil(mm)

0.02-0.035*140

Dialysis Paper(mm)

50-100g*140

Mould cooling

tap water or bace water

Overall dimensions(mm)

2300*560*1410(L*W*H)

Weight(kg)

600





 DPB-140E Flat Plate Auto Blister Packing Machine
