DPP140 Plate Type Total Travel Adjustable Blister Packing Machine

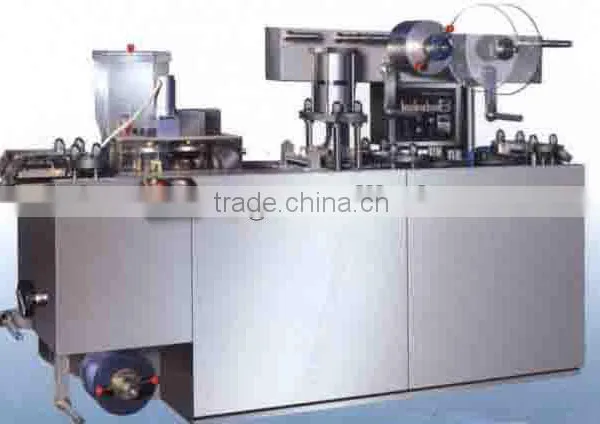

DPP140 Plate Type Total Travel Adjustable Blister Packing Machine photo-1
US$ 1 - 11,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
36000-72000pieces/h
Control Mode:
Full Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 36000-72000pieces/h
Control Mode Full Automatic
Place of Origin China
Brand Name sunhang
Model Number DPP140
Dimension(L*W*H) 2200*700*1700MM
Weight 750KGS
Certification GMP

Specifications

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

DPP140 Plate Type Total Travel Adjustable Blister Packing Machine



This kind of machine is specially designed for pharmaceutical factories. It is characterized by novel outline, convenience of operation, complete performances, and adjustable travel, simpleness of molds. It gets credit for products of high quality.

The main process such as heating, pressure forming, double feeding, hot sealing, batch number, impressing disjunction line, counting and cutting are automatically completed continuously. It can be designed to do super depth blister packing (e.g. big honeyed pill) according to user’s requirements and also line mesh hot-sealing. It has smoothed a visual process. It is suitable for blister packing for various capsules, tablets and other medicines.



Specifications:

Cutting frequency

40-80plates/min

Productivity

36000-72000pieces/h

Max. Forming area

130mm*100mm

Max. Forming depth

18mm

Adjusting range of travel

40mm-110mm

Size of standard plate

80*57mm

Width and thickness of PVC and PTP Alum Foil

PVC140*0.25-0.5mm PTP140*0.02-0.03mm

Power supply

Main motor 1.1kw, heating power 2.4kw

Power

220V 50Hz

Overall size

2020*650*1400

Size of encasement

2200*700*1700

Weight

750kg
