Specifications

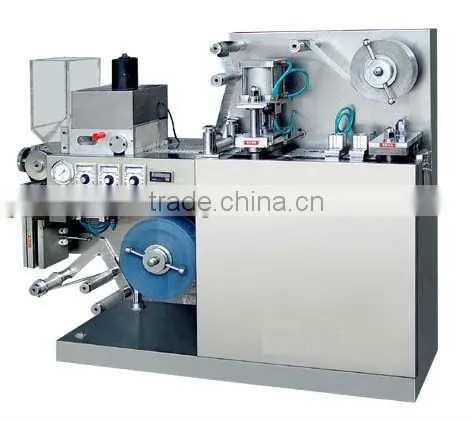

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.DPB70 Mini Al/PL Blister Packing Machine
Flat Plate Automatic Blister Packaging Machine is specially developed for dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. Pressed to mold, this machine is flat plate structure and convenient to operate. The dimension is small and the stroke length is adjustable. It suits for aluminum plastic package for any shape of objects, such as capsule, tablet, pellet, sugarcoated tablet, leisure candy, milk tablet, mini metal etc.
Main Technical Specifications:
Punching Frequency: 35 Times/min
Production Capacity: 11,000- 65,000pcs/h
Max shaping areas and depth: 60×100×14mm
Stroke: 40- 110mm
Air Pressure: ≥0.3Mpa (provided by user) oil-free compressor better
Air Pressure: 0.4Mpa
Standard sheet: 80x57mm(Manufactured as user's requirements)
Total Power: 380V/220V 50Hz 2.8kw
PVC hard pieces: 0.250- 0.35×70mm
PTP(Aluminum Foil): 0.022- 0.035×70mm
Mould Cooling: Tap water or circulating water
Overall size: 1300x400x1070(LxWxH)
Weight: 220kg
