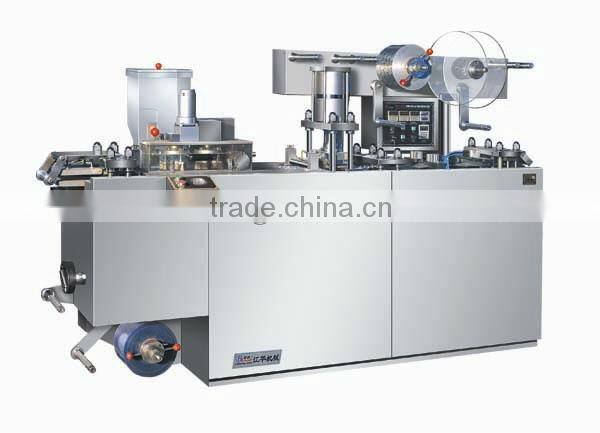

DPP140D Blister Packing Machine

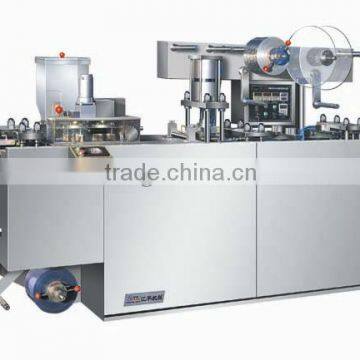

DPP140D Blister Packing Machine photo-1
US$ 1 - 11,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
sunhang
Model Number:
DPP140D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name sunhang
Model Number DPP140D
Dimension(L*W*H) 2200X700X1500
Weight 1000KGS
Certification GMP
Condition New

Specifications

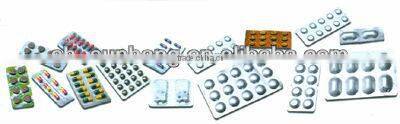

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.


Packaging & Shipping



 DPP140D Blister Packing Machine



Samples:



Product Description



This kind of machine is the newest product which specially designed for pharmaceutical factories.It is characterized by novel outline,convenience of operation,complete performancesAdjustable travel,simpleness of changing of molds.It gets credit for products of high quality.



The main process such as heating,pressure forming,double feeding,hot-sealing,batch number,impressing disjunction line,counting and cutting are automatically completed continuously.It can be designed to do super depth blister packing (egBig honeyed pill) according to user's requirements and also line mesh hot-sealing.It has smooth and visual process. It is suitable for blister packing for various capsules,tablets and other medicines.







Specifications:



Cutting frequency40-80 plates/min



Productivity 36,000-72,000 pieces/h



Max. forming area130mm×100mm



Max. forming depth18mm



Adjusting range of travel40mm-110mm



Size of standard plate80×57mm



Width and thickness of PVC and PTP Alum FoilPVC140×0.25-0.5mm PTP140×0.02-0.03mm



Power supply220V 50HZ



PowerMain motor 0.75kw, heating power 2.4kw



Overall size2020×650×1400



Size of encasement2200×700×1700



Weight1000KG



 DPP140D Blister Packing MachineDPP140D Blister Packing Machine
