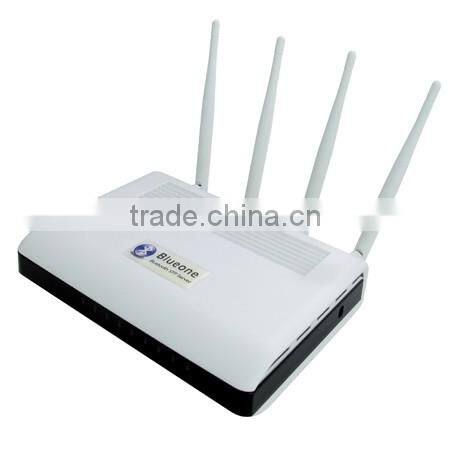

ARM920T processor Linux Bluetooth Sensor Bluetooth Access point

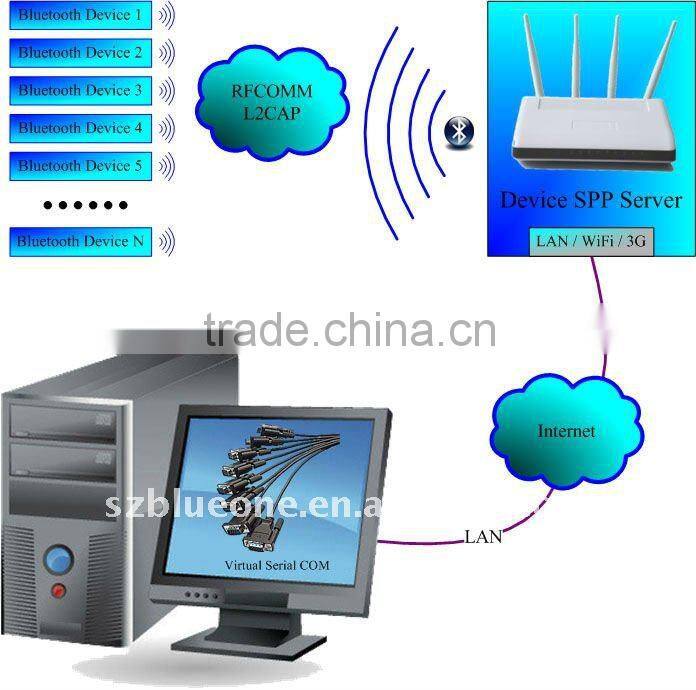

The BSP1000 is an industrial wireless Bluetooth AP designed to collect data from each Bluetooth terminal and transmit these data to management station (Server/computer ) via the 10/100 Base-T Ethernet network or WiFi, so you can monitor real-time data of each Bluetooth terminal and manage these devices remotely.
It adopts ARM920T processor, basic frequency 400MHz, flash 1GByte Nand and RAM 64MByte. BSP1000 can support 7/14/21/28 SPP connections. It is Linux OS with one 10M/100M LAN port and two USB2.0 HOST ports.
Key Features:
| Linux built-in |
| Connect Bluetooth Devices to 10/100M Ethernet |
| Supports up to 3Mbps data rate |
| Ideal Wireless solution for the replacement of the wired multi-port serial card |
| 7/14/21/28 Bluetooth connections support |
| Supports Bluetooth profiles for Serial Port, |
| COM port redirector support |
| Flexible TCP/UDP host mode support: multiple host connction/data transfer |
| Support RFC 2217, Telnet COM port control protocol |
Truck/Bus monitoring system |
| Car Diagnostic |
| Wireless POS system |
| Wireless Factory monitor PLC programming |
| Wireless machine(healthcare/industrial) Monitoring |
| Wireless Printing |
| Wireless Logistic |
Model No. | BSP1000B | BSP1000C | BSP1000D | |
Bluetooth | SPP connections | 14 | 21 | 28 |
Bluetooth version | Bluetooth 2.0+EDR | |||
Frequency | 2.4G | |||
Speed | 3Mbps | |||
Bluetooth standard | Class 1 | |||
Transmission Distance | 100-200 meters | |||
Emission power | 19.5DB | |||
Sensitivity | -103DB | |||
Antenna Gain | 7dBi | |||
Network | Interface | One RJ45 | ||
Protection | 2KV Isolation | |||
Data rate | 10M/100M adaptor | |||
Protocols | IP/TCP/UDP/DHCP/DHCPD/DNS/HTTP/SNMP | |||
System | Processor | Embedded MIPS24KEc | ||
Working frequency | 580Mhz | |||
Management | VSPP service and configure software | |||
Firmware upgrade | Via LAN/ WiFi | |||
AC/DC | Input Voltage | DC 9~28V | ||
Power | 1A/12V | |||
Operation Environment | Operating | -20~80℃ | ||
Storage | -30 ~85℃ | |||
Humidity | 5 - 95%RH | |||
Physical | Dimension(LxWxH) | 21*16.5*4cm | ||
Material | ABS plastic | |||
Weight( packing) | 1.5KG | |||
WiFi | Frequency | 2.4G | ||
Interface | SMA RF Antenna | |||
Transmission power | +16.5 DB (802.11n) | |||
Sensitivity | -75DB (802.11n) | |||
Encryption | WPA/WPA2 TKIP/AES | |||
Transmission Distance | 200 meters | |||
Work Mode | Station/AP | |||
Other | Certificates | CE/FCC/RoHS | ||
Accessories | 12V Power Adapter, 7dBi omni antennas | |||
Warranty | One year warranty | |||
| Quickly shipment via DHL, FedEx, TNT, UPS, EMS, Air transportation |
| Quickly and professional technical support including customized services |
| Customize software and firmware |
| One year Warranty |
If you would need more information about our BSP1000, please kindly send inquiry to us. We will reply you immediately or in 12 hours if it is not our working time.
