Bluetooth Wireless Access Point, Industrial Bluetooth Serial Adaptor
The Bluetooth SPP Server is an industrial wireless server designed to collect data from each Bluetooth terminal and transmit these data to management station (Server ) via the 10/100 Base-T Ethernet network or WiFi or 3G/4G.
Key Features:
| Linux built-in |
| Connect Bluetooth Devices to 10/100M Ethernet |
| Supports up to 3Mbps data rate |
| Ideal Wireless solution for the replacement of the wired multi-port serial card |
| 7/14/21/28 Bluetooth connections support |
| Supports Bluetooth profiles for Serial Port, |
| COM port redirector support |
| Flexible TCP/UDP host mode support: multiple host connction/data transfer |
| Support RFC 2217, Telnet COM port control protocol |
Applications:
Truck/Bus monitoring system |
| Car Diagnostic |
| Wireless POS system |
| Wireless Factory monitor PLC programming |
| Wireless machine(healthcare/industrial) Monitoring |
| Wireless Printing |
| Wireless Logistic |
Specifications:
| Model No. | BSP1000A | BSP1000B | BSP1000C | BSP1000D | |
| Bluetooth | SPP connections | 7 | 14 | 21 | 28 |
| Bluetooth | Blueooth 2.0+EDR, 4.0 BLE | ||||
| Bluetooth stack | RFCOMM / L2CAP | ||||
| Data Rate | Up to 3Mbps | ||||
| Bluetooth standard | Class 1 | ||||
| Working Range | Up to 300 meters in open space | ||||
| Max. RF output | 19.5dBi | ||||
| Receiving Sensitivity | -92.5dBi | ||||
| Antenna Gain | 7dBi | ||||
| Network | Interface | One RJ45 | |||
| Protection | 2KV Isolation | ||||
| Data rate | 10M/100M adapter | ||||
| Protocols | ICMP/ARP/TCP/HTTP/SSH/DNS/DHCP/DNS/DDNS | ||||
| Operation | Working Mode |
Virtual COM port/TCP Server/TCP Client/ UDP Sever/UDP Client |
|||
| System | Windows 98/ME/NT/2000/XP/2003/WIN7 | ||||
| managment | VSPP service and configure software | ||||
| Firmware upgrade | Via LAN/USB DISK/NET | ||||
| AC/DC | Input Voltage | 12~15VDC | |||
| Power | 230mA/12V | ||||
| Environmental | Operating | -20~80°C | |||
| Storage | -30 ~85°C | ||||
| Humidity | 5 - 95%RH | ||||
| Physical | Dimension | 17.3x12.8x2.8CM (LxWxH) | |||
| Material | ABS plastic | ||||
| Approval | CE | CE | |||
| FCC | |||||

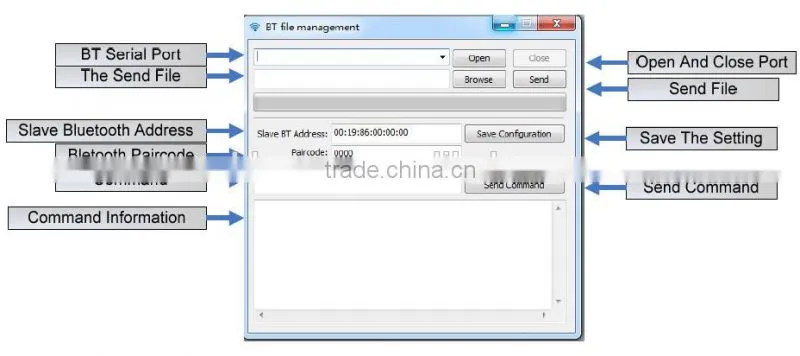

SPP Server Software:
Services:
| Quickly shipment via DHL, FedEx, TNT, UPS, EMS, Air transportation |
| Quickly and professional technical support including customized services |
| Customize software and firmware |
| One year Warranty |
If you would need more information about our BSP1000, please kindly send inquiry to us. We will reply you immediately or in 12 hours if it is not our working time.
