Long Range Wireless Data Transmitter Class 1 Bluetooth SPP
The BSP1000 is an industrial wireless Bluetooth AP designed to collect data from each Bluetooth terminal and transmit these data to management station (Server/computer ) via the 10/100 Base-T Ethernet network or WiFi, so you can monitor real-time data of each Bluetooth terminal and manage these devices remotely.
It adopts ARM920T processor, basic frequency 400MHz, flash 1GByte Nand and RAM 64MByte. BSP1000 can support 7/14/21/28 SPP connections. It is Linux OS with one 10M/100M LAN port and two USB2.0 HOST ports.
Model No. |
BSP1000B |
BSP1000C |
BSP1000D |
|
Bluetooth |
SPP connections |
14 |
21 |
28 |
Bluetooth version |
Bluetooth 2.0+EDR |
|||
Frequency |
2.4G |
|||
Speed |
3Mbps |
|||
Bluetooth standard |
Class 1 |
|||
Transmission Distance |
100-200 meters |
|||
Emission power |
19.5DB |
|||
Sensitivity |
-103DB |
|||
Antenna Gain |
7dBi |
|||
Network |
Interface |
One RJ45 |
||
Protection |
2KV Isolation |
|||
Data rate |
10M/100M adaptor |
|||
Protocols |
IP/TCP/UDP/DHCP/DHCPD/DNS/HTTP/SNMP |
|||
System |
Processor |
Embedded MIPS24KEc |
||
Working frequency |
580Mhz |
|||
Management |

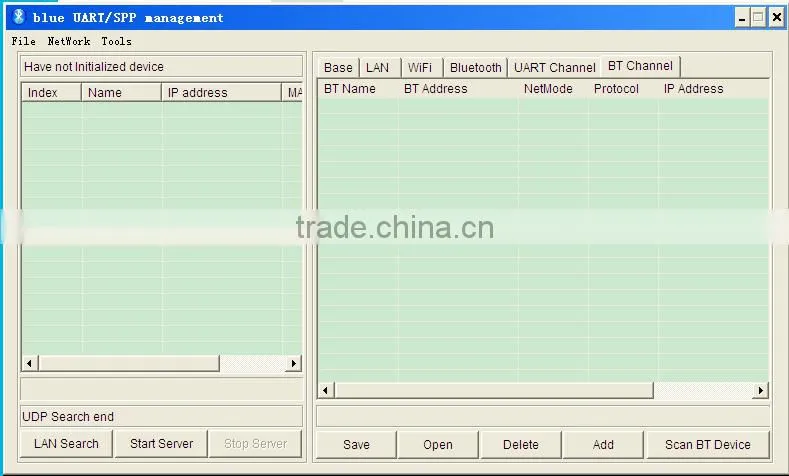

VSPP service and configure software |
|||
Firmware upgrade |
Via LAN/ WiFi |
|||
AC/DC |
Input Voltage |
DC 9~28V |
||
Power |
1A/12V |
|||
Operation Environment |
Operating |
-20~80℃ |
||
Storage |
-30 ~85℃ |
|||
Humidity |
5 - 95%RH |
|||
Physical |
Dimension(LxWxH) |
21*16.5*4cm |
||
Material |
ABS plastic |
|||
Weight( packing) |
1.5KG |
|||
WiFi |
Frequency |
2.4G |
||
Interface |
SMA RF Antenna |
|||
Transmission power |
+16.5 DB (802.11n) |
|||
Sensitivity |
-75DB (802.11n) |
|||
Encryption |
WPA/WPA2 TKIP/AES |
|||
Transmission Distance |
200 meters |
|||
Work Mode |
Station/AP |
|||
Other |
Certificates |
CE/FCC/RoHS |
||
Accessories |
12V Power Adapter, 7dBi omni antennas |
|||
Warranty |
One year warranty |
|||
| Linux built-in |
| Connect Bluetooth Devices to 10/100M Ethernet |
| Supports up to 3Mbps data rate |
| Ideal Wireless solution for the replacement of the wired multi-port serial card |
| 7/14/21/28 Bluetooth connections support |
| Supports Bluetooth profiles for Serial Port, |
| COM port redirector support |
| Flexible TCP/UDP host mode support: multiple host connction/data transfer |
| Support RFC 2217, Telnet COM port control protocol |
Truck/Bus monitoring system |
| Car Diagnostic |
| Wireless POS system |
| Wireless Factory monitor PLC programming |
| Wireless machine(healthcare/industrial) Monitoring |
| Wireless Printing |
| Wireless Logistic |
| Quickly shipment via DHL, FedEx, TNT, UPS, EMS, Air transportation |
| Quickly and professional technical support including customized services |
| Customize software and firmware |
| One year Warranty |
