Weichai 20-120kW Movable Power Station Gensets Diesel Generator

Weichai 20-120kW Movable Power Station Gensets Diesel Generator photo-1
US$ 5,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai
Model Number:
WD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Weichai
Model Number WD
Speed 1500rpm
Frequency 50HZ/60HZ
Rated Power 20-120kW
Rated Voltage 400V/230V

Weichai 20-120kW movable power station Gensets  diesel generator

Weichai 20-120kW movable power station Gensets diesel generator





Parameter

20-120kW Series Mobile Power Station

Set modelRated power
(kW)
Rated voltage
(V)
Fuel consumption at rated load
(L/h)
Weichai 226B Series Diesel EngineExcitation mode
Engine modelRated power
(kW)
Rated speed
(r/min)
No. of cylindersBore×Stroke(mm)Cooling method
WD27.5/920400/2305.0D226B-3D3015003105×120Close water coolingBrushless
WD33/924400/2306.0D226B-3D3015003105×120Close water coolingBrushless
WD41/930400/2307.5TD226B-3D4015003105×120Close water coolingBrushless
WD55/940400/23010.0WP4D66E2006015004105×130Close water coolingBrushless
WD68.5/950400/23012.5WP4D66E2006015004105×130Close water coolingBrushless
WD88/964400/23016.0WP4D100E2009015004105×130Close water coolingBrushless
WD103/975400/23018.8WP4D100E2009015004105×130Close water coolingBrushless
WD110/980400/23020.0WP4D100E2009015004105×130Close water coolingBrushless
WD123.5/990400/23022.5WP4D108E20010815004105×130Close water coolingBrushless
WD123.5/990400/23022.5WP6D132E20012015006105×130Close water coolingBrushless
WD137.5/9100400/23025.0WP6D132E20012015006105×130Close water coolingBrushless
WD165/9120400/23030.0WP6D152E20013815006105×130Close water coolingBrushless
The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Features

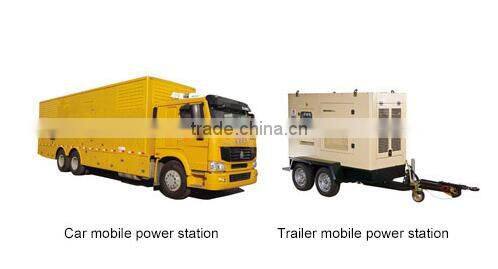

Trailer Movable Genset
1  It possess all the outstanding features of low voice power station.
2  The cover is made of international standard cold board featuring corrosion resistant, good sealing, waterproof and damp proof.
3  Its window door is specially designed and easy to open.
4  Two types: two-wheel/four-wheel.
5 Leaf spring suspension and rubber damper structure.
6  Parking brake device (manual brake).
7  Four corners of the vehicle frame have mechanical supporting device; two sides have tyre protection devices.
8  Height adjustable pin-type towbar is equipped, adaptable to various trailers of different heights, with large turning angle and high flexibility.
9  It has fuel tank, towing device, moving device and auxiliary supporting device, etc.



Vehicle Movable Genset
1  Good sealing: waterproof, snow proof, sand-proof, and dust-proof, it can work in harsh environment.
2  High safety: fire extinguishers inside and emergency stop button outside.
3 Low noise: noise reduction is implemented according to environmental protection regulations.
4  Good operational performance: with humanistic design, it can be easily and safely operated.
5  It is equipped with anti-explosion lamp inside and a working platform at the right for easy operation.
6  Dimensions of the vehicle is determined according to Genset. Operators can walk around for easy operation and maintenance.






Introduction

20-120kW movable power station adopts 226B series eco-friendly diesel engines jointly manufactured by Weichai Group and Germany-based Deutz as its power source, equipped with brand name generator and high-performance control system. It is installed on tractor trailer or vehicles. It has advantages of humanistic design, compact structure, good appearance, stable performance, high reliability, long durability, low fuel consumption, eco-friendliness, easy maintenance, good environmental adaptability, damp proof and rainproof, corrosion resistant, low noise and easy to move. It provides power for telecommunication and field constructions. It can also be used in severe working conditions. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.
