Plastic Water Tap and Water Filter Making Injection Molding Machine

Plastic Water Tap and Water Filter Making Injection Molding Machine photo-1

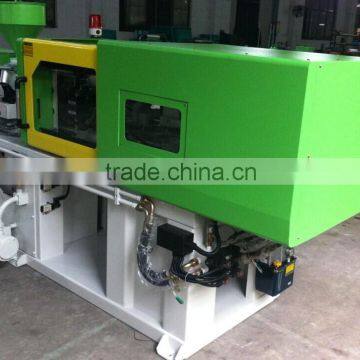

Plastic Water Tap and Water Filter Making Injection Molding Machine photo-2
Plastic Water Tap and Water Filter Making Injection Molding Machine photo-3
Plastic Water Tap and Water Filter Making Injection Molding Machine photo-4
Plastic Water Tap and Water Filter Making Injection Molding Machine photo-5
Plastic Water Tap and Water Filter Making Injection Molding Machine photo-6
US$ 1 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other
Style Horizontal
Brand Name SS
Model Number SSF500-K5
Place of Origin Zhejiang, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 64~73g
Injection Rate 43~49g/s
Clamping Force 500kn
Opening Stroke 250mm
Power(W) 10.2
Certification ISO9001:2008;CE
After-sales Service Provided Overseas third-party support available

Plastic water tap and water filter making machine

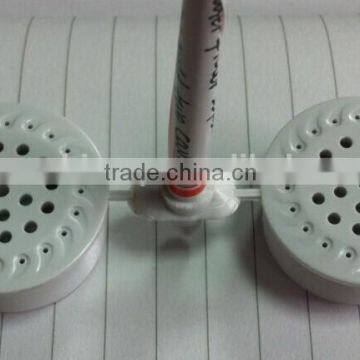

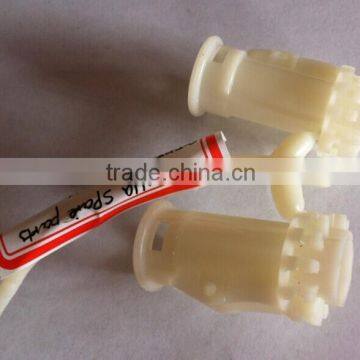

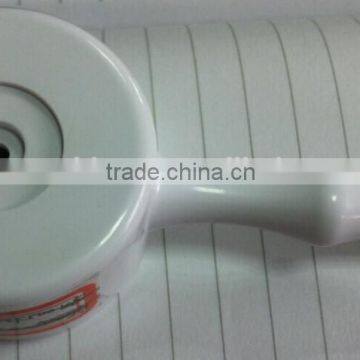

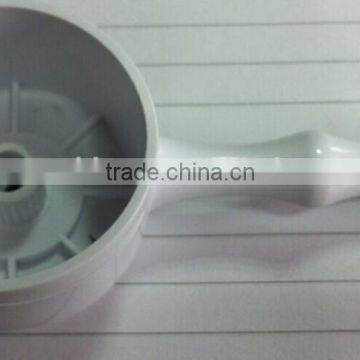

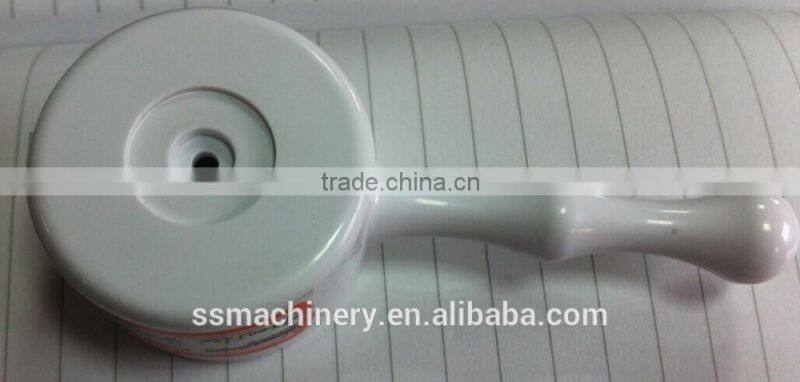

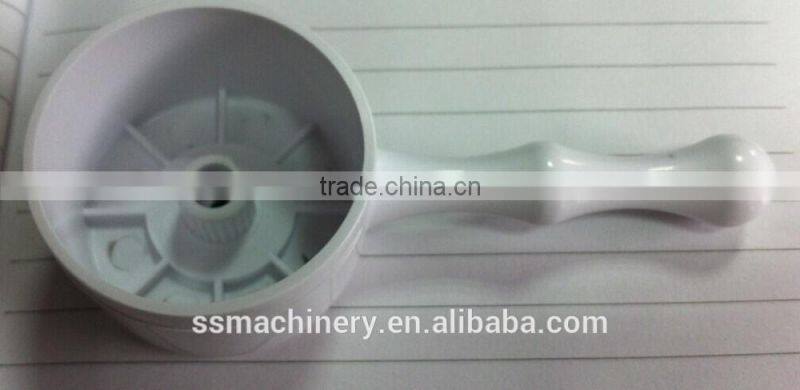

  The plastic water tap and water filter, of which raw material is ABS and was manufactured by our 50T small plastic injection molding machines, mold was 2 cavities.

Items Parameter Unit Parameter Value (SSF500)
Injection Unit Screw diameter mm A B
28 30
Screw L/D ratio L/D 19 17.7
shot volumn (theoretical) Cm3 70 80
injection weight(PS) g 64 73
plasticizing capacity g/s 6.9 7.7
injection rate g/s 43 49
injection pressure Mpa 224 195
screw speed rmp 200
Clamping unit clamp force KN 500
open stroke mm 250
space between bars (W*H) mm 290*270
max mould height mm 300
min mould height mm 100
ejector stroke mm 65
ejector force KN 20
ejector number PC 1
mould align diameter mm 100
Others max pump pressure Mpa 16
pump motor power KW 5.5
heating power KW 4.7
machine dimension m 3.2*1.1*1.6
machine weight T 1.9
oil tank capacity L 115

 Plastic water tap and water filter making injection molding machinePlastic water tap and water filter making injection molding machinePlastic water tap and water filter making injection molding machine

If you have any query about our injection molding machine, just contact me at any time
