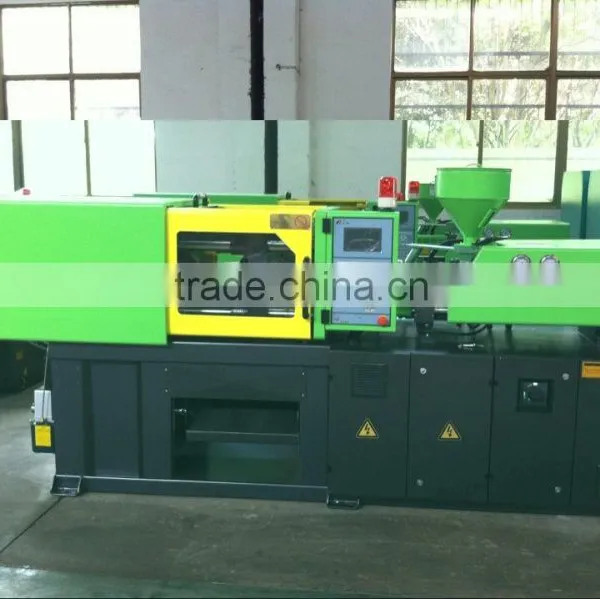

Plastic parts making injection molding machine
We are a small plastic injection molding machine manufacturer of which clamp force ranges from 32T to 270T
Main parameters of 50 T injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF500) | |
| Injection Unit | Screw diameter | mm | A | B |
| 28 | 30 | |||
| Screw L/D ratio | L/D | 19 | 17.7 | |
| shot volumn (theoretical) | Cm3 | 70 | 80 | |
| injection weight(PS) | g | 64 | 73 | |
| plasticizing capacity | g/s | 6.9 | 7.7 | |
| injection rate | g/s | 43 | 49 | |
| injection pressure | Mpa | 224 | 195 | |
| screw speed | rmp | 200 | ||
| Clamping unit | clamp force | KN | 500 | |
| open stroke | mm | 250 | ||
| space between bars (W*H) | mm | 290*270 | ||
| max mould height | mm | 300 | ||
| min mould height | mm | 100 | ||
| ejector stroke | mm | 65 | ||
| ejector force | KN | 20 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 100 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 5.5 | ||
| heating power | KW | 4.7 | ||
| machine dimension | m | 3.2*1.1*1.6 | ||
| machine weight | T | 1.9 | ||
| oil tank capacity | L | 115 | ||
Standard features;
1.Colorful Techmation controller with optional languages;
2.Chrome plated tie bars with double-cylinder balanced injection system;
3.Auto lubrication system;
4.Mould data memory system, can save 199 set molds data;
5.Multi-stage pressure &speed injection;
6.ack pressure adjustment device;
7.Low pressure mold protection;
8.Mechanical, electrical safety device;
9.Automatic mould adjustment function;
10.T-slot mold platen for machines above 100T;
11.Automatic purge function.
Available Options(To be charged)
1.By pass oil filter;
2.Oil temperature controller;
3.USB port data connecting;
4.Hopper dryer;
5.Mold clamps;
6.Vickers directional valves;
7.1PC core valve for SSF380,SSF500,SSF700,
8.2PCS core valves for SSF900,SSF1180,SSF1480,SSF1680;
9.2PCS air valve for all models;
10.3 Color alarm light;
11.Ceramic heater bands;
12.Water flow regulator;
13.Special screw designs for PA66,PVC,PC production;
14.Hydraulic safety mechanism;
15.SSR;
16.Other brand controller eg Keba, Mirle and etc;
17.Optional machine color.
Spare parts;
1.Manual for machine and controller;
2.1 Set various O-rings;
3.1PC nozzle;
4.1Barrel lubrication oil or grease;
5.Professional tools such as wrench, screw drivers;
6.1Set level pad(6pcs)
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.

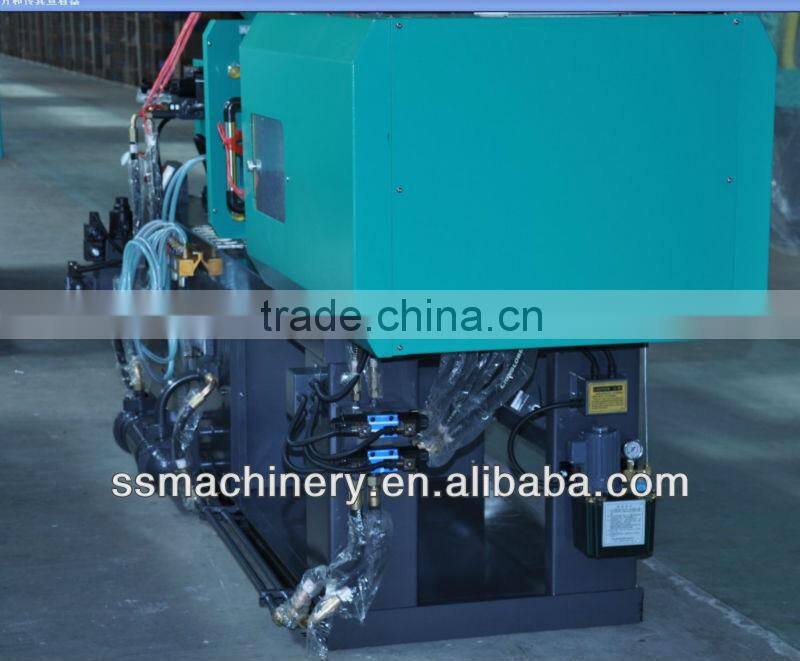

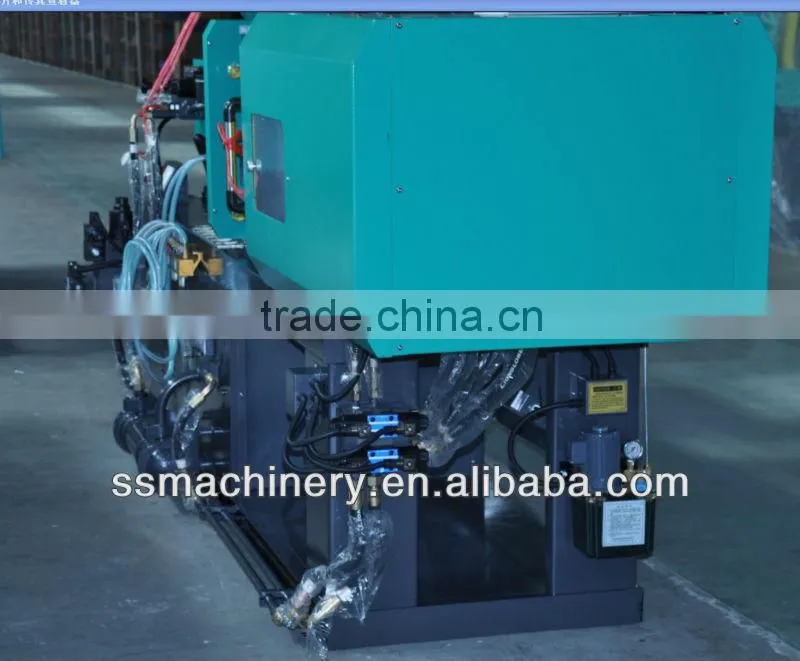

Backside of 50T injection moulding machine, with directional and proportional valve layout;
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.
The orgnization chart of our company, average working life of the staffs is 8 years.
If you have any query about our injection molding machine, just contact me at any time Alexis Liao Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
