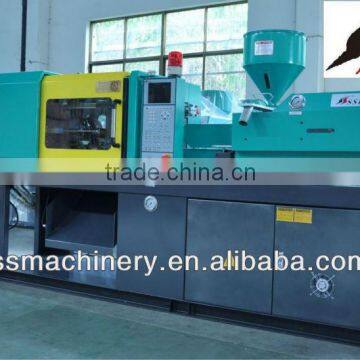

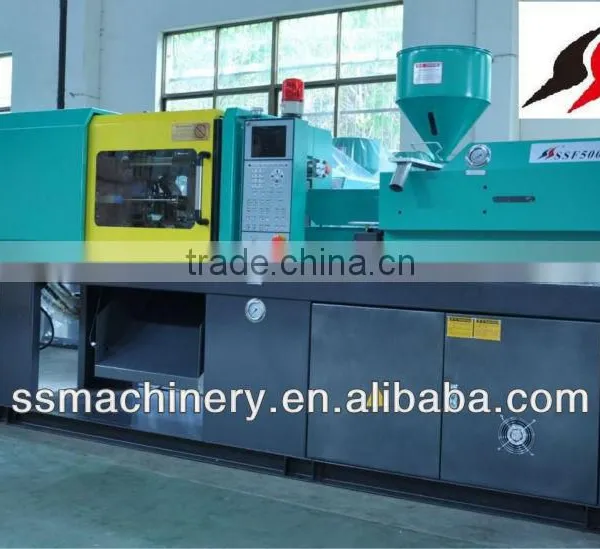

50T energy saving injection molding machine exporter
Our plastic injection machines are featured with Various operation methods: Manual, Semi-auto and fully-automatic types.
Mechanical and pneumatic safety protection device, the mold will not be closed if the safety door open.
Main parameters of 50T injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF500) | |
| Injection Unit | Screw diameter | mm | A | B |
| 28 | 30 | |||
| Screw L/D ratio | L/D | 19 | 17.7 | |
| shot volumn (theoretical) | Cm3 | 70 | 80 | |
| injection weight(PS) | g | 64 | 73 | |
| plasticizing capacity | g/s | 6.9 | 7.7 | |
| injection rate | g/s | 43 | 49 | |
| injection pressure | Mpa | 224 | 195 | |
| screw speed | rmp | 200 | ||
| Clamping unit | clamp force | KN | 500 | |
| open stroke | mm | 250 | ||
| distance between tie bars (W*H) | mm | 290*270 | ||
| max mould thickness | mm | 300 | ||
| min mould thickness | mm | 100 | ||
| ejector stroke | mm | 65 | ||
| ejector force | KN | 20 | ||
| ejector number | PC | 1 | ||
| dia of mould location hole | mm | 100 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 5.5 | ||
| heating power | KW | 4.7 | ||
| machine dimension | m | 3.2*1.1*1.6 | ||
| machine weight | T | 1.9 | ||
| oil tank capacity | L | 115 | ||
Standard features;
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
