Product Details
Place of Origin: | Hebei, China | Brand Name: | Ronghua | Model Number: | YJV |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Construction |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

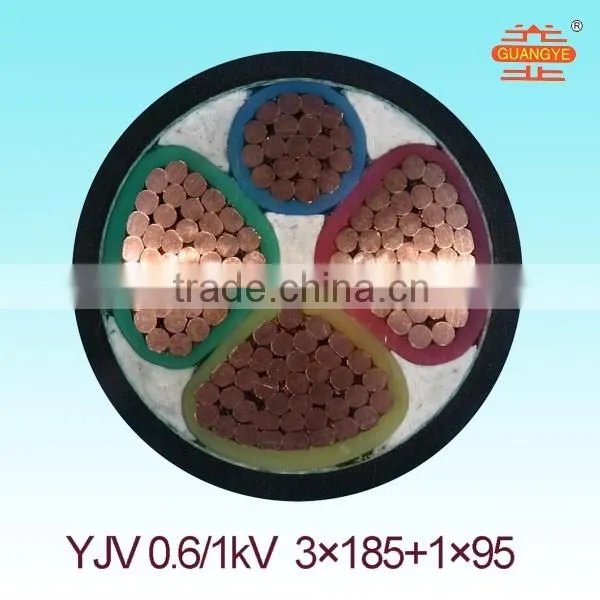

XLPE/PVC Insulation Power Cable
1·Use
The cable is used in electric transmission and distribution system operating at rated voltage of 0.6/1,1.8/3,3.6/6,6/10,8.7/15,12/20,21/35,26/35KV.

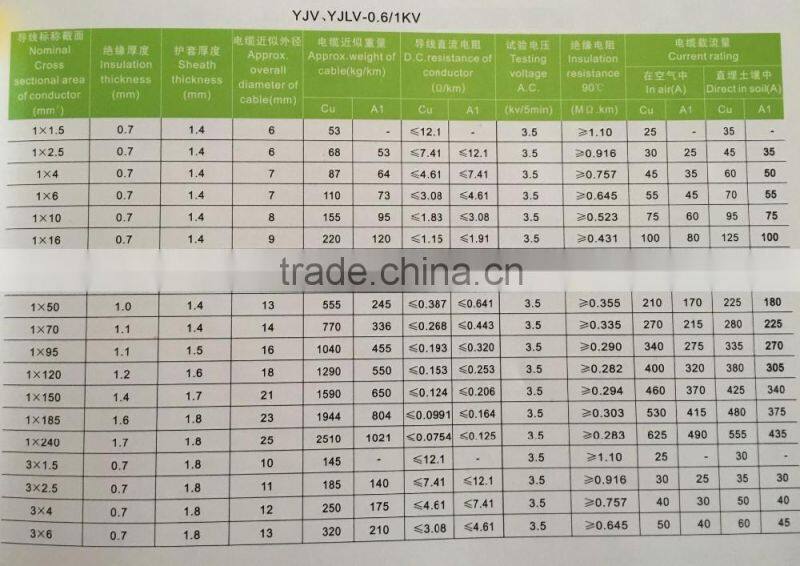

2·Model and name (see table )
Model | Name |
YJV/YJLV | Cu or conductor ,XLPE insulated.PVC sheathed electric cable |
YJV22/YJLV22 | Cu or AL conductor,XLPE insulated steel tape armoured PVC sheathed electric cable |
YJV32/YJLV32

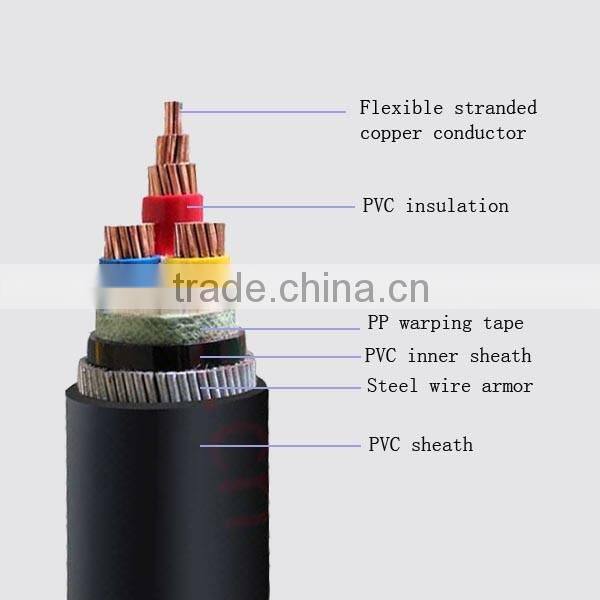

| Cu or AL conductor,XLPE insulated steel wire armoured PVC sheathed electric cable |
Attention: We can provide more info than above data, if needed.The above are just some examples.
Using property
1)The long-time working temperature of cable should not be highter than 70 ℃
2)When core is in short-circuit(max 5s)the temperature should not exceed 160 ℃
3)While installation the ambient temperature should not be lower than 0 ℃ ,and the bending radius should not be less than 10 times of outer dismeter of cable.
Wooden drum, Steel wooden drum, Steel drum or your requirement for power cable
certifications
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep isdelivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two monthsbefore the date you would like to get the products at your country.
