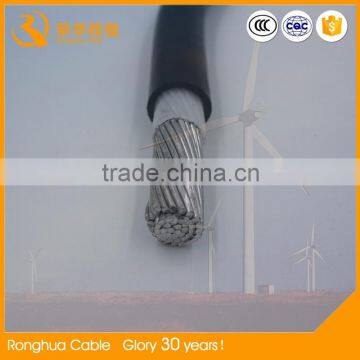

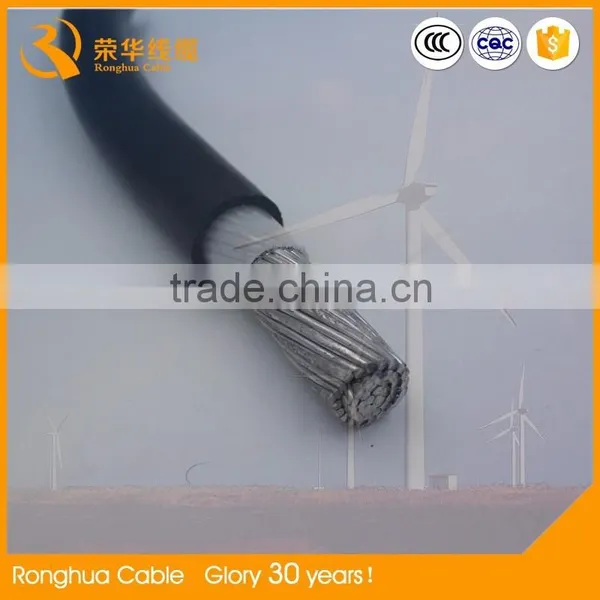

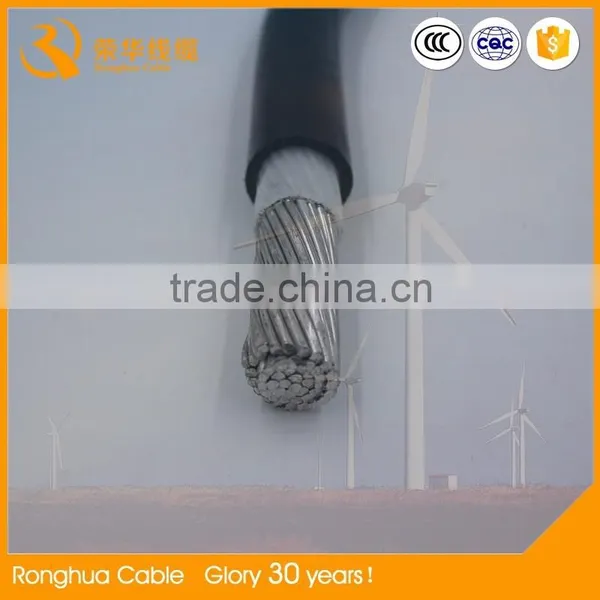

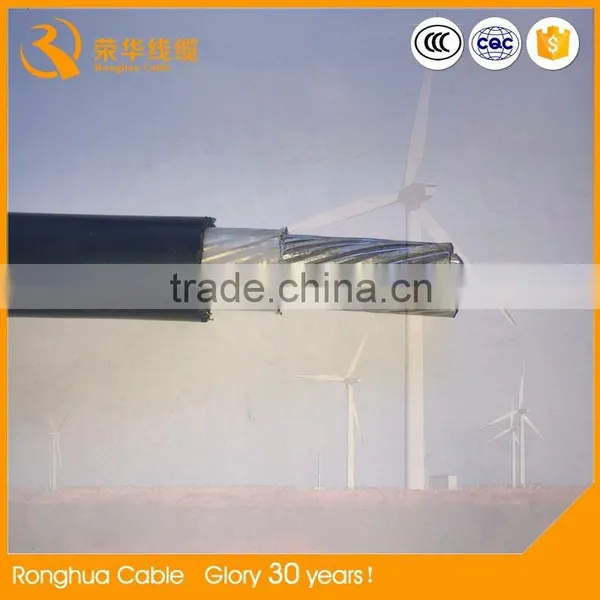

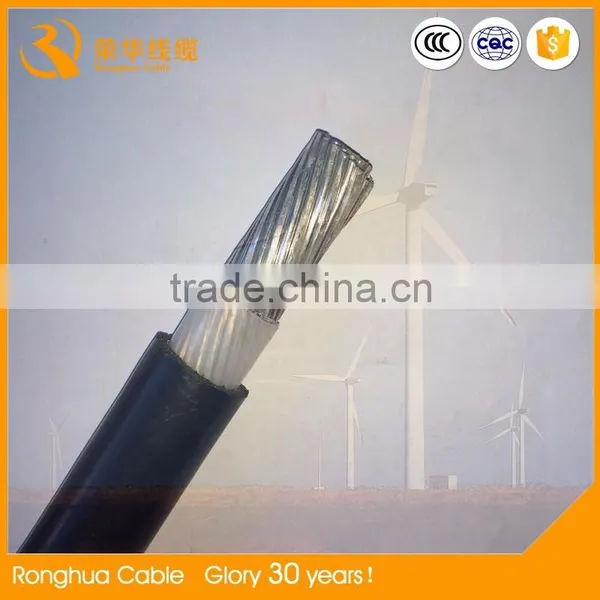

Help Center10kv Steel Core Aluminium XLPE Insulated Aerial Cable
Related Products
-
PVC Insulation Material and PVC Jacket Flexible Energy CableUS$ 1 - 100MOQ: 500 Meters -
Various Types of Xlpe and Pvc Insulation Power CableUS$ 1 - 100MOQ: 500 Meters
-
XLPE Insulated Wire Multi-core Steel Armored CableUS$ 1 - 100MOQ: 500 Meters
-
Copper Conductor XLPE Insulated Steel Wire Armored Power CableUS$ 0.5 - 100MOQ: 500 Meters
-
Copper Conductor PVC Insulated and Sheathed Control CableUS$ 0.5 - 100MOQ: 500 Meters
1 Use
The product is used in aerial electric circuit at AC rated voltage U(Um)=10(12)kv.
2Applying terms
1)The long time working temperature of cable should not be highter than 90℃.
2)While installation the ambient temperature should not be lower than -20℃.
3)When core is in short circuit (max 5s)the temperature should not exceed 250℃.
2,
Nominal csetion area(sqmm) |
Conductor structure |
Insulation material |
Insulation Thickness(mm) |
Approx. Overall Diameter(mm) |
Approx. weight (kg/km) |
Packing meters per drum |
||
|
Phase (Compacted AL) |
Neutral (bare ACSR) |
|||||||
(No./mm) |
Aluminum (No./mm) |
Steel (No./mm) |
||||||
1x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
XLPE |
1.2 |
12.5 |
121.9 |
250-4000m |
1x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
14.9 |
182.2 |
250-4000 |
1x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
17.5 |
254.7 |
250-3500m |
1x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
23.6 |
382.2 |
250-3000m |
1x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
27.6 |
528.2 |
250-3000m |
2x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
|
1.2 |
14.2 |
187.6 |
250-4000m |
2x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
16.7 |
273.8 |
250-3500m |
2x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
19.7 |
386.9 |
250-3500m |
2x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
26.1 |
617.2 |
250-3000m |
2x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
30.5 |
850.9 |
250-3500m |
3x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
29.7 |
1024.3 |
250-3000m |
3x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
34.6 |
1413.7 |
250-3000m |
Our Advantage:
- More than 30 years experience.
- OEM & ODM service is acceptable.
- Good quality with factory price
- Can print words on the wire
If you have any questions of the flat electrical wire , please kindly contact us freely! We will reply you within 12 hours!
