Home > Products > New Products > 0.6/1KV XLPE Insulated PVC Jacket Power Cable(YJV)

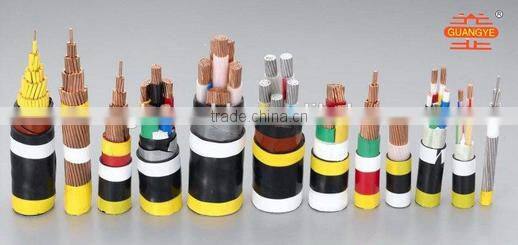

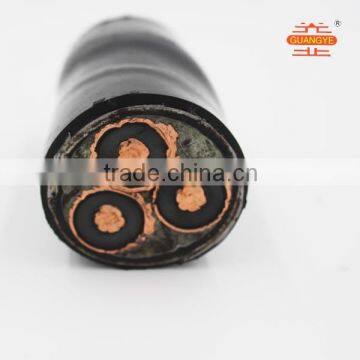

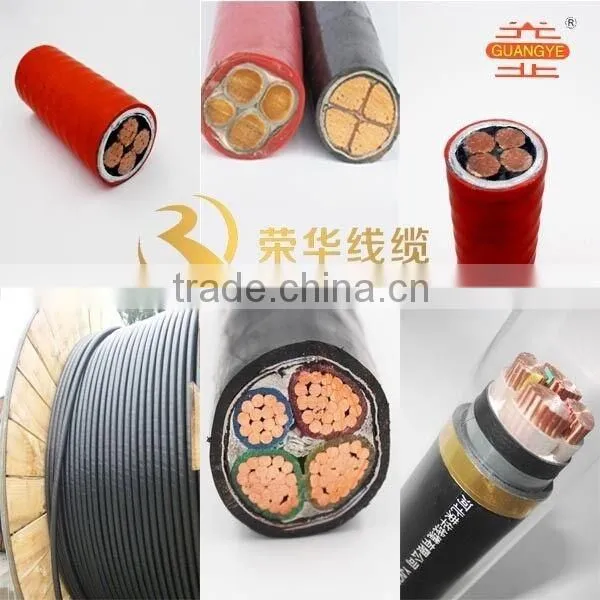

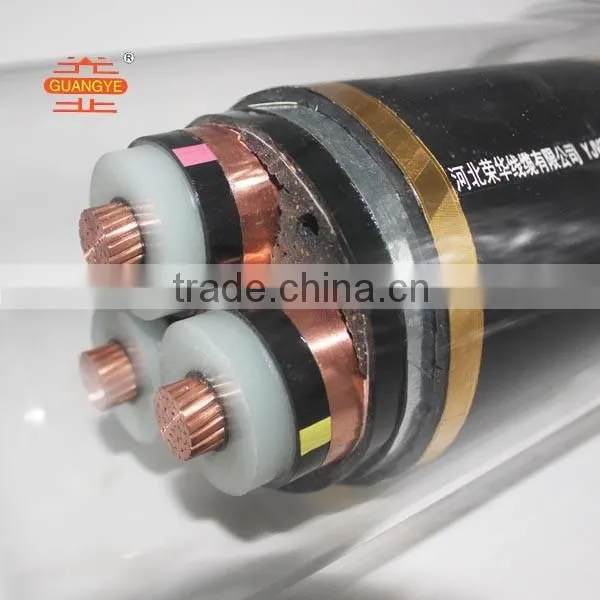

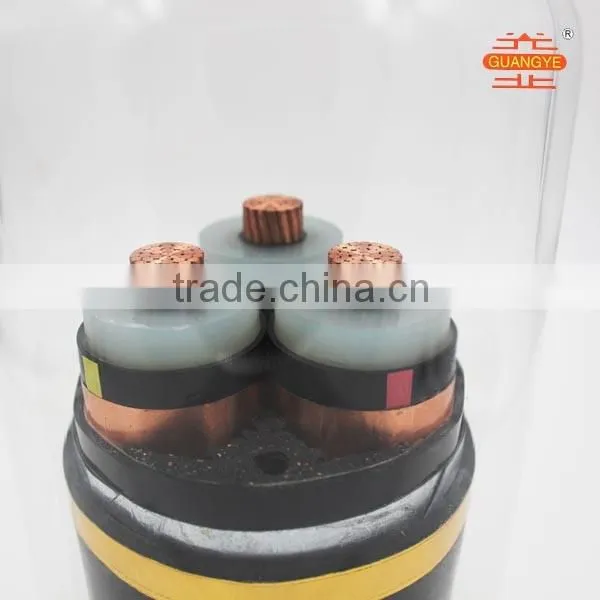

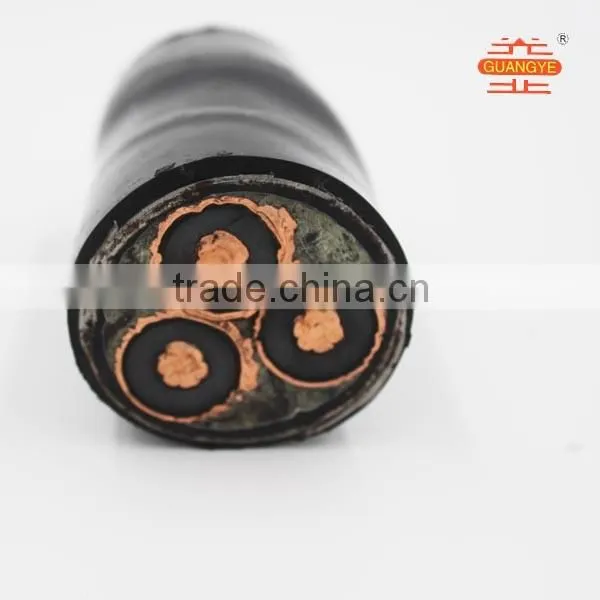

0.6/1KV XLPE Insulated PVC Jacket Power Cable(YJV)
- 80000 Meter / Meters per Month
- tianjin
- T/T L/C D/P D/A Credit Card
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | Ronghua | Model Number: | YJV |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Power Station |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
It is suitable for power grid with
rated voltage 0.6/1kV or
the power transmission
in the power equipment.
It is manufactured according to the standards of GB12706-1991"Copper Core&Aluminum Core Plastic Insulating Power Cable with Rated Vlotage 35kV&below 35kV"and IEC60502"Extruded solid dielectric insulated power cables for rated voltages from 1KV up to 30KV"
It is suitable for power grid with rated voltage 0.6/1kV or the power transmission in the power equipment.
Rated power-frequency voltage U./U is 0.6/1kV.
The highest environment permissible continuous operating temperature for the conductor of the PVC Insulating Power Cable to work normally is 90°C.In case of short circuit (with duration less than 5 seconds),the highest temperature of the conductor is less than 250°C.
The recommended bending radius:for mono-core cable,not less than 20 times of the cable's actual external diameter;for multi-core cable,not less than 15 times of the cable's actual ecternal diameter.
Our Advantage:
- More than 30 years experience. - 450/750V PVC insulated BV electrical Wire and cable 16mm
- OEM & ODM service is acceptable.
- Good quality with factory price
- Can print words on the wire
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep isdelivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two monthsbefore the date you would like to get the products at your country.
