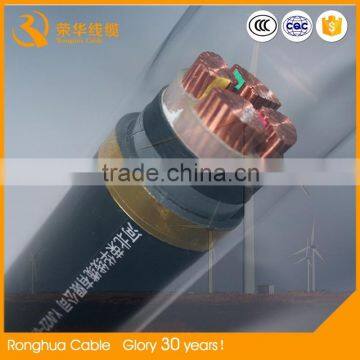

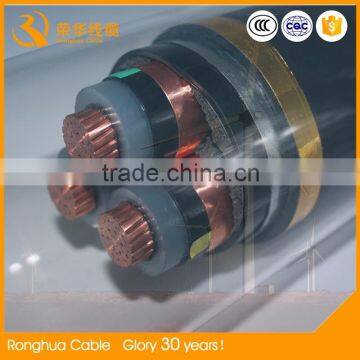

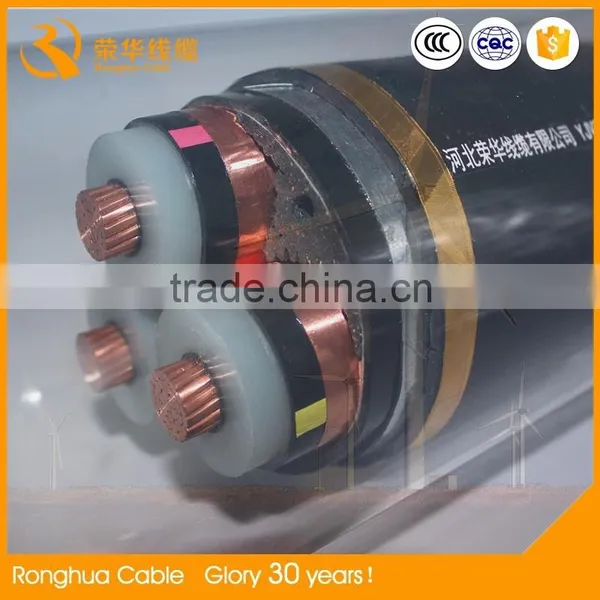

Hebei Ronghua Wire Cable Co,.LTD--- Steel Tape Armored Fire Resistance Solid Copper Conductor PVC Cable
Low voltage cooper conductor PVC insulated PVC flexible armoured energy cable
1.The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose .
2. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
3. Product Features:
- No necessary to heat up in advance while installing above 0oC.
- Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
- Max. Permissible temperature at short circuit (5s. at longest): 250oC.
- Permissible bending radius: Single core: ≥20(d+D)±5%. Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
4.Model and Data
low voltage cooper conductor PVC insulated PVC sheathed power cable
| U0/Um(kv) | 1st class | 0.6/1kv | 1.8/3kv | 3.6/6kv | 6/10kv | 8.7/15kv | 12/20kv | 18/30kv | 21/35kv |
| No.of Core | |||||||||
| 1 Core | Sectrion | 1.5-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 | 50-800 |
| area(mm2) | |||||||||
| 2 Core | Section | 1.5-185 | / | / | / | / | / | / | / |
| Area(mm2) | |||||||||
| 3 Core | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 | / |
| 4 Core | Section | 2.5-400 | 2.5-400 | / | / | / | / | / | / |
| Area(mm2) |
4 cores:
| Cross Section mm2 | Insulated thickness mm | Sheath thickness mm | Outer diameter mm | Testing Voltage kv | Current loading capacity | |
| in the air | to be laid underground | |||||
| 1.5 | 0.7 | 1.5 | 10.6 | 3.5 | 21 | 25 |
| 2.5 | 0.7 | 1.5 | 11.5 | 3.5 | 28 | 33 |
| 4 | 0.7 | 1.5 | 12.8 | 3.5 | 37 | 44 |
| 6 | 0.7 | 1.5 | 14 | 3.5 | 46 | 54 |
| 10 | 0.7 | 1.5 | 15.9 | 3.5 | 63 | 73 |
| 16 | 0.7 | 2 | 19.1 | 3.5 | 84 | 94 |
| 25 | 0.9 | 2 | 22.7 | 3.5 | 109 | 120 |
| 35 | 0.9 | 2 | 25.4 | 3.5 | 132 | 144 |
| 50 | 1 | 2 | 29 | 3.5 | 159 | 169 |
| 70 | 1.1 | 2 | 32.9 | 3.5 | 195 | 205 |
| 95 | 1.1 | 2.5 | 37.7 | 3.5 | 237 | 245 |
| 120 | 1.2 | 2.5 | 41.6 | 3.5 | 273 | 278 |
| 150 | 1.4 | 3 | 47.6 | 3.5 | 310 | 309 |
| 185 | 1.6 | 3 | 50.6 | 3.5 | 355 | 347 |
| 240 | 1.7 | 3 | 56.4 | 3.5 | 416 | 399 |
| 300 | 1.8 | 3.5 | 62.2 | 3.5 | 473 | 446 |
| 400 | 2 | 3.5 | 68.9 | 3.5 | 512 | 431 |
Hebei Ronghua Wire And Cable Co.,LTD. is a spcialized manufacture of cables.
Welcome Your Visit! Hope to Get in Touch with You! | |
Cable Factory Name | Hebei Ronghua Wire And Cable Co.,LTD. |
Factory Established in | Year 1984, 30 Years’ Experience of Producing kinds of Cables |
Factory Location | Shaheqiao Town, Hejian City, Hebei, China |
Export Office Location | Aobei Park, Fengshou Road, Shijiazhuang, Hebei, China |
Cable Products Type | Electrical Wires |
Customized Cables per Requirement | |
Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
Flexible Rubber Cable | |
Mining cable, welding cable, waterproof Submersible pump cable | |
High Temperature Cable, Silicone Rubber Insulated Cable | |
Fire Resistant/ Flame Retardant Power Cable | |
Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour (Armour Type: Steel Tape or Steel Wire) | |
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
Welcome your inquiries! We will reply within 12 hours!
Contact person: Helen Han
Email: admin@
Contact QQ:499937074
Whatsapp:86-13383038093
