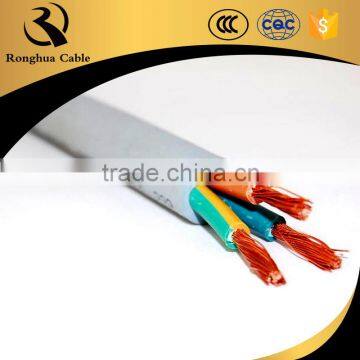

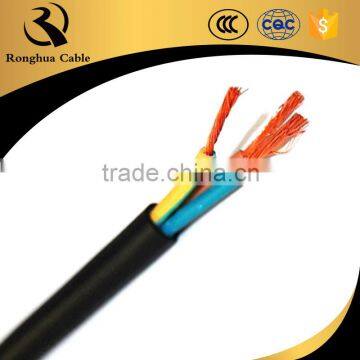

Help CenterUL Approval Rubber Cable HPN/HPN-R, SV/SVO, SJ/SJO/SJOW/SJOO/SJOOW, S/SO/SOW/SOO/SOOW
Related Products
-
KC Approval Rubber Cable 60245IEC53, 60245IEC57, 60245IEC66US$ 0.1 - 20MOQ: 1000 Meters -
Mining Rubber Sheath 95mm2 150mm2 Copper Conductor CableUS$ 0.1 - 100MOQ: 1000 Meters
-
JHSB Waterproof Submersible Pump Used Flexible Flat CableUS$ 0.1 - 80MOQ: 500 Meters
-
VDE Approval Flexible Rubber Cable H05RR-F, H05RN-F, H05BN4-F, H07RN-F, H03RN-FUS$ 0.1 - 50MOQ: 300 Meters
-
Flexible Rubber Insulation and Sheath Cable 450/750V Rubber CableUS$ 0.3 - 30MOQ: 300 Meters
SV/SVO
Color:
3 Cores: Black, White, Green
Dimensions and Specifications:
AWG Size/ No. of Cores |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
18AWG/2C |
6.0±0.2 |
22.4 |
16AWG/2C |
6.6±0.2 |
14.1 |
18AWG/3C |
6.4±0.2 |
22.4 |
16AWG/3C |
7.0±0.20 |
14.1 |
SJ/SJO/SJOW/SJOO/SJOOW
Color:
4 Cores: Black, White, Green, Red
Dimensions and Specifications:
AWG Size/ No. of Cores |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
|
SJ/SJO/SJOW |
SJOO/SJOOW |
||
18AWG/2C |
7.6±0.2 |
7.24±0.5 |
22.4 |
16AWG/2C |
8.2±0.2 |
7.87±0.5 |
14.1 |
14AWG/2C |
8.9±0.2 |
6.84±0.5 |
8.88 |
12AWG/2C |
10.7±0.20 |
10.41±0.50 |
5.58 |
10AWG/2C |
14.2±0.30 |
14.22±0.70 |
3.51 |
18AWG/3C |
8.0±0.20 |
7.75±0. 50 |
22.4 |
16AWG/3C |
8.7±0.20 |
8.38±0.50 |
14.1 |
14AWG/3C |
9.6±0.20 |
9.40±0.50 |
8.88 |
12AWG/3C |
11.2±0.25 |
10.92±0.50 |
5.58 |
10AWG/3C |
14.9±0.30 |
14.73±0.70 |
3.51 |
18AWG/4C |
8.8±0.20 |
8.38±0.50 |
22.4 |
16AWG/4C |
9.5±0.20 |
9.27±0.50 |
14.1 |
14AWG/4C |
10.5±0.20 |
10.41±0.50 |
8.88 |
12AWG/4C |
12.3±0.25 |
12.07±0.70 |
5.58 |
10AWG/4C |
16.4±0.30 |
16.64±0.70 |
3.51 |
18AWG/5C |
9.6±0.20 |
/ |
22.4 |
16AWG/5C |
10.4±0.20 |
/ |
14.1 |
14AWG/5C |
11.4±0.25 |
/ |
8.88 |
12AWG/5C |
13.4±0.30 |
/ |
5.58 |
10AWG/5C |
18.0±0.30 |
/ |
3.51 |

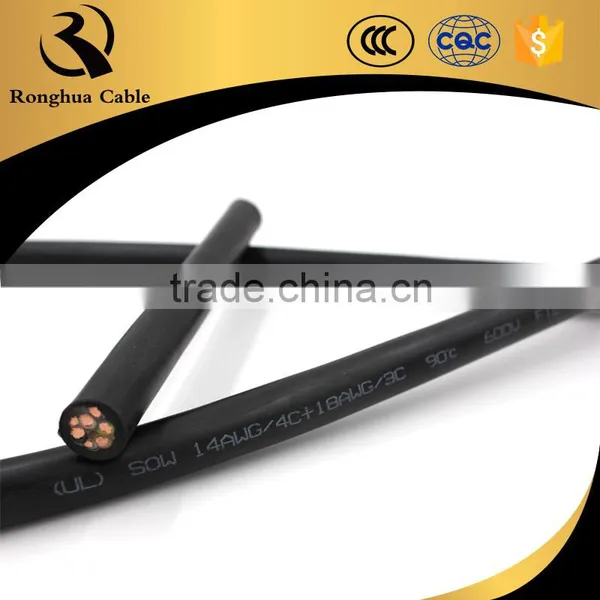

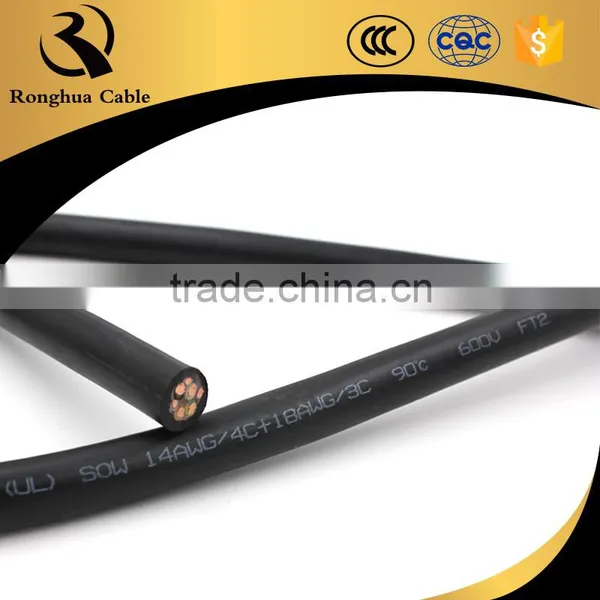

S/SO/SOW/SOO/SOOW
Color:
Cores: Black, White, Green, Red
Dimensions and Specifications:
AWG Size/ No. of Cores |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
|
S/SO/SOW |
SOO/SOOW |
||
18AWG/2C |
8.9±0.15 |
8.76±0.5 |
22.4 |
16AWG/2C |
9.5±0.20 |
9.4±0.5 |
14.1 |
14AWG/2C |
12.8±0.25 |
12.95±0.7 |
8.88 |
12AWG/2C |
14.6±0.30 |
14.48±0.7 |
5.58 |
10AWG/2C |
15.9±0.30 |
15.75±0.9 |
3.51 |
8AWG/2C |
/ |
19.88±1.5 |
2.23 |
6AWG/2C |
/ |
22.64±1.5 |
1.40 |
4AWG/2C |
/ |
25.92±2.0 |
0.882 |
2AWG/2C |
/ |
30.18±2.0 |
0.555 |
18AWG/3C |
9.3±0.20 |
9.27±0.5 |
22.4 |
16AWG/3C |
10.0±0.20 |
9.91±0.5 |
14.1 |
14AWG/3C |
13.5±0.25 |
13.59±0.7 |
8.88 |
12AWG/3C |
15.3±0.30 |
15.11±0.9 |
5.58 |
10AWG/3C |
16.8±0.30 |
16.764±0.9 |
3.51 |
8AWG/3C |
/ |
20.98±1.6 |
2.23 |
6AWG/3C |
/ |
23.84±1.5 |
1.40 |
4AWG/3C |
/ |
27.42±2.0 |
0.882 |
2AWG/3C |
/ |
31.88±2.0 |
0.555 |
18AWG/4C |
10.0±0.20 |
9.91±0.5 |
22.4 |
16AWG/4C |
10.7±0.20 |
10.67±0.7 |
14.1 |
14AWG/4C |
14.5±0.30 |
14.61±0.7 |
8.88 |
12AWG/4C |
16.6±0.30 |
16.51±0.9 |
5.58 |
10AWG/4C |
18.1±0.30 |
18.16±0.9 |
3.51 |
8AWG/4C |
/ |
23.54±1.7 |
2.23 |
6AWG/4C |
/ |
26.72±2.0 |
1.40 |
4AWG/4C |
/ |
30.58±2.0 |
0.882 |
2AWG/4C |
/ |
35.54±2.0 |
0.555 |
18AWG/5C |
12.0±0.25 |
11.81±0.7 |
22.4 |
16AWG/5C |
12.8±0.25 |
12.57±0.7 |
14.1 |
14AWG/5C |
16.4±0.25 |
16.38±0.9 |
8.88 |
12AWG/5C |
18.1±0.30 |
18.16±0.9 |
5.58 |
10AWG/5C |
19.6±0.30 |
19.56±0.9 |
3.51 |
8AWG/5C |
/ |
25.54±2.0 |
2.23 |
6AWG/5C |
/ |
29.02±2.0 |
1.40 |
4AWG/5C |
/ |
33.28±2.0 |
0.882 |
2AWG/5C |
/ |
38.64±2.0 |
0.555 |
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
