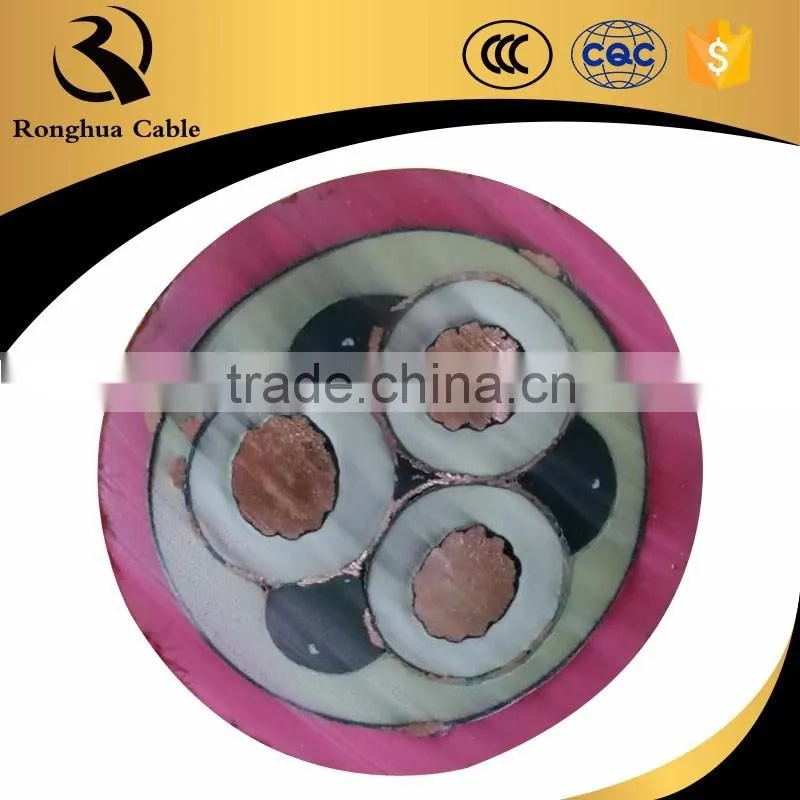

mining rubber sheath 95mm2 150mm2 copper conductor cable

FOB Price

USD $0.1 - $100 / Meter

1000 Meters(Min.Order)

Supply Ability 1000 Kilometer / Kilometers per Month
Port Tianjin port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Ronghua
Model Number	PVC	Insulation Material	Rubber
Type	Low Voltage	Application	Mining
Conductor Material	Copper	Jacket	Rubber

Product Description

mining rubber sheath 95mm2 150mm2 copper conductor cable

Product Description

1.Long-term allowable operating temperature of cable conductor is not more than 65 ℃ /90 ℃.

2.The lowest temperature should more than -35 ℃.

3. This rubber cable of shield machine for mining is mainly used for heavy equipment for open-pit mine and underground digging under the voltage system of 8.7 /15kV.

4. The bending radius: not more than 6 times of cable diameter.

No.of conductor	Normal Area (mm²)	Construction (No. /mm)	Sheath thickness (mm)	Overal diamee (mm)	Insulation thickness (mm)	Max Conductor resistance at 20°C(Ω/km) Bare	Max Conductor resistance at 20°C(Ω/km) Tinned
1	0.75	24/0.20	0.8	4.6±0.2	0.8	26	26.7
	1.0	32/0.20	0.8	4.8±0.2	0.8	19.5	20
	1.5	30/0.25	0.8	5.1±0.2	0.8	13.3	13.7
2	0.75	24/.02	0.6	6.4±0.2	0.8	26	26.7
2	1.0	32/0.2	0.6	6.9±0.2	0.9	19.5	20
3	0.75	24/0.2	0.6	7.0±0.2	0.9	26	26.7
3	1.0	32/0.2	0.6	7.4±0.2	0.9	19.5	2

3+1 cores safe mining use power cable rubber sheathed movable flexible mining cable type

Type	Description	Application
MC-0.38/0.66	Rubber flexible cable for excavator	As the power connection used
		in the excavator or similar equipment
		with rated voltage 0.38/0.66kV
MCP-0.38/0.66	Shielded, rubber-sheathed flexible	As the power connection used
	cable for excavator	in the excavator or similar equipment
		with rated voltage 0.38/0.66kV
MCP-0.66/1.14	Shielded, rubber flexible cable for excavator	As the power connection used
		in the excavator or similar
		equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14	Shielded ,monitoring and braiding	As the power connection used
	reinforced type, rubber flexible cable for excavator	in the excavator or similar
		equipment with rated voltage 0.66/1.14kV,
		it can be dragged directly
MCPJR-0.66/1.14	Shielded ,monitoring and braiding reinforced type,	As the power connection used
	rubber flexible cable for excavator	in the excavator or similar
		equipment with rated voltage 0.66/1.14kV,
		it must be used in the protective chain panel
MCPT-0.66/1.14	Metallic shielded rubber flexible cable for excavator	As the power connection used
		in the excavator or similar equipment
		with rated voltage 0.66/1.14kV
MCP-1.9/3.3	Shielded rubber flexible cable for excavator	As the power connection used
		in the excavator or similar equipment
		with rated voltage 1.9/3.3kV
MCPT-1.9/3.3	Metallic shielded rubber flexible cable for excavator	As the power connection used
		in the excavator or similar equipment
		with rated voltage 1.9/3.3kV
MCPTJ-0.66/1.14
MCPTJ-1.9/3.3	Metallic shielded, monitoring type,	As the power connection used
	rubber flexible cable for excavator	in the excavator or similar equipment
		with rated voltage 1.9/3.3kV
MY-0.38/0.66	Movable rubber flexible cable for mining	As the power connection used
		in the mining machine with
		rated voltage 1.9/3.3kV
MYP-0.38/0.66	Movable shield rubber flexible cable for mining	As the power connection used
		in the mining machine
		with rated voltage 0.38/0.66kV
MYP-0.66/1.14	Movable shield rubber flexible cable for mining	As the power connection used
		in the mining machine with
		rated voltage 0.66/1.14kV
MYPJ-3.6/6	Monitoring movable shield rubber	As the power connection used
	flexible cable for mining	in the mining transformer and
		similar equipment with rated
		voltage3.6/6kV
MYPTJ-3.6/6	Metallic shielded monitoring type	As the power connection used
	movable rubber flexible cable	in the mining transformer and
		similar equipment with rated
		voltage3.6/6kV
MYP-3.6/6	Movable shield rubber flexible cable for mining	Mining equipment with rated voltage
		3.6/6kV the min. environment
		temperature is-20℃
MYPT-3.6/6	Movable metallic shield rubber	Mining equipment with rated
	flexible cable for mining	voltage 3.6/6kV the min.
		environment temperature is-20℃
MYPD-3.6/6	Movable shield rubber flexible cable for mining	Mining equipment with rated
		voltage 3.6/6kV the min.
		environment temperature is-40℃
MYPTD-3.6/6	Movable metallic shield rubber	Mining equipment with rated
	flexible cable for mining	voltage 3.6/6kV the min.
		environment temperature is-40℃
MZ-0.3/0.5	Driller cable for mining	As the power connection
MZ-0.3/0.5	Driller cable for mining	of driller with rated voltage 0.3/0.5kV
MZP-0.3/0.5	Driller shielded cable for mining	As the power connection of
MZP-0.3/0.5	Driller shielded cable for mining	driller with rated voltage 0.3/0.5kV
MYQ-0.3/0.5	Movable light-type rubber	Lighting in the mine, as the
	flexible cable for mining	power connection of the interlock
		and control signals used in the transport
		machine and equipment
