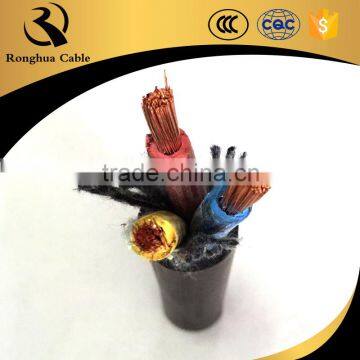

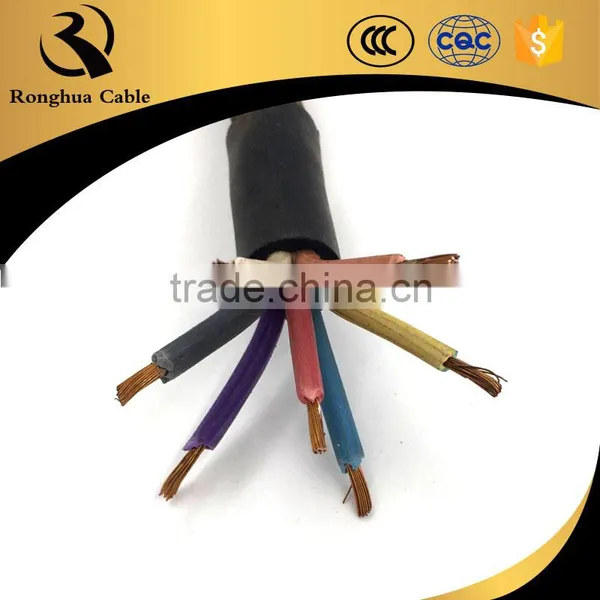

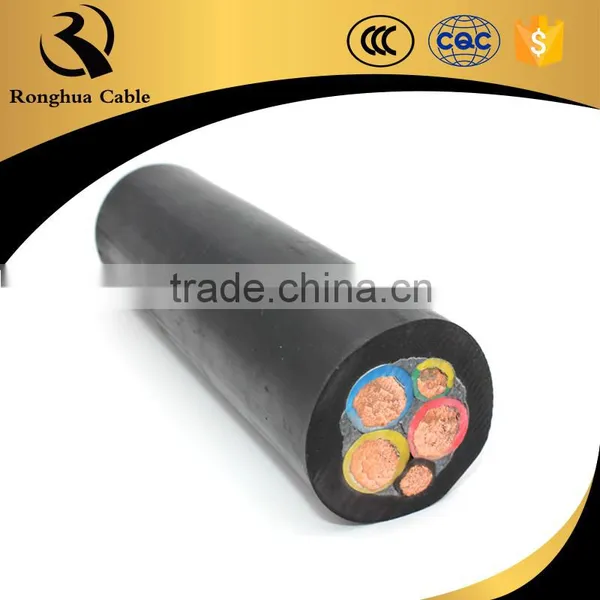

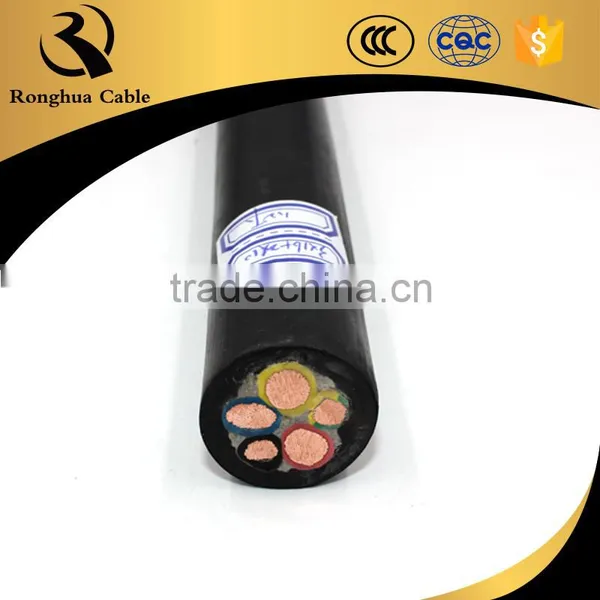

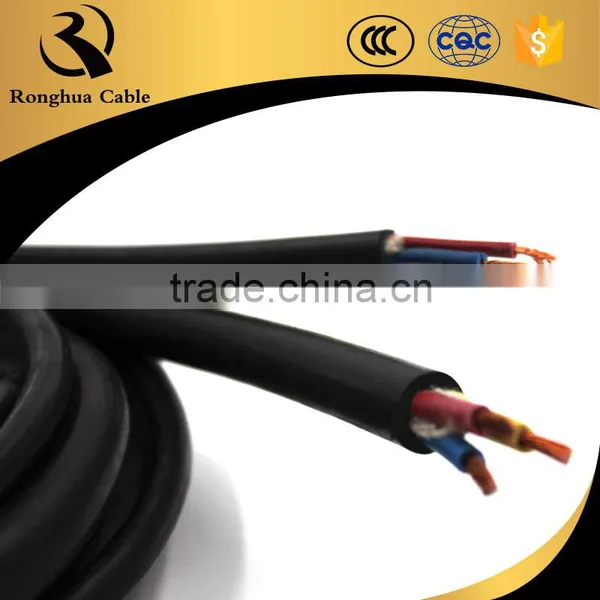

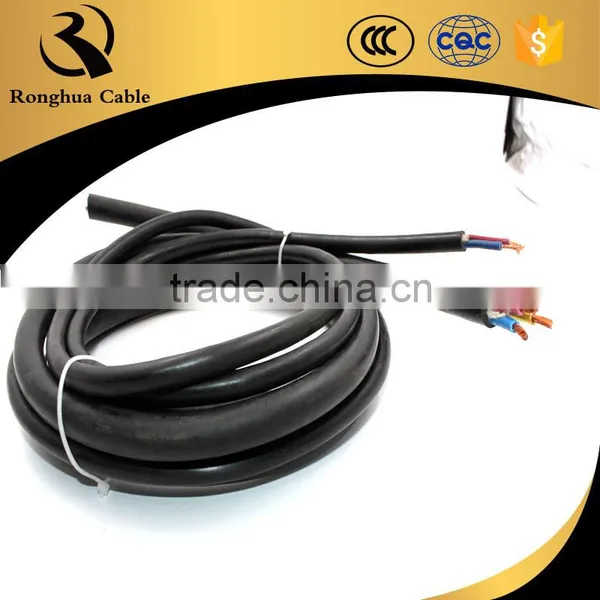

Help CenterKC Approval Rubber Cable 60245IEC53, 60245IEC57, 60245IEC66
Related Products
-
Mining Rubber Sheath 95mm2 150mm2 Copper Conductor CableUS$ 0.1 - 100MOQ: 1000 Meters -
JHSB Waterproof Submersible Pump Used Flexible Flat CableUS$ 0.1 - 80MOQ: 500 Meters
-
VDE Approval Flexible Rubber Cable H05RR-F, H05RN-F, H05BN4-F, H07RN-F, H03RN-FUS$ 0.1 - 50MOQ: 300 Meters
-
Flexible Rubber Insulation and Sheath Cable 450/750V Rubber CableUS$ 0.3 - 30MOQ: 300 Meters
-
Factory Rubber Sheathed Mine Flexible Cable H07RN-FUS$ 0.1 - 50MOQ: 300 Meters
Construction:
Conductors: Stranded Bare Copper
Insulation: EPR
Jacket: CPE
Technical Data:
Rate Voltage: 300/500V, 450/750V
Rate Temperature: 60℃
Standard: AS, K60245-4
Application:
Type |
60245IEC 53 (H05RR-F) |
60245IEC 57 (H05RN-F) |
60245IEC 66 (H07RN-F) |
Rate Voltage |
300/500V |
300/500V |
450/750V |
Color of Jacket |
Black |
Black |
Black |
Color of Insulation |
2 Cores: Blue and Brown; 3 Cores: Yellow/Green, Blue and Brown |
3 Cores: Yellow/Green, Blue and Brown |
|
Application |
Suitable for lightweight and conditions of light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Dry and damp rooms and only temporary use outdoors. Not for industrial/commercial or agricultural usage. |
Suitable for medium duty, and conditions of light conventional mechanical stress. Suitable for use outdoors. Use for power installation, household appliances, power tools, engineering lighting, and portable electrical equipment etc. |
Suitable for heavy duty and conditions of medium to high stresses. For usage in tools and agricultural devices both in and outdoors. |
60245IEC 53 (H05RR-F)
Dimensions and Specifications:
Cross Section (mm2) |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
2×0.75 |
6.3±0.20 |
26.0 |
2×1.0 |
6.7±0.20 |
19.5 |
2×1.5 |
8.3±0.30 |
13.3 |
2×2.5 |
10.0±0.30 |
7.98 |
3×0.75 |
6.8±0.20 |
26.0 |
3×1.0 |
7.2±0.20 |
19.5 |
3×1.5 |
8.9±0.30 |
13.3 |
3×2.5 |
10.5±0.40 |
7.98 |
60245IEC 57 (H05RN-F)
Dimensions and Specifications:
Cross Section (mm2) |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
2×0.75 |
6.3±0.20 |
26.0 |
2×1.0 |
6.7±0.20 |
19.5 |
2×1.5 |
8.3±0.30 |
13.3 |
2×2.5 |
10.0±0.30 |
7.98 |
3×0.75 |
6.8±0.20 |
26.0 |
3×1.0 |
7.2±0.20 |
19.5 |
3×1.5 |
8.9±0.30 |
13.3 |
3×2.5 |
10.5±0.40 |
7.98 |
60245IEC 66 (H07RN-F)
Dimensions and Specifications:
Cross Section (mm2) |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
3×1.0 |
9.0±0.30 |
19.5 |
3×1.5 |
10.1±0.40 |
13.3 |
3×2.5 |
12.1±0.40 |
7.98 |
