JHS/JHSB Submersible Cable Manufacturers

Name: JHS/JHSB Submersible Cable Manufacturers
Brand: Ronghua
SKU: 112458877
Availability: InStock

JHS/JHSB Submersible Cable Manufacturers thumbnail-1

JHS/JHSB Submersible Cable Manufacturers thumbnail-2

JHS/JHSB Submersible Cable Manufacturers thumbnail-3

JHS/JHSB Submersible Cable Manufacturers thumbnail-4

JHS/JHSB Submersible Cable Manufacturers thumbnail-5

JHS/JHSB Submersible Cable Manufacturers thumbnail-6

JHS/JHSB Submersible Cable Manufacturers photo-1

JHS/JHSB Submersible Cable Manufacturers photo-2

JHS/JHSB Submersible Cable Manufacturers photo-3

JHS/JHSB Submersible Cable Manufacturers photo-4

JHS/JHSB Submersible Cable Manufacturers photo-5

JHS/JHSB Submersible Cable Manufacturers photo-6

US$ 0.1 - 80 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Ronghua

Model Number:

JHS/JHSB

Contact Supplier Request Quote Chat Now

Hebei Ronghua Wire And Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Ronghua

Model Number JHS/JHSB

Insulation Material Rubber

Type Low Voltage

Application Other, submersible pump

Conductor Material Other, Copper, Fine annealed copper class5/6

Jacket Other, Rubber, EPDM, Compound rubber

Product Description

^{Features
Meets the requirement of UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899
600 volts, 90° C Dry & Wet
Designed for heavy duty use
Temperature range -40° to 90°
ROHS compliance (lead free)
Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.
Contraction - Rubber AWG Pump Cables Class C Flexible, bare copper
Insulation : PVC or Rubber
Sheath : PVC or Rubber
Colour Code : Black - Yellow - Red (Without Ground)}
Black - Yellow - Red - Green (With Ground)

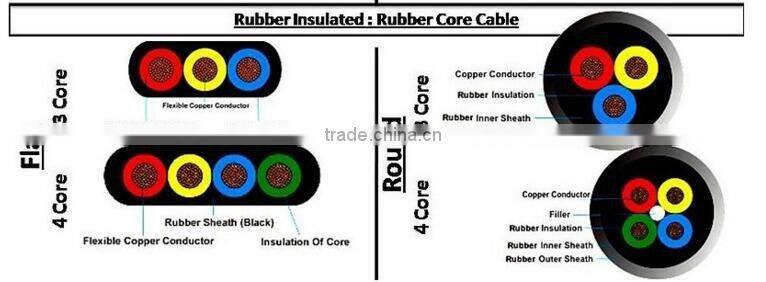

4 core flat type submersible pump cable

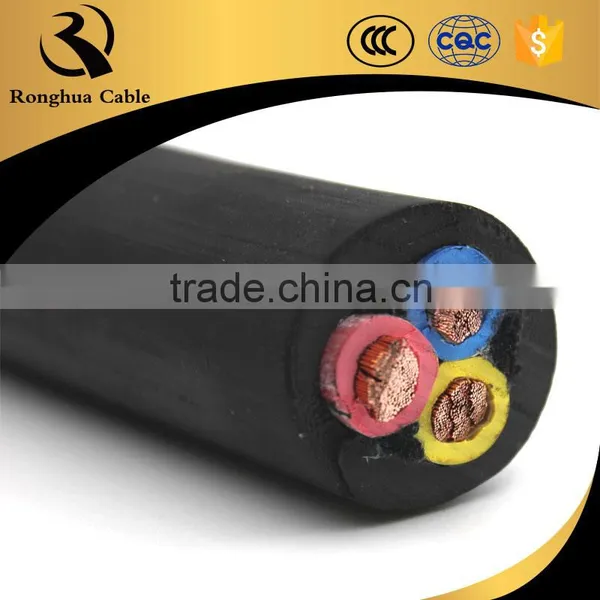

3 core round type rubber sheathed ESP cable

Flat Jacketed Submersible Pump Cables Without Ground
Conductor Size AWG	NO. Of Conductor	NOS OF Dia. Of wire	Core Dia	Sheath Thickness (MM)	Cable Dia.
14	3	41/0.254	3.85	1.15	14.60*6.40
12	3	65/0.254	4.50	1.15	16.80*7.40
10	3	105/0.254	5.30	1.15	18.70*7.90
8	3	168/0.254	6.50	1.40	23.70*9.90
6	3	226/0.254	8.00	1.40	28.00*11.40
4	3	420/0.254	10.10	2.00	35.50*14.70
2	3	665/0.254	11.30	2.00	39.50*16.20
1	3	817/0.254	13.60	2.20	45.50*18.30
1/0	3	1045/0.254	13.60	2.20	45.50*18.30
2/0	3	1330/0.254	16.60	2.20	51.00*20.00
3/0	3	1672/0.254	18.00	2.40	60*23
4/0	3	2116/0.254	19.8	2.65	65*25

Packing & Delivery

Packing

Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Delivery

Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Company Introduction

Hebei Ronghua Wire And Cable Co.,LTD, established in 1984, a professional manufacture of various types cables, mainly rubber sheath flex cable, welding cable, waterproof cable, H/M/L voltage power cables, house wiring electric wire and etc. As a professional Welding Cable Manufacture, we could provide the competitive price and control the delivery in time.
