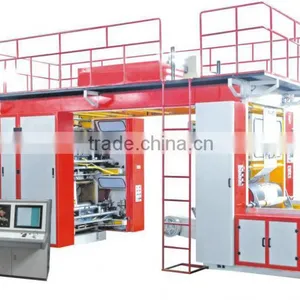

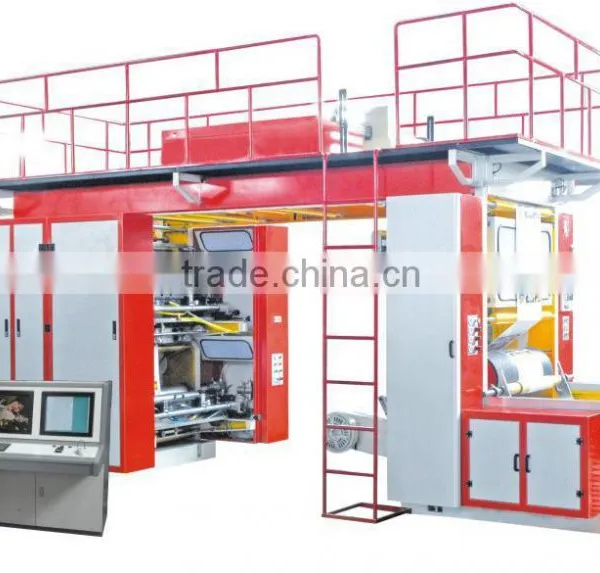

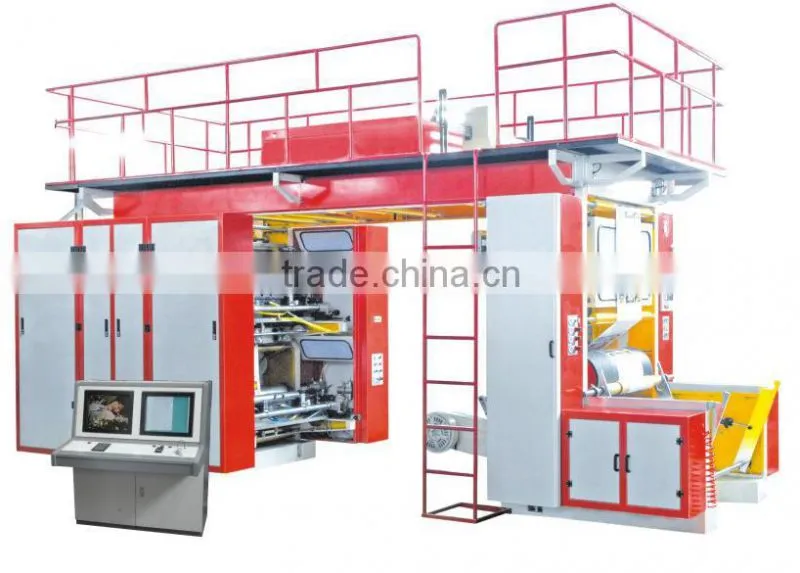

Help Center8colors Flexo Printing Machine for Carton Box
Related Products
High Speed Flexo Print Machine
Detailed Product Description:
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased.
2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Auto tension control
9. Unwind with auto deviation correction system (EPC)
10. EDGE position control
11. Reversible printing 6 colors press for 4+0, 3+1 and 2+2
12.One set printing cylinder on the machine which size is 400mm.
Printing Width |
1000mm |
Printing Length |
1000mm |
Printing Colors |
4+0, 3+1 and 2+2 |
Printing Plate Lifting System |
Hydraulic press control |
Max. Mechanical Speed |
120m/min |
Max. Printing Speed |
100m/min |
Anilox Cylinder |
Ceramic Cylinder |
Register Precision |
Longitude:±0.2mm,Transverse±0.15mm |
Un/rewinder Diameter |
Φ500mm |
Master Motor |
3.7kw |
Unwind Motor |
1.1kw |
Rewind Motor |
1.5kw |
Electrical Heater Power |
18.5kw |
Blower Power |
1.1kw*3 |
Cold Air Blower Power |
0.75kw |
Ink Motor |
0.75kw |
Total Power |
31kw |
Master Frequency Converter |
Delta |
Bearing |
Japan(NSK) |
Weight |
6000kg |
Dimension |
6.1m×2.4m×3.0m |
Last Update Time:2014-05-09
