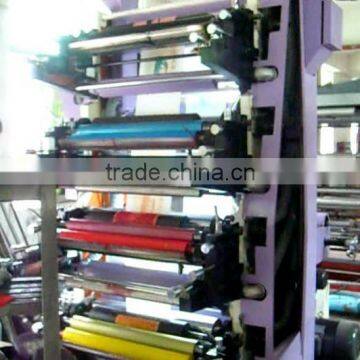

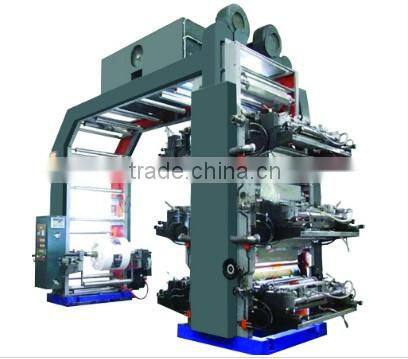

Two Colors Flexographic Printing Machine
a, This machine has these advantages,the contour novel, organization reasonable, advanced technology, simple operation, good quality stable, the printing speed high and scrap rate is extremely low, long life, easy maintenance etc.
b, It adopts Taiwan main motor and line ink motors, Japan frequency control, save electricity, operating small ripple.
c, It uses the Japanese SNK import bearings (one-way bearing USES German).
d, aluminum alloy keep-off device for hard anode oxidation and dynamic balance and static balance processing.
e, equipped with individual drying oven and air cooling finalize the design the bellows, can effectively prevent after printing ink adhesion.
Main Technical Variables:
|
printing width Item |
600mm |
800mm |
1000mm |
1200mm |
1400mm |
1600mm |
Printing length |
7.5"-40"/7.5"-50"/7.5"-60"/7.5"-70"/7.5"-80" |
|||||
Printing possibility |
PC:2+0,1+1 |
|||||
Printing plate lifting system |
Pneumatic/Hydraulic press control |
|||||
Menchanical speed |
80m/min |
|||||
Printing speed |
60m/min |
|||||
Anilox cylinder |
80DK~120DK(Germany) |
|||||
Register precision |
Longitude:±0.25mm,Transverse±0.25mm |
|||||
Rewinder/UnwinderDIA |
φ600mm |
|||||
Master motor |
1.5Kw |
1.5kw |
2.2kw |
3.0kw |
3.7kw |
4.0kw |
Unwinder motor |
0.75kw |
0.75kw |
1.1kw |
1.1kw |
1.5kw |
1.5kw |
Rewinder motor |
1.1kw |
1.1kw |
1.5kw |
1.5kw |
2.2kw |
2.2kw |
Electrical heater |
3kw |
4kw |
5kw |
6kw |
7kw |
8kw |
Blower of heater |
1.1kw |
1.1kw |
1.5kw |
2.2kw |
2.2kw |
3kw |
Inking motor |
1/4PH |
1/4PH |
1/4PH |
1/2PH |
1/2PH |
1/2PH |
Master frequency converter |
2.2kw |
3.0kw |
3.7kw |
4.0kw |
5.5kw |
5.5kw |
Bearing |
Japan(NSK) |
|||||
Unilateral bearing |
ASNU(Germany) |
|||||
Dimension(L×W×H) |
1.9m* 1.7m* 2.5m |
1.9m* 1.9m* 2.5m |
1.9m* 2.1m* 2.5m |
1.9m* 2.35m* 2.5m |
1.9m* 2.6m* 2.6m |
1.9m* 2.9m* 2.6m |
Weight |
2000kg |
2200kg |
2450kg |
2700kg |
3000kg |
3350kg |
Master Power |
8kw |
5kw |
10kw |
14kw |
17kw |
19kw |
