Help CenterTFR7800X FTTB AGC 2 Outputs Optical Receiver
Related Products
-
TON6800E 1GHz FTTH Mini Optical NodeNegotiableMOQ: 1 Set -
TON6800B 2 Power Modules Optical NodeNegotiableMOQ: 1 Set
-
TFR7800F FTTB AGC Optical Receiver(euro Type)NegotiableMOQ: 1 Set
-
TON6800F Two High Level Outlets Optical NodeNegotiableMOQ: 1 Set
-
TON6800H LED Display Optical NodeNegotiableMOQ: 1 Set
Specifications
FTTB Indoor optical receiverEqualizer and Attenuator are adjustable
Optical AGC function
104dBuV single output
SNMP
Feature
l Perfect surge suppression circuit, improved the anti-thunder stroke and surge impact prevention ability
l The input stage adopt imported low noise GaAs amplifier, the output stage adopt imported CATV GaAs high performance chip, improved C/N and the non-line distortion characteristic greatly, simultaneously reduced the power consumption
l Strict reliability test, MTBF is longer than 100,000 hours
l Excellent optic detector: responsibility > 0.9 A/W, light alarm instructions when input power too low
l RF output level and slope are adjustable. Output port 1-2 are available, tap/splitt are available.
l Reserve international standard network interface, easy to field upgrade
l Optical AGC function,the output level changed within ±0.5dB, while input power changed at +1dBm~-6dBm
Brief

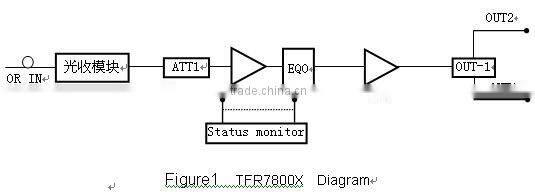

TFR7800X optical receiver can be used for CATV network, digital network and telecom network, especially suitable for optical fiber extends to the building, connect to subscriber’s home directly.
TFR7800X Optical receiver power range is at 1~ -6dBm. When receiver input power at 0dBm, and dual outputs, each RF output level up to 100dBuV; single output level up to 104dBuV; when optical receiver power at -5dBm, C/N > 49dB.
~220V power-supply modes are available, the high-performance transforms circuit become + 24V, + 5V straight to optical receiver internal devices.

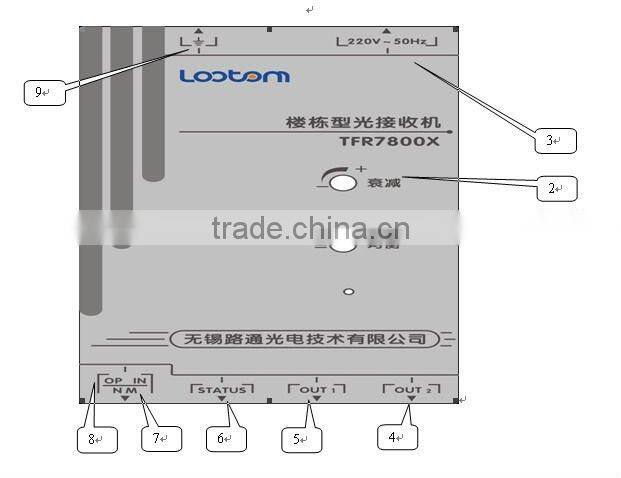

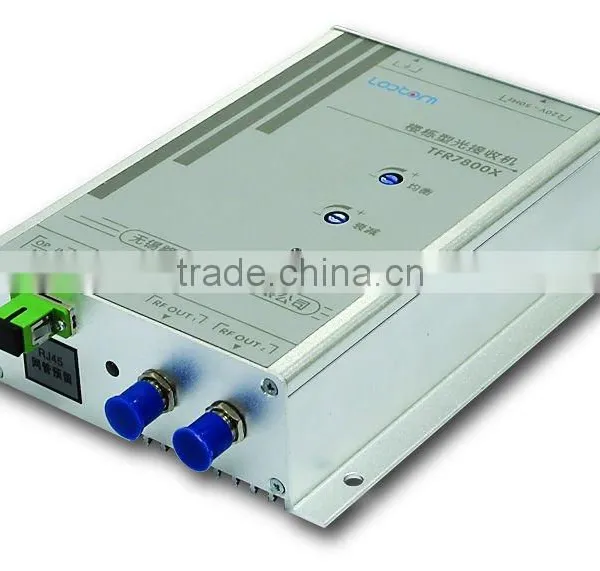

1, EQ(adjustable EQ);2,ATT(adjustable ATT);3,AC220V/IN; 4,Output port 2;5,Output port 1;
6,Optical power indicator(alarm while red light);7,RJ45 interface;8,Optical connector;
9,Earthing
Technique Parameter
Optic |
wavelength |
nm |
1290~1560 |
|
Optical connectors |
|
FC/APC or SC/APC |
|
|
Input power range |
dBm |
1~-6 |
|
|
Input power indicate voltage |
mW/V |
1.0±10% |
|
|
RF |
Frequency range |
MHz |
47~860 |
|
Flatness |
dB |
±0.75 |
|
|
RF ports number |
|
1~2 |
Tap/split outputs are available |
|
Standard output power(at input power 1~ -6dBm) |
dBuV |
104 |
Single output |
|
100 |
Double outputs |
|||
Impedance |
Ω |
75 |
|
|
Gain adjusting range |
dB |
0~20 |
Adjustable continuously |
|
Slope adjusting range * |
dB |
0~18 |
1dB step |
|
Output return loss |
dB |
>16dB |
860MHz bandwidth range |
|
Link |
C/N |
dB |
>50 |
Optical receiver power at-3dBm,single output power at 104dBuV |
CTB |
dBc |
>65 |
||
CSO |
dBc |
>62 |
||
General |
Dimension |
mm |
170×138×46 |
|
voltage |
Vac |
220 |
|
|
Power Consumption |
VA |
<15 |
|
|
working temperature |
°C |
-25~+55 |
|
|
Storage temperature |
°C |
-25~+65 |
|
|
Weight |
Kg |
0.5 |
|
|
note:*means Pre-EQ is 4dB, example; EQ plug is 5 dB , then output EQ 4 + 5 = 9 dB | ||||
