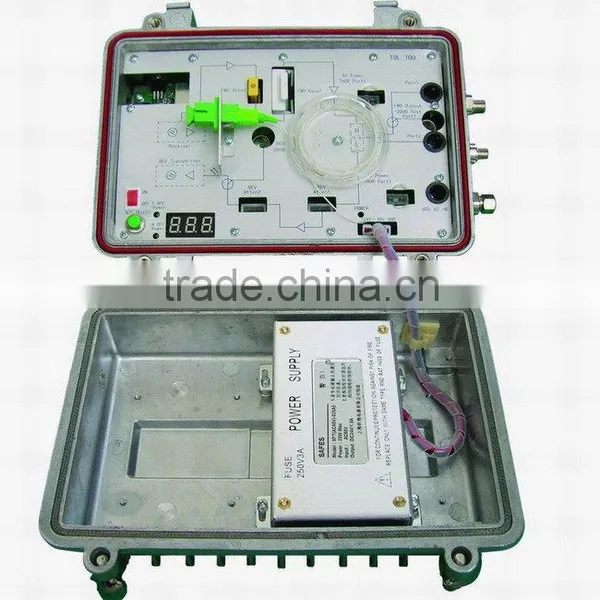

Help CenterTON6800H LED Display Optical Node
Related Products
-
TON6800B 4 High Outputs Big-size Optical NodeNegotiableMOQ: 1 Set -
TFR7800J Indoor 2 Outputs Optical ReceiverNegotiableMOQ: 1
-
TON6800A 4 Way High Outputs Optical NodeNegotiableMOQ: 1 Set
-
CATV Optical Receiver TON6800F LED Dual Outputs Fiber Optical Node CATV Optical ReceiverNegotiableMOQ: 1 Set
-
TON6800H LED Two Outputs Optical ReceiverNegotiableMOQ: 1 Set
Specifications
860MHz, two-way optical nodetwo high level outlets
LED display
108dBuV output level for 2 output ports
FP,DFB,CWDM return
Features
- Excellent photodiode detector
- 1310nm or 1550nm two windows operation
- 750MHz or 860MHz RF passband
- High reliability
- Dual high level output ports, low distortion
- Switching power
- FP or DFB return path optical transmitters available
Diagram
Specifications
Forward Path
Item |
Unit |
Specification |
Remark |
|
Optical |
Optical Wavelength |
nm |
1310 or1550 |
|
Optical Input Power |
dBm |
+1.5 ~ -5 |
|
|
Optical Connector |
|
FC/APC or SC/APC |
|
|
Optical Link |
Frequency Response |
dB |
±1.5 |
|
Output level |
dBµV |
>102 |
Optical power > -7 dBm |
|
Return Loss at Output |
dB |
≥16dB(≤550MHz) ≥14dB(550-860MHz) |
|
|
C/N |
dB |
≥51 |
59 channels PAL-D loaded from 47-550MHz, 104dBuV output,12dB tilted, digital refers to 550-860MHz loading with QAM carriers at –10dB levels relative to analog video carrier levels. |
|
CSO |
dB |
≥60 |
||
CTB |
dB |
≥65 |
||
Reverse Path
Parameter |
Unit |
Specification |
Remark |
|
DFB |
FP |
|||
RF Input |
dBmV |
15 |
15 |
|
Optical Output Power |
mw |
1~4 |
>1 |
|
Input Return Loss |
dB |
<-16 |
<-16 |
|
Flatness |
dB |
±1 |
±1 |
5~200MHz |
C/N |
dB |
>50 |
>45 |
|
CSO |
dBc |
<-51 |
>-45 |
|
CTB |
dBc |
<-55 |
<-45 |
|
Optical Output Power |
mW |
1~4 |
>1 |
|
Flatness |
dB |
±1 |
±1 |
5~200 MHz |
Optical Wavelenth |
nm |
1310 |
1310 |
|
Operation Temperature |
°C |
-20~+55 |
-20~+55 |
|
