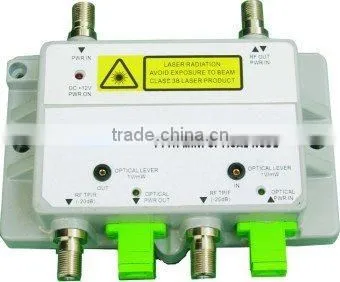

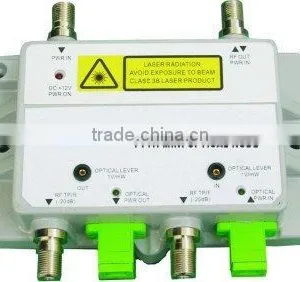

TON6800E is a start-of-art fiber node designed for FTTH applications, offers flexibility in operation and maintenance. GaAs FET technology provide low distortion and flexible input level; low power consumption and surge withstand design; for bi-directional application, the return optical transmitter, 1310nm FP, DFB and CWDM available; The AGC function is specially designed to simplify installation and network maintenance .The AGC circuit compensates changes optical input power within -6dBm~+2dBm providing stable RF output level.
Features
- Work wavelength: 1200~1600nm
- 862MHz Passband, Bi-Directional Transmission, Return Optical transmitter: 1310nm FP,DFB and CWDM Available
- Broad Range Optical Input Power (-8dBm~+2dBm)
- pHEMT GaAs FET Technology.
- Local or Remote Power Supply
- Die-casting Aluminum Housing, Excellent Heat Dissipation Performance
Diagram
Specifications
Forward Path
Item |
Unit |
Description |
Remark |
|
Optical |
Input Optical Power Range |
dBm |
-8 ~+2 |
|
Optical Test Point |
V/mW |
+1V/mW |
|
|
Equivalent Input Noise Current |
|
<4pA /√H |
|
|
Work Wavelength |
nm |
1200~1600 |
|
|
Optical Connector |
|
SC/APC |
others on request |
|
RF |
Bandwidth |
MHz |
54/70/85-1000 |
|
Flatness |
dB |
±0.75 |
|
|
Impedance |
Ω |
75 |
|
|
RF Output Level |
dBmV |
24±2 |
@ -6dBmW, OMI=3.7%/ch |
|
RF Return Loss |
dB |
≥18 |
|
|
RF Test Point |
dB |
-20±0.75 |
|
|
RF Output Stability |
dB |
±0.5 |
|
|
CNR |
dBc |
>46 |
@ 6dBmW |
|
CTB |
dBc |
>70 |
@ 6dBmW |
|
CSO |
dBc |
>65 |
@ 6dBmW |
|
General |
Work Temperature |
°c |
- 40~+60 |
|
Power Supply Voltage |
VDC |
+12 ~+24 |
|
|
Power Consumption |
W |
4 |
|
|
Surge Protection |
KV |
6 |
|
|
Reverse Path
Item |
Unit |
Description |
Remark |
|
Optical |
RF Test Point (@Return Optical Transmitter) |
dB |
-20±0.75 |
|
Laser Type |
|
FP , DFB or CWDM |
|
|
Optical Output Power |
dBmW |
≥0 |
|
|
Optical Power Test Point |
V/mW |
+1V/mW |
|
|
Optical Wavelength |
nm |
1310 |
|
|
CNR |
dBc |
>-45 |
|
|
CTB(FP) |
dBc |
>-45 |
|
|
CSO(FP) |
dBc |
>-45 |
|
|
RF |
Passband |
MHz |
5 to 42/55/65 |
|
Flatness |
dB |
±0.75 |
|
|
Impedance |
Ω |
75 |
|
|
RF Return Loss |
dB |
-16 |
|
|
RF Input Level |
dBmV |
20 |
|
|
