TON6800F Two High Level Outlets Optical Node

Name: TON6800F Two High Level Outlets Optical Node
Brand: Lootom
SKU: 112122103
Availability: InStock

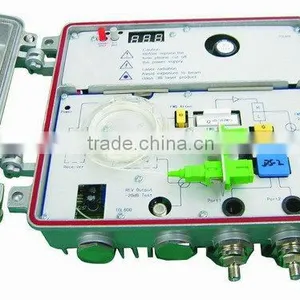

TON6800F Two High Level Outlets Optical Node thumbnail-1

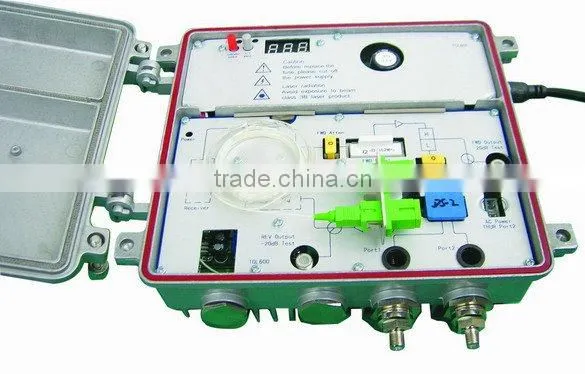

TON6800F Two High Level Outlets Optical Node photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

TON6800F

Contact Supplier Request Quote Chat Now

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number TON6800F

Specifications

TON6800F optical receiver:
Bi-directinal and two high level outlets
AGC is optional
LED indicator
Input power -7~+1.5dBm

Features

· High precision digital LED Indicator, display constantly the forward optical input power level and reverse optical output power.

· Broad range optical input power (-7dBm~+1.5dBm)

· High RF gain and high RF output level (112dBμv)

· Two output ports,DS-2,DC-8,12,16 available

· High power GaAs or power -double technology at output stage

· 220V and 60V power supply available

· 750MHz and 862MHz bandwidth available

· Broad range AGC function (-6dBm~+2dBm) optional. Optical input power AGC (Automatic Gain Control) function, keep RF output level stable(±0.5dB) when optical input power change within the range -6dBm~+2dBm.

Specifications

Forward Path

Item		Unit	Specification	Remark
Optical	Optical Wavelength	nm	1310 or 1550
	Optical Input Power Range	mw	+1.5- -7
	Optical Connector Type		SC/APC	Others on request
	C/N	dB	51	Connected with standard optical transmitter, tested at predicted optical link loss, OMI of optical transmitter 3.6%;loaded 59 PAL-D analogue TV channels, and 33 QAM64 digital CW; the level of digital CW lower 6dB than analogue’s
	CTB	dBc	5
	CSO	dBc	60
RF	Bandwidth	MHz	47/87~750/862
	Flatness	dB	±1.5
	RF Return Loss	dB	<-16	@550MHz
	RF Return Loss	dB	<-14	@862MHz
	RF output level	dBuV	112	@optical Input power -2dBm, and flat output

Reverse Path

Item	Unit	Specifications		Remark
Item	Unit	DFB	FP	Remark
RFInput Level	dBmV	35	35
Output Optical Power	mw	1~4	>1
Input Return Loss	dB	<-16	<-16
Flatness	dB	±1,(5~200MHz)	±1,(5~200MHz)
C/N	dB	>50	>45	1)Four Signals Test:19.25.31.37MHz 2)Two Signal Test: 13,19MHz 3)Test Condition: standard optical receiver, 10dB optical link loss.
CSO	dBc	<-51	<-45
CTB	dBc	<-55	<-45
Optical Wavelength	nm	1310	1310
Work Temperature	°C	-20~+85	-20~+85
