TON6800B Dual Power Modules Optical Node

Name: TON6800B Dual Power Modules Optical Node
Brand: Lootom
SKU: 112122079
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

TON6800B

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number TON6800B

Specifications

4 RF outputs
provied backup and auto-switching function
status monitoring transponder is optional
110--118dBuV output level

Features

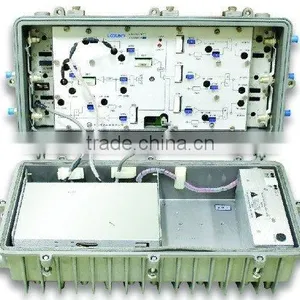

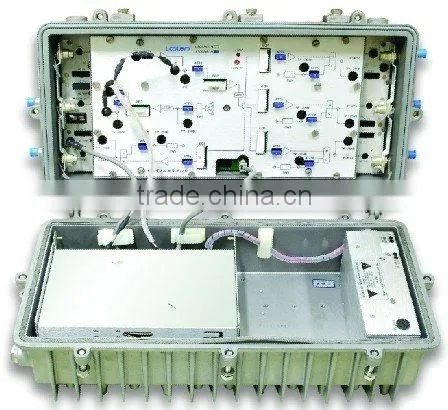

Large aluminum die casting housing, inner structure, excellent waterproof and heat dissipation
Gallium arsenide or silicon bipolar power doubling optional, four ways independent high output,-1dBm, output up to 110~118dBuV
Four way independent reverse channel, independently RF amplify,each RF return port is equipped with 3-state reverse noise reduction switch , plug-in attenuator and total 3-state switch
DNIS(dynamic noise isolation switch) optional
Modular design, online smoothly upgrade and transform
Uplink and downlink RF insertion port enable to receive and return launch variety data
Optical AGC function optional, optical power changes whtin -6~+1dBm ,optical node maintain a constant output level,no more than±0.5dB
Reverse transmit: FP,DFB and CWDM(ITU16 wavelength range) laser optional, “burst mode” component optional(RFoG)
Power, forward optical receive and return optical transmit have redundant hot backup, automatic or manual switching
Open network management transponder options meet the national standard, comply with SCTE HMS and IEC
Excellent surge suppression circuits, improved the resistance to the impact of lighting and the prevention of surge capacity, further enhance the reliability

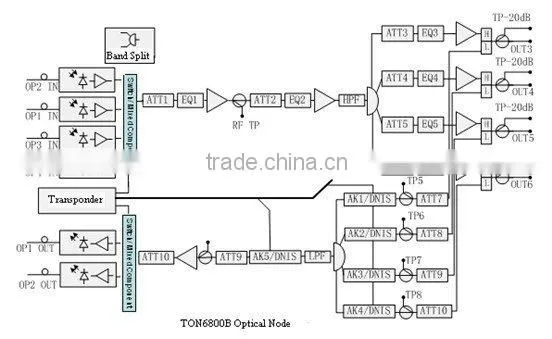

Diagram

Specifications

NO.	Item	Unit	Description	Remark
1	Optical Input Power Range	dBm	-7~+3
2	Optical AGC Control Range	dB	-6~+1
3	Optical Return Loss	dB	>40
4	Equivalent Input Noise Current	pA/	≤8
5	Optical Wavelength	nm	1200~1600
6	Optical Connector Type		FC/APC,SC/APC
7	Frequency Range	MHz	40~862(1000)MHz
8	RF Output Impedance	Ω	75
9	RF Output Signal Level	dBμV	84	2,3
10	Flatness	dB	±0.75	1
11	C/N	dB	≥53.0
12	CTB	dBc	≥67.0
13	CSO	dBc	≥62.0
14	Optical Power Directed Voltage	V/mW	10.0
15	Self-diagnostic Input Optical Power	mW	<0.2±0.02
