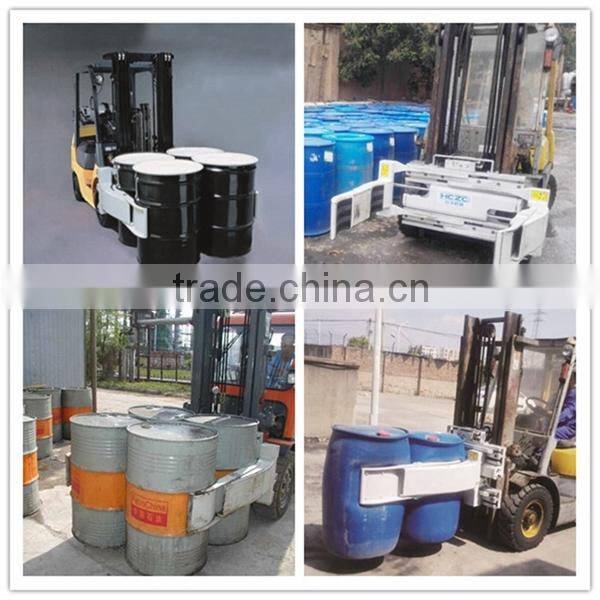

Forklift Drum Clamp
1.Applications:

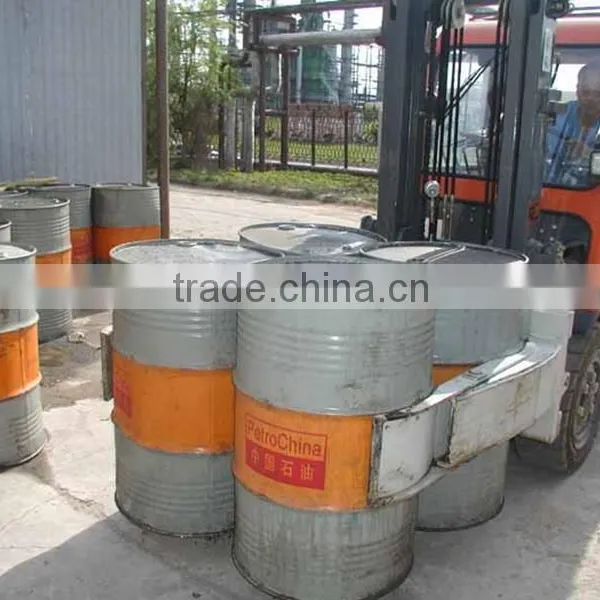

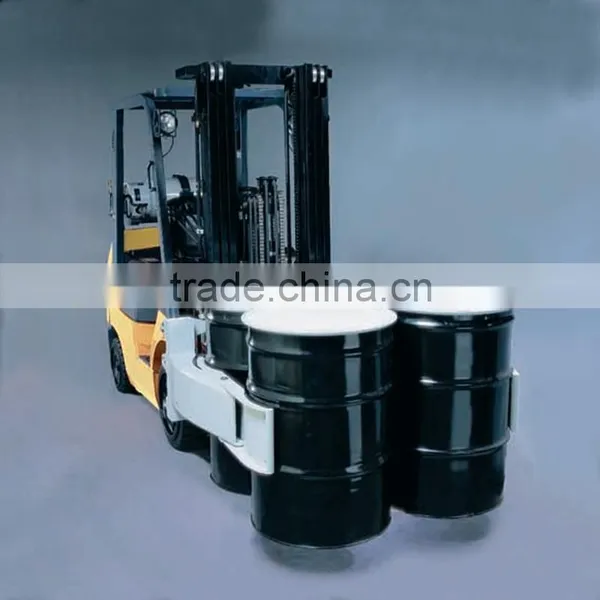

Forklift drum clamps are used wherever product is stored in drums, including the petroleum, chemical and food processing industries.Forklift Four Drums Clamps inprove productivity by allowing a forklift driver to handle up to four drums per load. In addition, the use of a drum clamp allows the driver to securely grip the drums for transporting. This eliminates instability during braking and cornering, which is a common problem when attemping to handle drums with conventional forks.
2.Features:
Proven, durable arm and aluminum frame construction ensuring long, useful life of the clamp.
Superior arm-slide material and design for extended bearing life.
Arm design for handling standard 55-gallon drums.
Replaceable rubber faced arm pads.
Regenerative hydraulic valving for optional arm speed.
3.Specification:
|
Capacity@ Load Center (kg@mm) |
Catalog Order No. |
Mounting Class |
Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity CGH (mm) |
| 2 Drum Sideshift | ||||||||||
| 1400@500 | DTS15D-001A | II | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | II | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS20D-003A | II | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |
| 2 Drum Rotating | ||||||||||
| 1900@500 | DTR20D-004A | II | 520-1750 | 940 | 755 | 815 | 410 | 522 | 241 | 140 |
| 4 Drum Sideshift | ||||||||||
| 1400@500 | DFS15D-005A | III | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | II | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | III | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
| 4 Drum Rotating | ||||||||||
| 1900@500 | dfr20d-008a | III | 460-1690 | 940 | 775 | 815 | 335 | 613 | 239 | 277 |
