Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Injection Equipment > Lab Graphene CVD Tube Furnace System / CVD Graphene Growth / Vacuum Cvd System

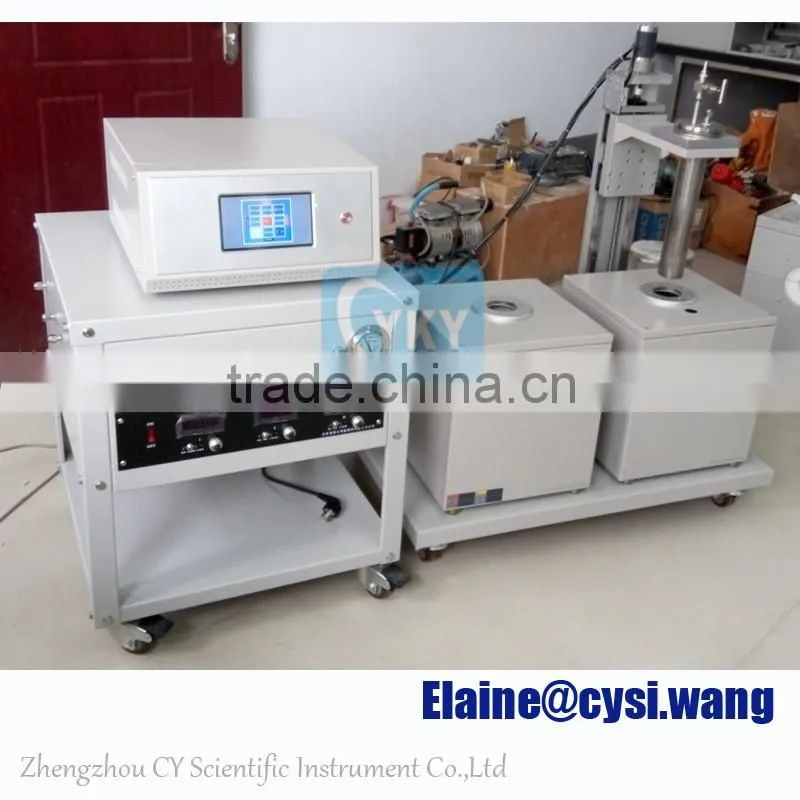

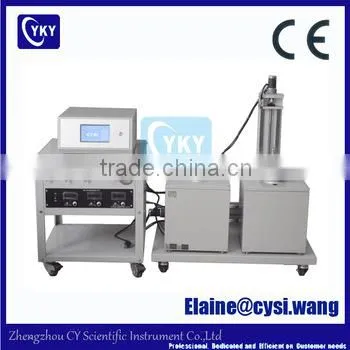

Lab Graphene CVD Tube Furnace System / CVD Graphene Growth / Vacuum Cvd System

Name: Lab Graphene CVD Tube Furnace System / CVD Graphene Growth / Vacuum Cvd System
Brand: CYKY
SKU: 112046077
Availability: InStock

Lab Graphene CVD Tube Furnace System / CVD Graphene Growth / Vacuum Cvd System thumbnail-1

Lab Graphene CVD Tube Furnace System / CVD Graphene Growth / Vacuum Cvd System photo-1

US$ 7,009 - 70,090 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

CYKY

Model Number:

CY-O1200-60-4CLV-PE

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou CY Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhengzhou QingdaoTianjin Beijing Ningbo etc.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name CYKY

Model Number CY-O1200-60-4CLV-PE

Place of Origin Henan, China

lab graphene CVD tube furnace system / CVD graphene growth / vacuum cvd system

Product Description

Featrues of high temperature CVD tube furnace

1.Lower temperature processing compared to conventional CVD.
2.Film stress can be controlled by high/low frequency mixing techniques.
3.Control over stoichiometry via process conditions.
4.Offers a wide range of material deposition, including SiOx, SiNx, SiOxNy and

Amorphous silicon (a-Si:H) deposition.

Technical parmaters of high temperature CVD tube furnace

Plit Tube furnace	Input power: 208 – 240V AC, 1.2kW 1200°C Max. working temperature for < 60 minutes 1100°C Max for continuous heating High purity quartz tube 2"OD x 1.7"ID x 39.4" Length 30 segments programmable precision digital temperature controller 8" (200mm), single zone. 2.3" (60mm) (+/-1°C) @ 1000°C
Plasma RF Generator	Output Power:5 -300W adjustable with ± 1% stability RF frequency: 13.56 MHz ±0.005% stability Reflection Power: 200W max. Matching: Automatic RF Output Port: 50 Ω, N-type, female Noise: <50 dB. Cooling: Air cooling. Power : 208-240VAC, 50/60Hz
Vacuum Flange and Fittings	Vacuum flange set is made of stainless steel 304. Left flange assembly includes a KF-25 vacuum port, two KF-25 quick clamp, A KF-25 right angle valve, a KF-25 vacuum bellows, a flange Support 1/4 O.D Hose fitting, and a needle valve. Right flange assembly includes a digital pirani gauge, 1/4 O.D tube fitting, 1/4" Feedthrough and a needle valve.
Vacuum Pump	AC 220V 50 Hz 1/2HP 375W 2 Liter /S or 120 liter/m Oil trap (inlet) and exhaust filter (outlet) are installed. Max. vacuum: 10-2 torr
Warranty	12 month (exclusive wearing part)

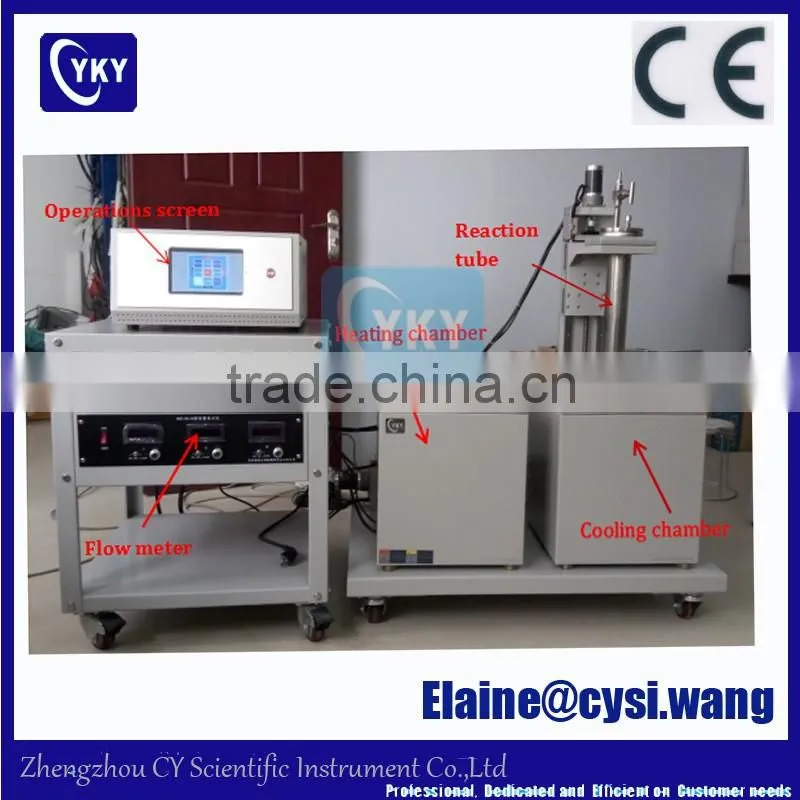

Pictures show of high temperature CVD tube furnace

Touch screen

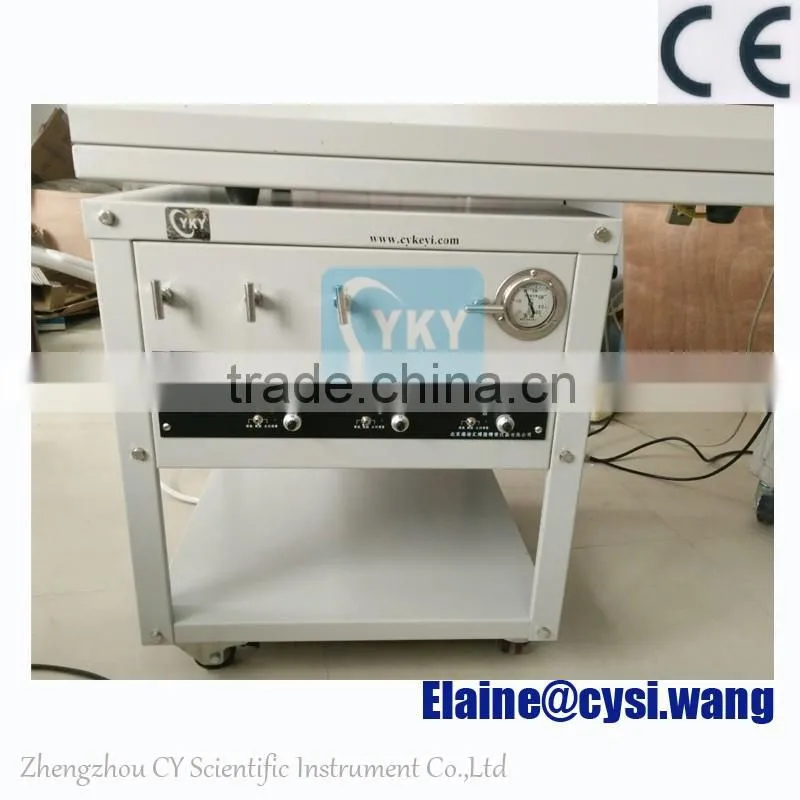

Flow meter

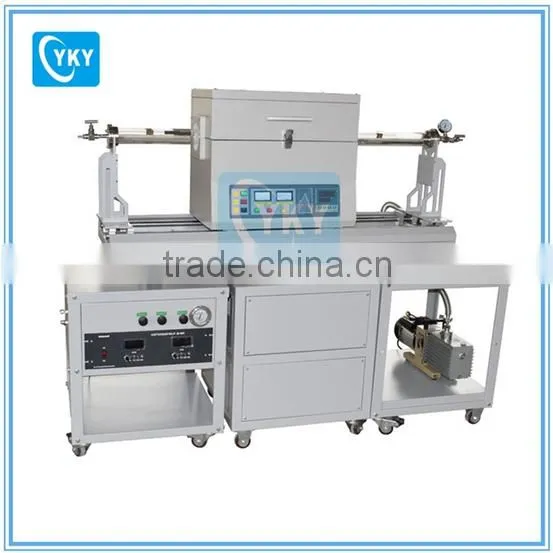

Other type we can manufacture

Packaging & Shipping

Packaging list

Shipping and transportation

As customer request. Generally, Our mode of transport are as by sea, by air or rail transport

Our Services

Payment

T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC

Warranty

Main product is 15 month, except wearing parts.

Company Information

Factory show

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development,design, manufacturing and sales of equipment used in scientific researches,Independence and innovation is the company's tenet..It is a high-tech

companies that engaged in the research and development, design, manufacturing and sales of equipment used in

scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain

furnace, tube furnace,muffle furnace,zirconia sintering furnace,Phosphor powder sintering furnace,crystal

sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc.We determined to do advanced materials preparation equipment manufacturers and suppliers of leader.

Other furnace we can manufacture

FAQ

Q 1.: Are you a trading company or a manufacturer?

A.We are a manufacturer in China and have been in this line for more than 10 years with full experience.

Q 2: What is the essential details for a quotation?

A.Please offer us the furnace size, the work piece size, the max. Temperature, vacuum degree and other special requirement. We can make sure which one is suitable for you. Then we can quote you quickly

Also you can contact us online or send emails to us directly

Q 3: Is it hard to operate &maintain?

A.Our furnace has the PLC controller and intelligent programmable temp. Controller, user can use touch screen to set curves, auto/manual switch interlock, auto &monitor system, it is easy to operate. We prepare enough spare parts for user and on line technical support.

Q 4:How about training?

A.Buyer sent operator to our factory to get trained about the furnace operation, Our engineers offer training in the users working site

Q 5: How long will it take to get the delivery day?

A.Normally it will take 8-20 working days. Also it depends, general model, 1-5 sets, we can delivery within 10 days. Otherwise, we should check the details depend on the quantity and design.

Q 6. How about packaging ?What should I do if machine damaged?
A.Usually machine is packed with wooden case and standard export carton,
plywood carton or as your requirement.Damage haven’t happened before.

If you want to buy high quality furnaces in China.

Just stop searching ! And contact us without hesitation.
