Home > Products > graphene growth system > 2014 CE Certified Single Heating Zone Three Way Graphene Growth System
2014 CE Certified Single Heating Zone Three Way Graphene Growth System
- QINGDAO SHANGHAI TIANJIN NINGBO
- T/T Money Gram Credit Card PayPal
You May Like
-
CE Certified Double Way Graphene Preparation Equipment
-
Plasma Enhanced Chemical Vapor Deposition Equipment/graphene Furnace
-
Plasma Enhanced Chemical Vapor Deposition Equipment PECVD Tube Furnace
-
PECVD System/Graphene Tube Furnace
-
2014 CE Certified Two Way Graphene Growth Furnace
-
4 Gas Way Mass Flow Controller Single Heating Zone System/plasma Sintering Furnace
Product Details
| Brand Name | CY graphene growth system | Model Number | CY-O1200-80IIC 3Z | |
| Place of Origin | Henan, China |
Product Description
2014 CE certified single heating zone three way graphene growth system
Featrues of graphene growth system

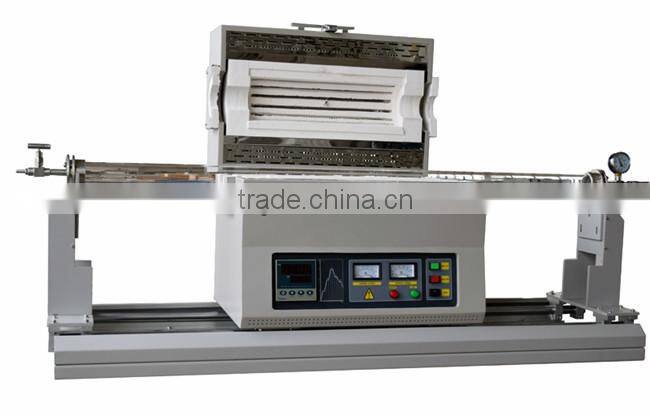

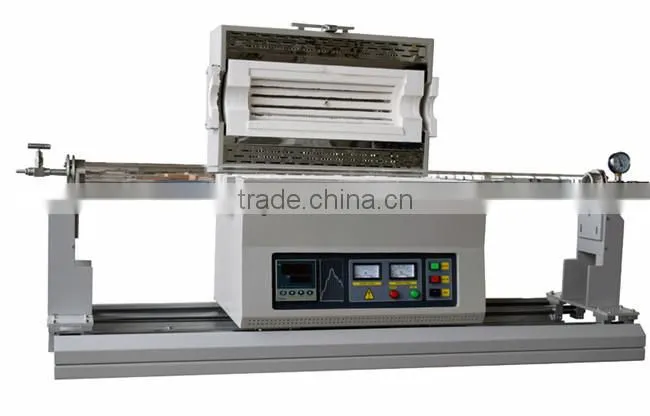

1. upper and lower sub-structure, easy to pick and place tubes
2. high purity quartz tube, resistance high temperature 1200 ℃
3. Programmable and PID automatic control
4. Metal key or touch panel operating interface for your option
5.Imported energy saving chamber material
6. Furnace using double liner structure, the middle has gap isolation, even if the furnace temperature up to 1000 Chang, furnace surface remains safe to touch
7. Furnace is equipped with an output voltage and output current detection table, can see the real time heated condition
Technical parmaters of graphene growth system
| Model | CY-O1200-80IIC-3Z |
| Limiting temperature | 1200℃ |
| Working temperature | ≤1150℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature zone | Single |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ80×1400(mm) |
| Heating element | Imported alloy heating wire |
| Thermal couple | K Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Imported fiber |
| Heating zone | 220mm+220mm |
| Thermostatic zone | 100mm+100mm |
| Tube material | high purity quartz |
| Tube length | 1400mm |
| Sealing type | stainless steel vacuum flange |
| Tightness | 4.03*10-3Pa |
| Current and voltage Monitoring | Analog galvanometer |
| Main power | 4.5kw |
| gas way | 3 gas can be connected(CO2,Ar,H2) |
| A way range(proton flowmeter) | 0-100SCCM |
| B way range(proton flowmeter) | 0-200SCCM |
| C way range(proton flowmeter) | 0-500SCCM |
| Gasline pressure | -0.1-0.15Mpa |
| System vacuum | 5-10Pa |

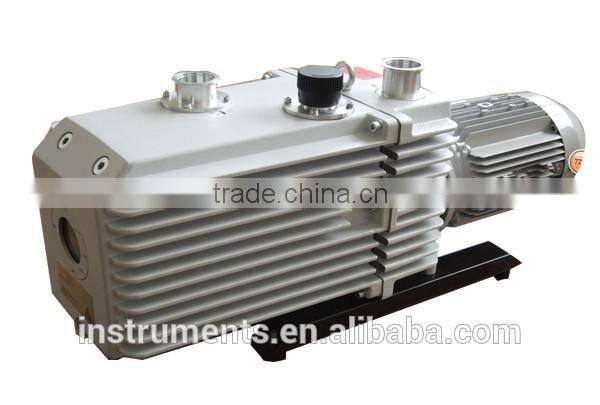

| Pump connection | KF16 stainless steel Bellows, KF16 clamps, KF16 flapper valve |
| Vacuum meter | mechanical vacuum gauges, or electronic vacuum gauges |
| Working voltage | 220V 50-60Hz |
| Standard accessories | Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, 5mm hex wrench |

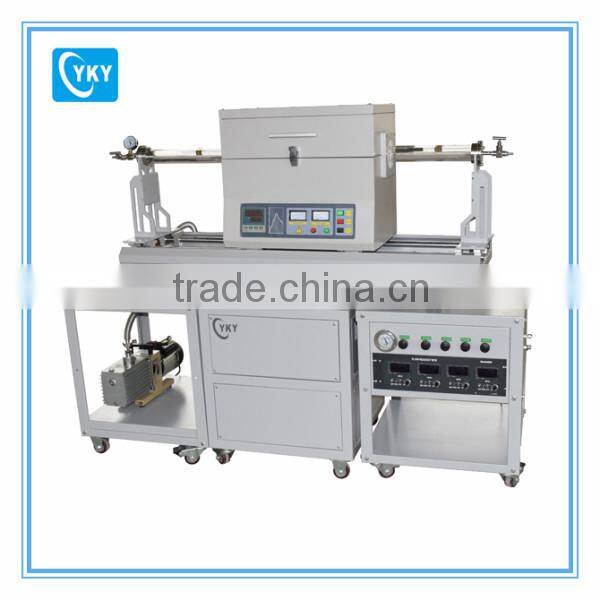

Pictures show of graphene growth system
Packaging of graphene growth system
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12month, except wearing parts.
Wearing parts as below:
Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, hex wrench
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Contact information
Skype ID: jennyhao8819
Whatsapp/wechat/viber:008615639272359
Tel:0086-0371-55199322
Fax:0086-0371-86036875
Website:
We are always at our service in 24 hours
Contact Us
- Zhengzhou CY Scientific Instrument Co., Ltd.
- Contact nameJibin Wang Chat Now
- Phone86-371-55199322
- AddressNo. 820, 8th Floor, 1st Unit, 9th Block, 6 Cuizhu Street, High-Tech Zone, Zhengzhou, Henan, China
