1200°C Max Sliding Tube Furnace (80mm OD) with Flanges for Fast Heating / Cooling - OTF-1200X-80SL

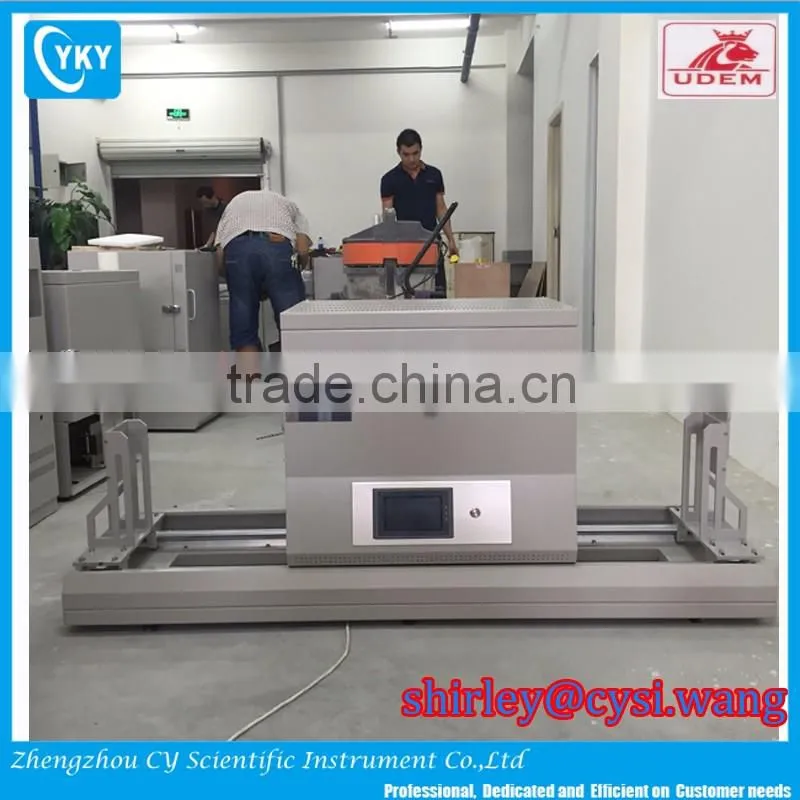

solar RTP tube furnace
Introduction of solar RTP tube furnace
OTF-1200X-80SL is slide-able tube furnace with 3"IDx55" L quartz tube and flanges
and a maximum working temperature up to 1200°C. One pair of sliding rail is installed
on bottom of furnace to allow sliding the furnace from one side to another to achieve max. heating
and cooling rates up to 100°C/min. For fastest heating, the furnace may be pre-heated to a desired
temperature and then be slided to the sample's position. As for fastest cooling, the furnace can be
slided to another side after sample heating is completed. Moreover, the heating and cooling rates
may reach 15°C/s under vacuum or inert gases. This furnace provides an alternative for rapid
thermal processing at the lowest cost.
solar RTP tube furnace
Technical parameters of solar RTP tube furnace
solar RTP tube furnace
Furnace Structure |
Double layer steel structure with dual air cooling fans One pair of sliding rails are installed on bottom of furnace, which allows furnace to be manually moved from side to side Vacuum flanges and a digital vacuum gauge are installed for immediate use. Sliding rail length is about 1200mm, the furnace can slide 600 mm distance |
|||
Power |
2.5KW |
|||
Voltage |
AC 208-240V Single Phase, 50/60 Hz |
|||
Max. Temperature |
1200°C (<1 hour) |
|||
Continuous Temperature |
1100°C |
|||
Heating& Cooling Rates |
|
|||
Heating Zone Length |
440mm ( single zone ) |
|||
Constant Temperature Zone |
120mm (+/-1°C @ 400-1200°C) |
|||
Heating Elements |
Fe-Cr-Al Alloy doped by Mo |
|||
Processing Tube Size |
High purity fused quartz tube Size: OD: 3.2" x ID: 3.0" x Length: 55" (inch) or OD: 80 x ID 75 x Length 1400 ( mm) Two foam ceramic blocks are included which must be placed inside tube to avoid heat radiation damaging O-ring |
|||
Temperature Controller |
PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Built-in over temperature alarm and protection allows for operation without attendant. Two K type thermal couples are included. One is bilt in furnace to control furnace temperature, and another inserted into tube to monitor sample real temperature profile. One NIST certified thermometer is included to connect to the thermal couple inside tube. the meter has RS232 Interface with Windows Software which can record temperature profile by PC. |
|||
Temperature Accuracy |
+/ - 1°C |
|||
Vacuum Flanges |
Stainless steel vacuum flanges are installed on both ends of tube with heavy duty support. Right flange: KF-25 pump connector and needle valve. Left flange: one needle valve and 1/4" thermocouple feed-through and digital vacuum gauge. An 24" length x 1/4" dia. K type thermocouple (included) connected to an Omega temperature calibrator (included) will be inserted through this flange to monitor the heating and cooling rates of the sample's position during furnace sliding. |
|||
Vacuum Level |
10E-5 torr can be reached by molecular pump 10E-2 torr by mechanical pump. |
|||
Sliding Rails / Table |
Double sliding rail made by Cr plated steel Sliding length: 1200 mm |
|||
Dimensions |
550 x 380 x 520 mm ( furnace only) 1500 x 380 x 620 mm ( furnace + sliding ) |
|||
Warranty |
One year limited manufacturer's warranty |
|||
Compliance |
CE Certified |

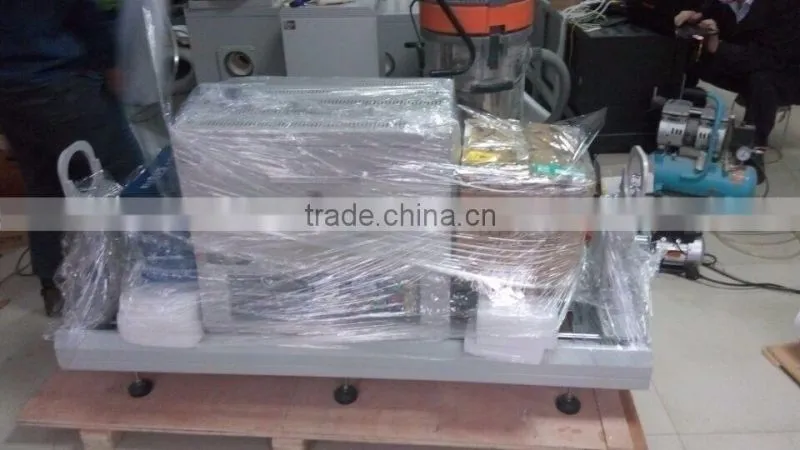

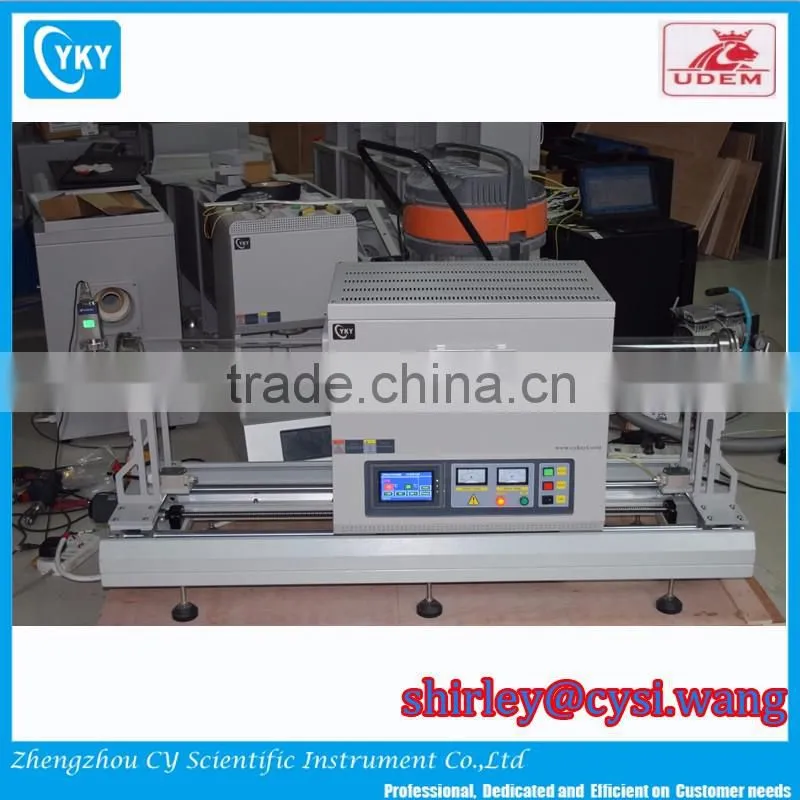

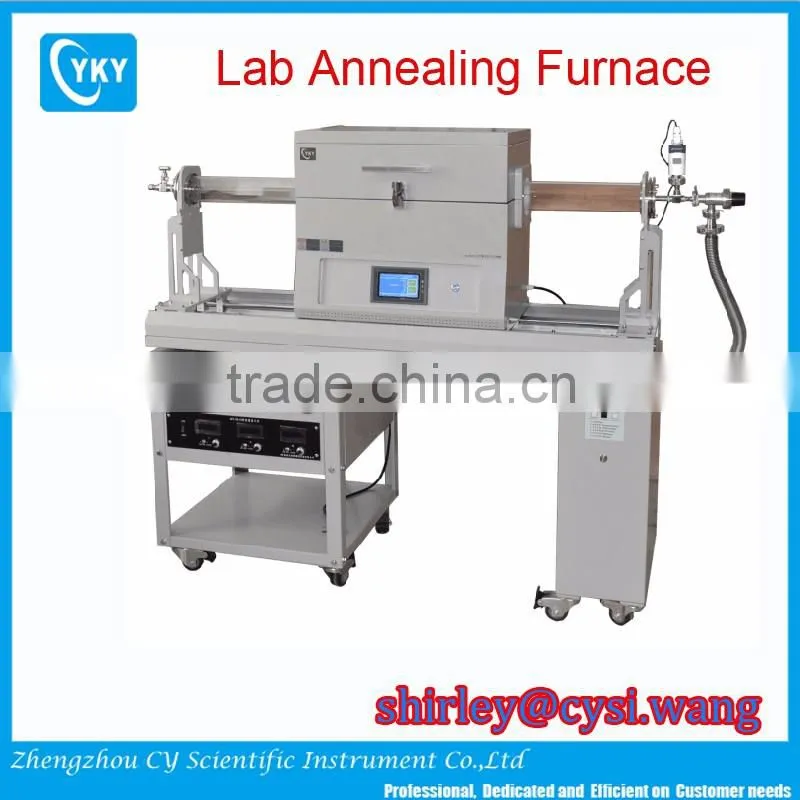

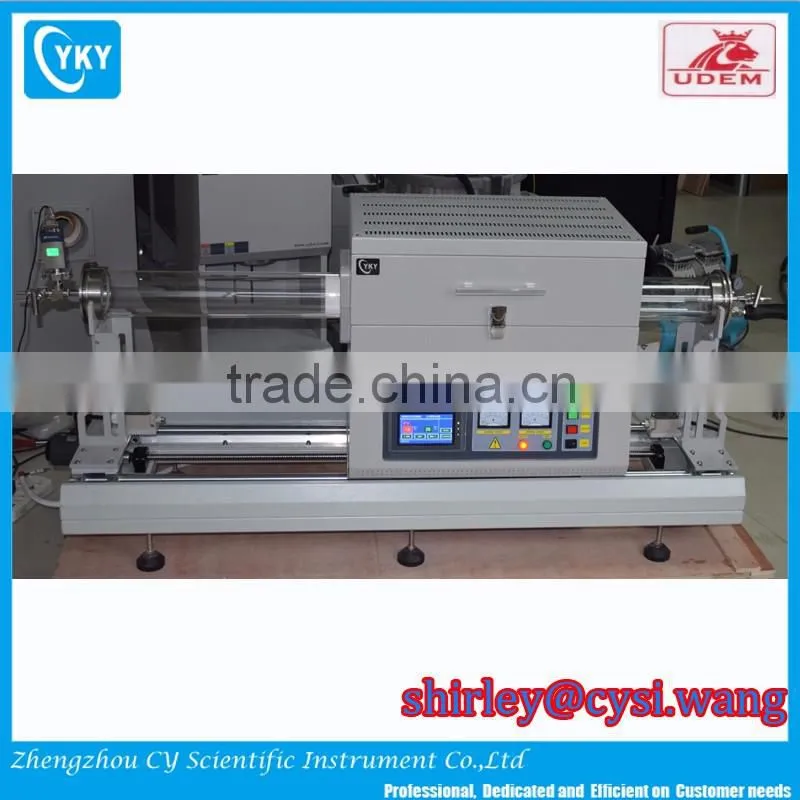

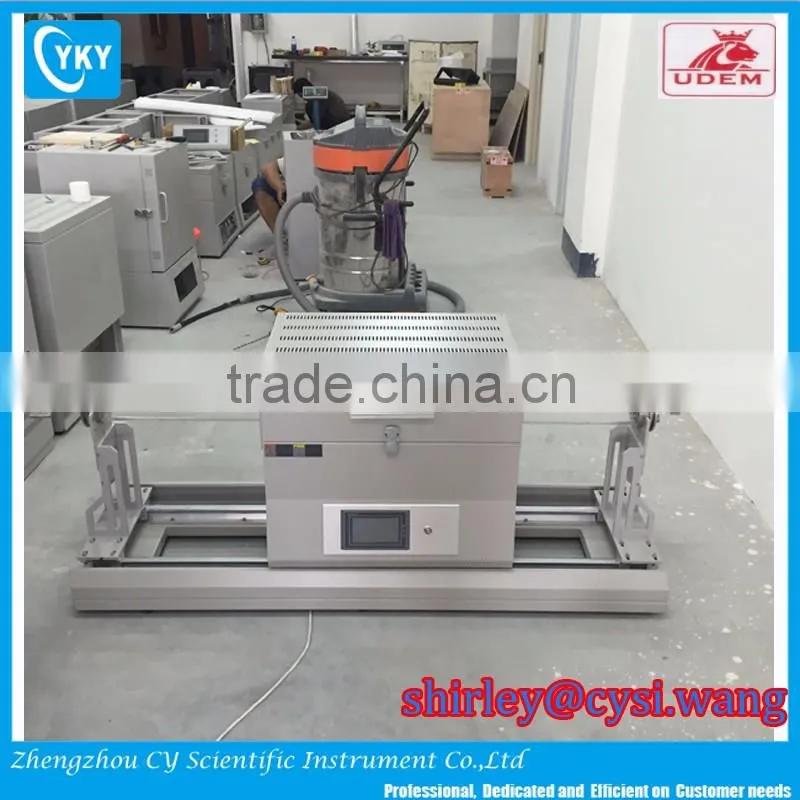

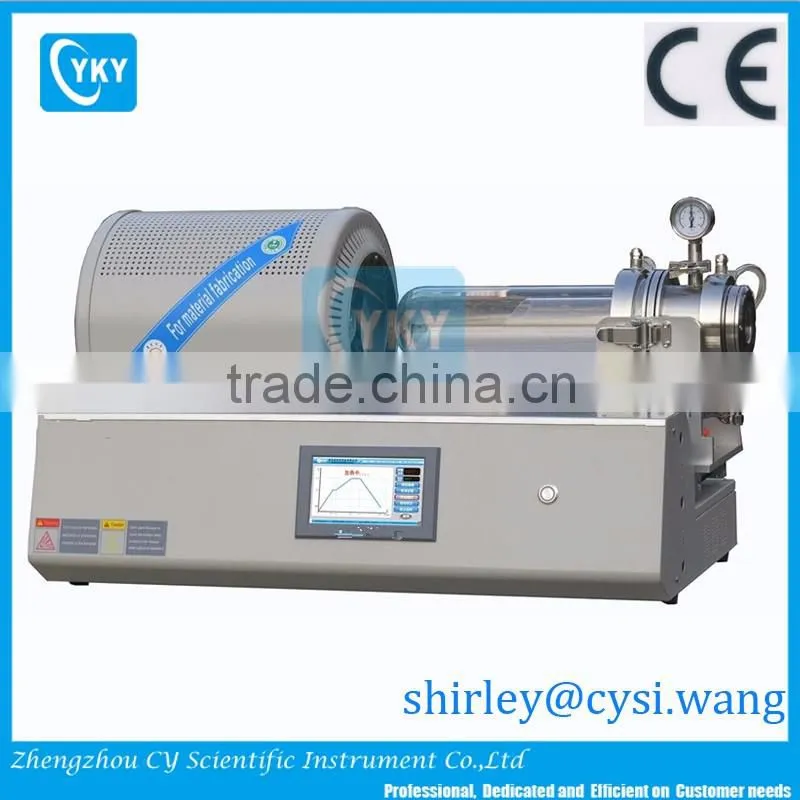

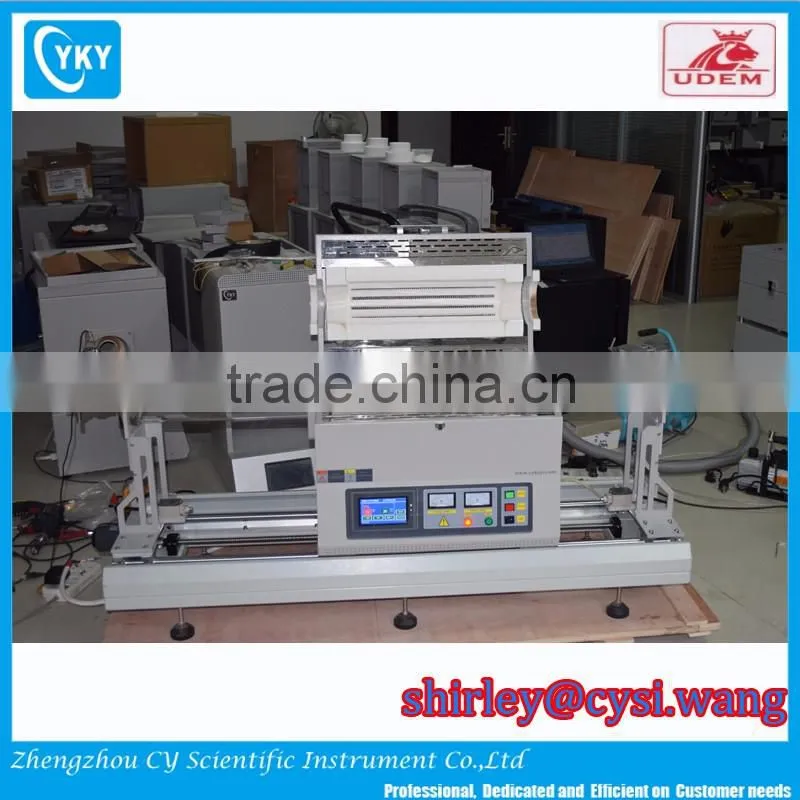

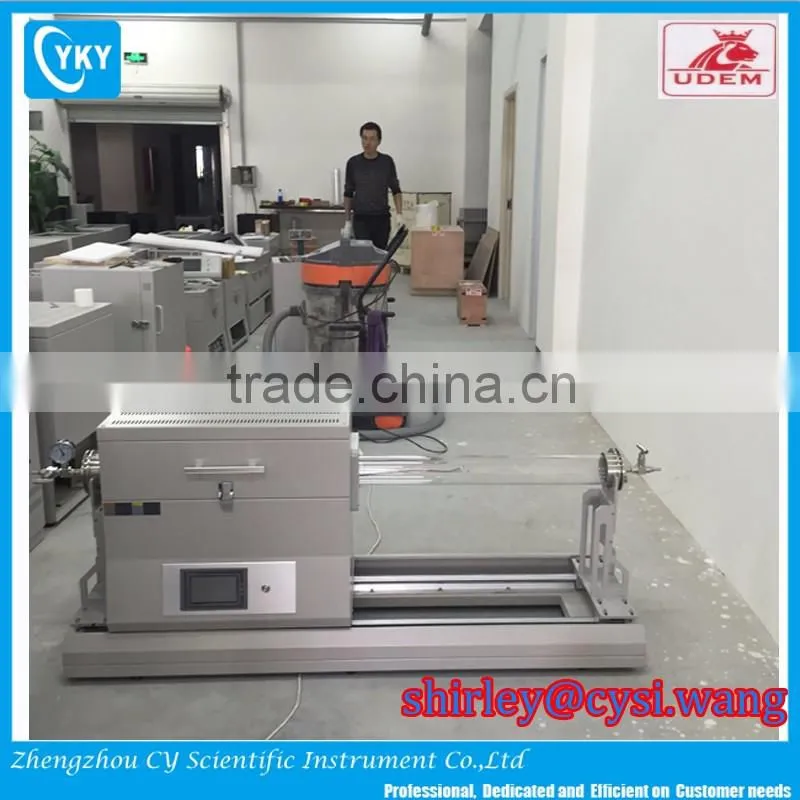

More photos of solar RTP tube furnace
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design,
manufacturing and sales of equipment used in scientific researches. Independence and innovation is the
company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace,
atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
