1200C CVD tube furnace with 3 channel gas mixer lab annealing tube furnace

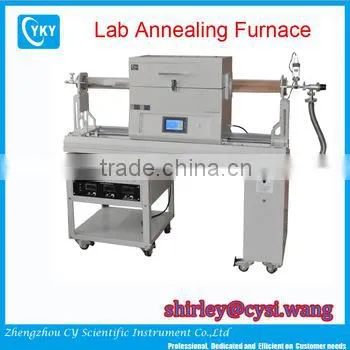

lab annealing furnace
Brief introduction of lab annealing furnace
The system is widely used for various CVD experimental reaction temperature at 1100 ℃,
it can also be used for vacuum sintering,vacuum protective atmosphere sintering nanomaterials
preparation,battery materials preparation and other research field.
lab annealing furnace
Specification of lab annealing furnace
Model |
CY-1200CVD tube furnace |
Chamber type |
Open type |
Display mode |
LED |
Limiting temperature |
1200℃ |
Working temperature |
≤1150℃ |
Heating rate |
≤20℃(suggestion:10℃/min) |
Heating element |
Aludirome |
Heating zone |
Single |
Heating zone length |
440mm |
Furnace tube material |
High purity quartz |
furnace tube diameter |
60mm |
The furnace tube length |
1000mm |
Gas tightness |
Vacuum flange and corundum furnace tube up to 4.03×10-3Pa |
Control mode |
PID Temperature control |
Temperature accuracy |
±1℃ |
Thermal Couple |
K Type |
Working voltage |
AC 110-480V 50Hz~60Hz |
Rated power |
2.5KW |
The flow meter |
Float flowmeter or MFC |
Pneumatic pressure |
-0.1~0.15 MPa |
Warranty |
12 month (exclusive wearing part) |

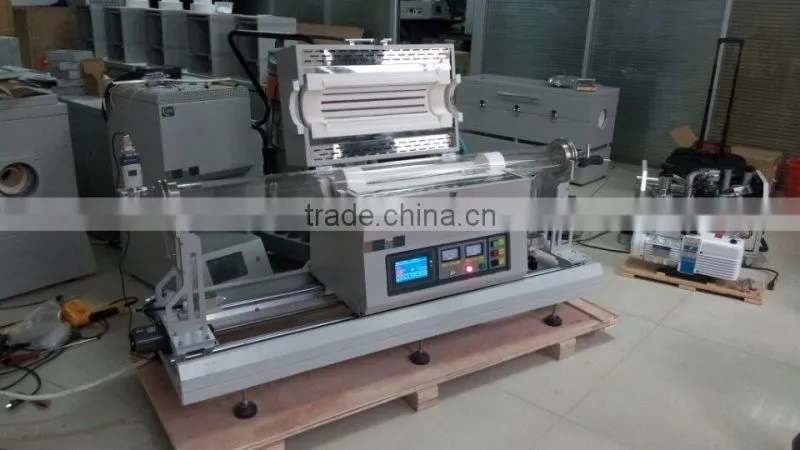

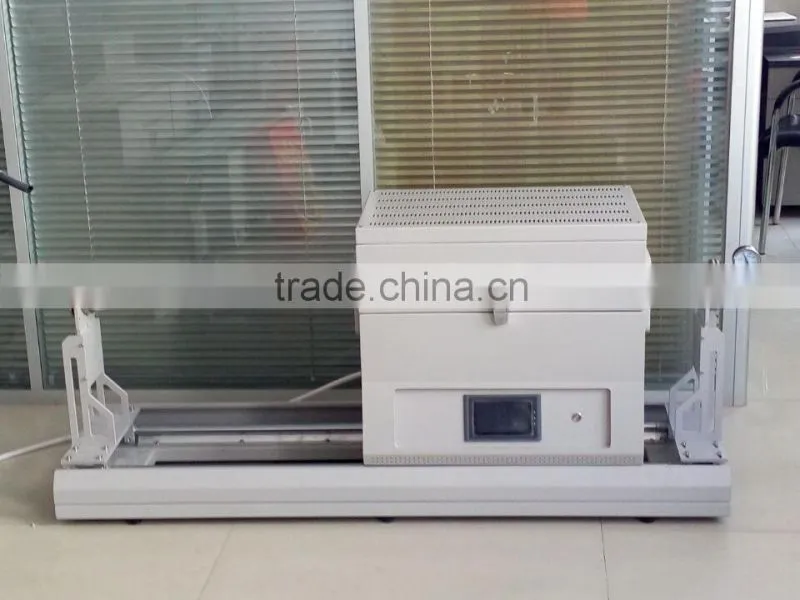

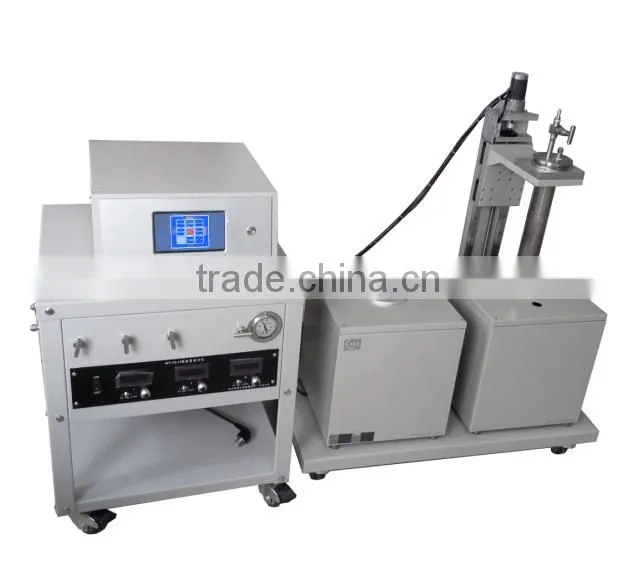

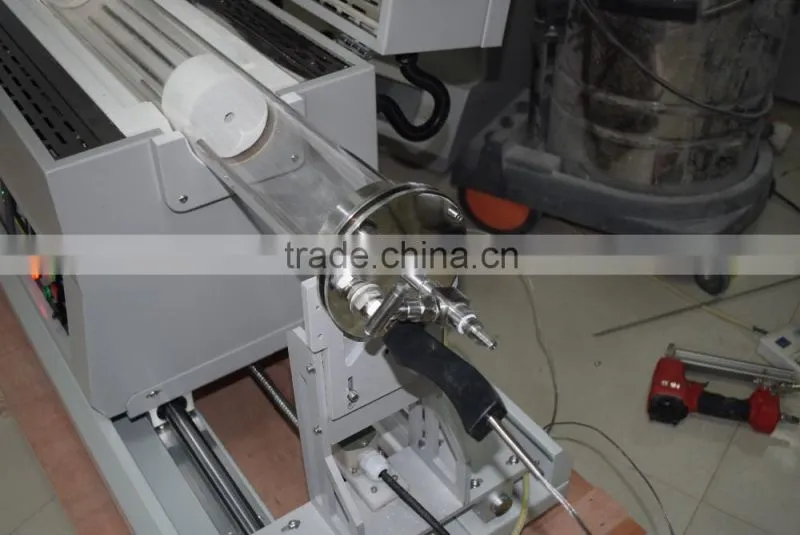

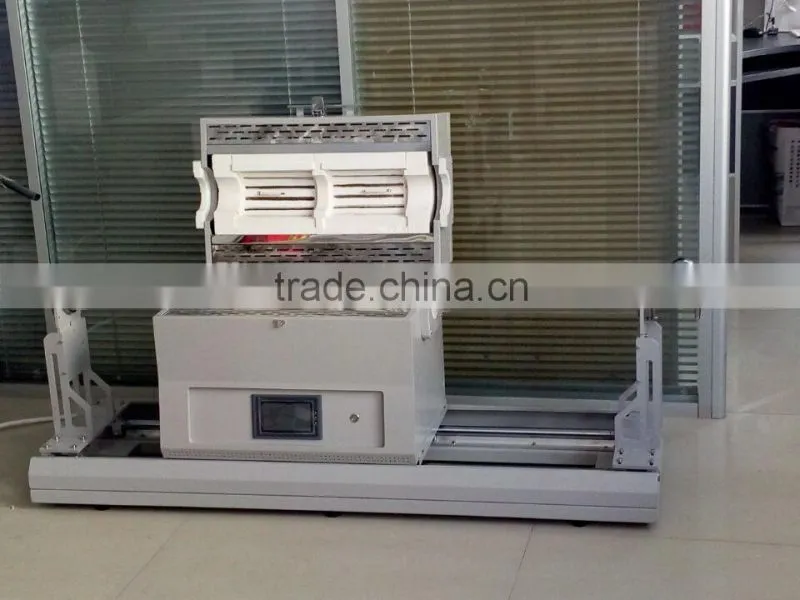

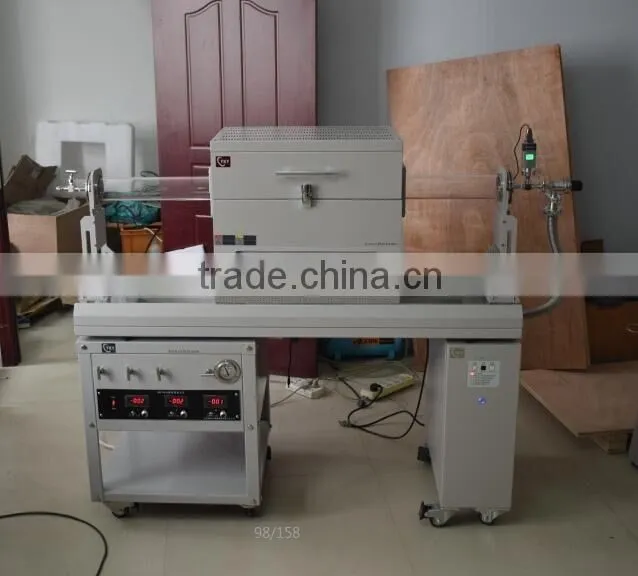

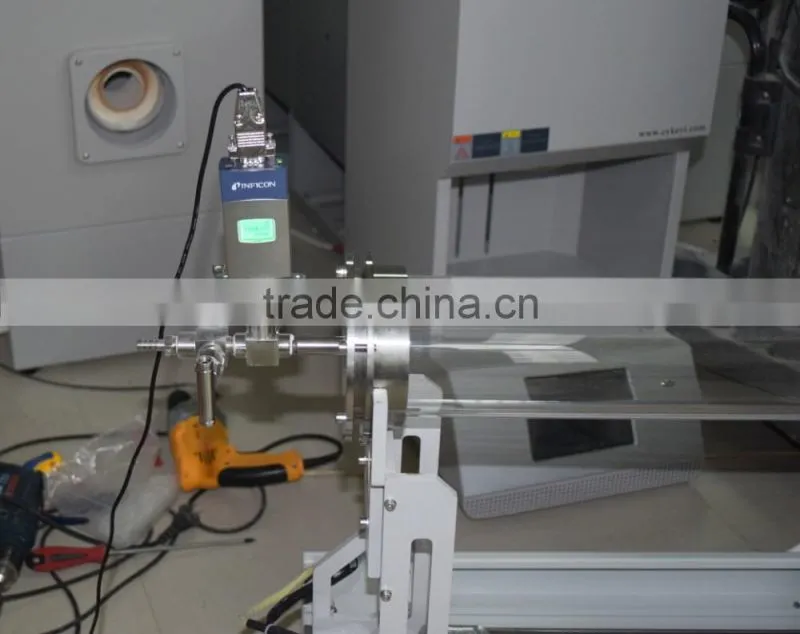

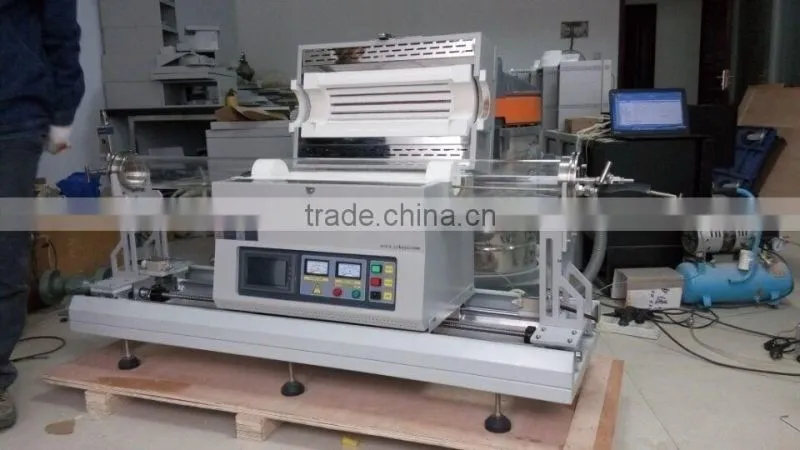

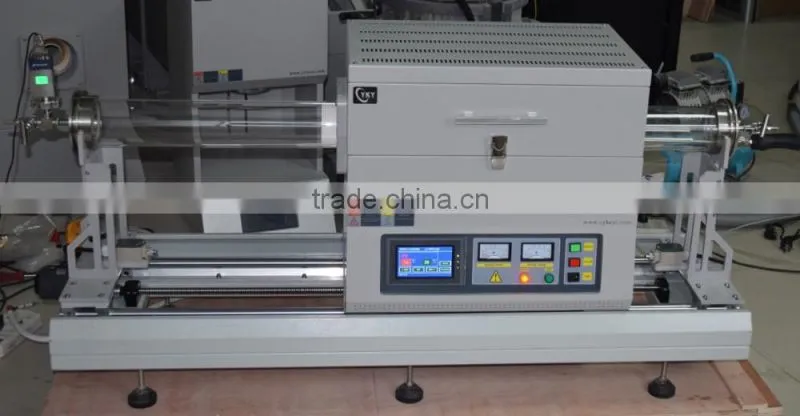

More photos of lab annealing furnace
1.We are a manufacturer so that we have the punctual delivery time.
2.One sales representative serves you from inquiry to products shipped out.Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5.Smooth shipping.
6.Rich experience. We do OEM services.Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8-working-hour
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing
and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main
products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and
customized lab equipment.Welcome you come to visit us.
