Hot labrotary cooler LT -105℃~-60℃ & -120 ℃ ~-70 ℃
Advantage:
.Saving resources;
.closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid.
Technical Parameters for chiller:
Model |
LT-A025WN |
LT-A050WN |
LT-A080WN |
LT-A215WN |
LT-A230WN |
LT-A255WN |
|
Medium Temperature Range |
-105℃~-60℃ |
-105℃~-60℃ |
-105℃~-60℃ |
-120℃~-70℃ |
-120℃~-70℃ |
-120℃~-70℃ |
|
Temp. control |
ASET multifunctional controller |
||||||
Temp. control optional |
Heat-conducting medium outlet temp. control |
||||||
communication protocol |
MODBUS RTU Protocol, RS 485 Interface |
||||||
Temp. feedback |
Heat-conducting medium temperature feedback PT100 |
||||||
Cooling capacity |
-60℃ |
2.5kW |
5kW |
8.6kW |
|
|
|
-75℃ |
1.3kW |
3kW |
5kW |
1.2kW |
2.4kW |
4kW |
|
-95℃ |
0.7kW |
1.4kW |
2.3kW |
0.7kW |
1.4kW |
2.1kW |
|
-110℃ |
|
|
|
0.3kW |
0.55kW |
0.95kW |
|
Circulation pump |
Max20L/min 0.7BAR |
Max35L/min 1BAR |
Max75L/min 1BAR |
Max20L/min 0.7BAR |
Max35L/min 1BAR |
Max35L/min 1BAR |
|
capacity of liquid storage |
15L |
20L |
35L |
20L |
30L |
30L |
|
Compressor |
Tecumseh |
Copeland |
Copeland |
Copeland |
Copeland |
Copeland |
|
Evaporator |
Plate heat exchanger |
||||||
Operating controller |
7-inch color touch screen display, temperature curve record, excel format export |
||||||
Security protection |
Self-diagnosis function; freezer overload protection; high pressure switch; overload relay, thermal protection device etc. security protection function. |
||||||
Refrigerant |
R-404A |
||||||
Connection size |
DN-15 |
DN20 |
DN20 |
DN20 |
DN20 |
DN-20 |
|
Product size (water-cooled) |
500*680*1350 |
600*700*1650 |
700*700*1650 |
600*700*1650 |
700*700*1650 |
1000*900*1650 |
|
Weight (water-cooled) |
235kg |
320kg |
455kg |
340kg |
380kg |
480kg |
|
Power |
AC380V 50HZ 5.5kW (max) |
AC380V 50HZ 7.5kW (max) |
AC380V50HZ 11kW (max) |
AC380V 50HZ 6kW (max) |
AC380V 50HZ 9.5kW (max) |
AC380V50HZ 14kW (max) |
|
Material |
Cold rolled steel painting |
||||||
Optional |
Match 7-inch color touch screen controller, temperature curve record, data export to excel format. |
||||||
Optional |
Circulation Pump Optional: 35L/min 2.5bar 50L/min 2.5bar 110L/min 2.5bar |
||||||
Optional |
SUS304 material |
||||||
Optional |
Pressure <6 bar circulating pump |
||||||
Optional Power |
220V 60HZ three-phases, 440V~480V 60HZ three-phases |
||||||
Remark |
Can make the bigger capacity of water storage as required. |
||||||

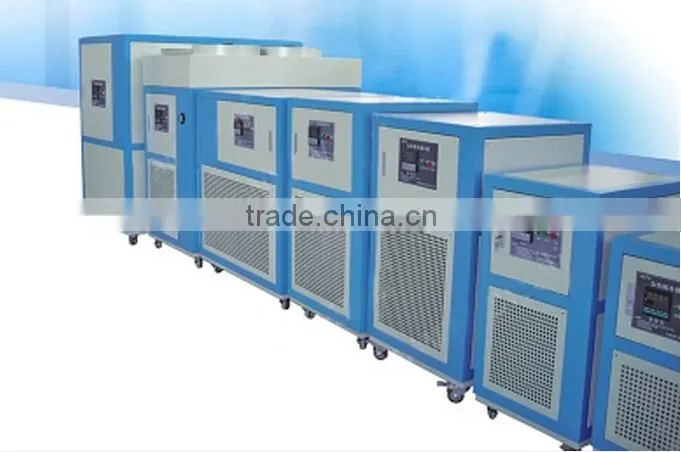

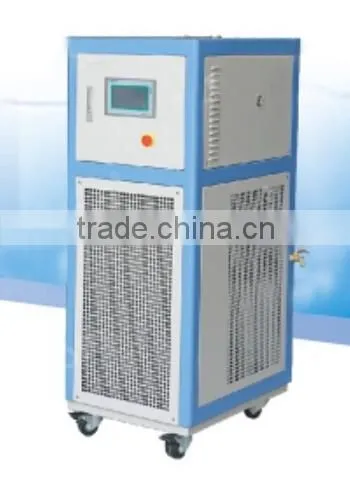

Photo for temp control system
Packing of temp control system
