DY-JDG600 thermocouple calibration furnace is an electric heating device that provides heat source for thermocouples. It is mainly composed of furnace heating elements, insulation layer shell and other parts. The calibration furnace is divided into vertical furnace and horizontal furnace, and is divided into short furnace and longfurnace according to the appearance shape. This calibration furnace is used in the range of (300℃-1200℃) and includes horizontal tubular thermocouple calibration furnaces with and without temperature controllers, providing temperature field. It is used to calibrate thermocouple thermal resistors, which are divided into precious metal thermocouple calibration furnaces and cheap metal thermocouple calibration furnaces, short thermocouple calibration furnaces.
Implementation Procedures
JJF1637-2017 "Calibration Specifications for Cheap Metal Thermocouples"
JJG351-1996 "Verification Procedures for Cheap Metal Thermocouples for Work"
JJG75-95 "Verification Procedures for Standard Platinum-Rhodium 10-Platinum Thermocouples"
JJG141-2000 "Verification Procedures for Precious Metal Thermocouples for Work"
JJF 1184-2024 "Technical Specifications for Temperature Field Test of Thermocouple Verification Furnace"
Product Parameters
Model |
DY-JDG600 |
Temperature range |
300-1200℃ |
Heat source |
electric heating |
Uniform temperature field |
The temperature difference between any two points within 30mm of the effective working area is not more than 0.5℃; The temperature difference between any two points in the same cross section within a radial radius of not less than 14mm is not more than 0.25℃ |
| Furnace length | 600mm |
Furnace mouth |
30mm |
Overall dimension |
690×320×330 |
Power consumption |
3000w |
Power supply |
220V 50HZ |

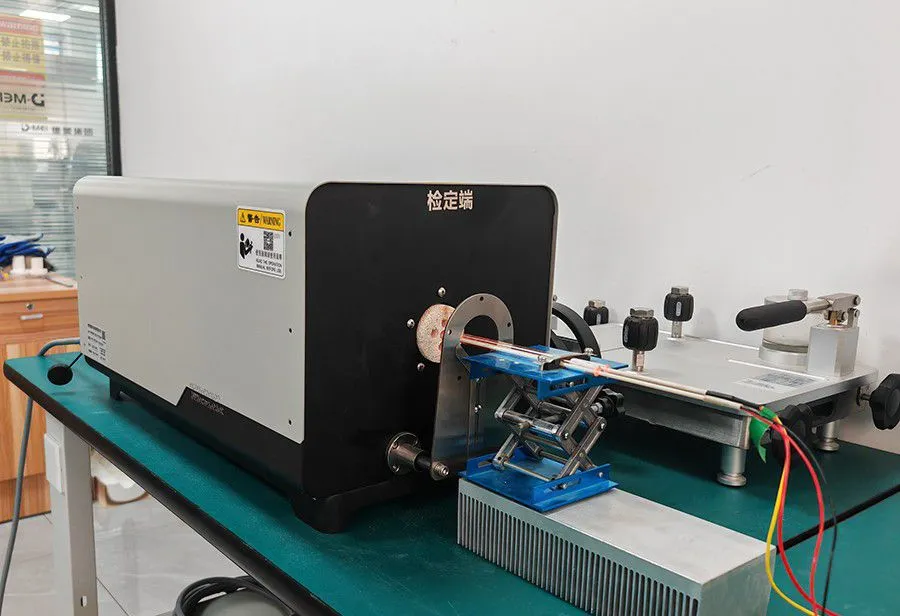

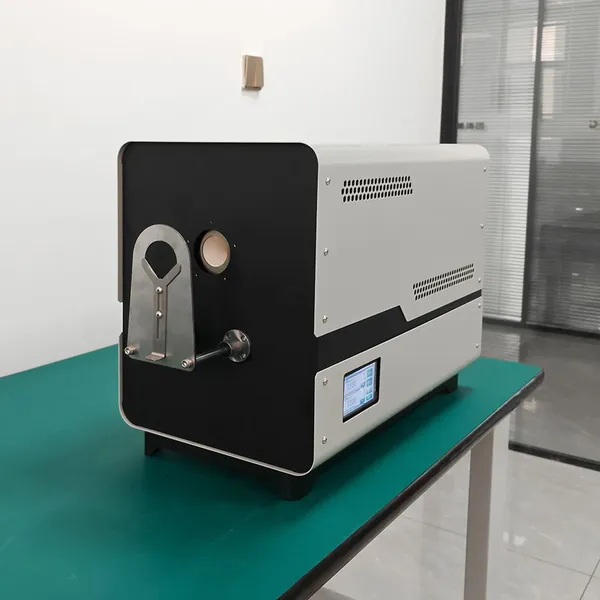

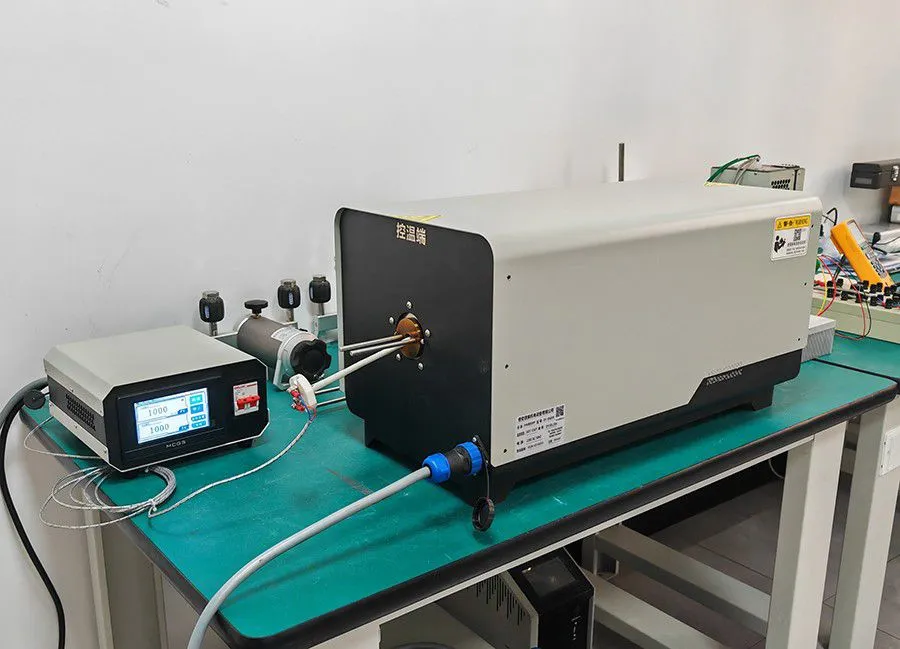

Product photos
