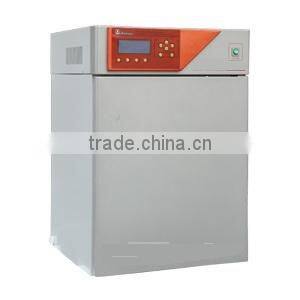

Laboratory Water-jacket or air-jacket heating cheapest CO2 Incubator price

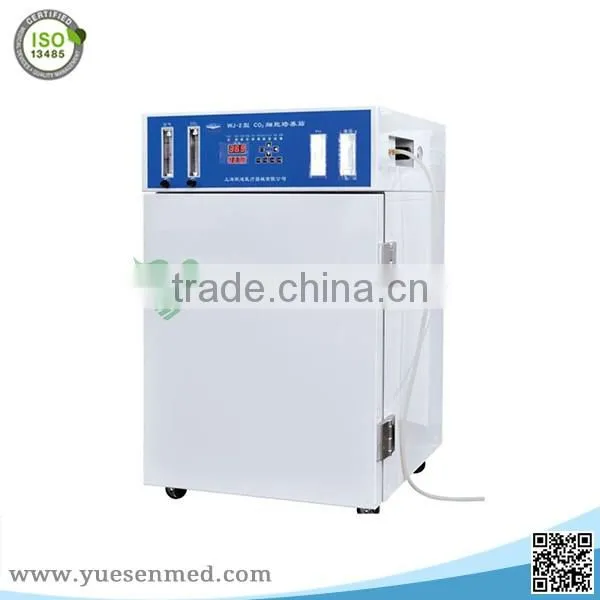

Model:WJ-2
The CO2 cell incubator is designed specially to be used for animal cell and organization culture, as well as common microorganism culture. It is widely applied in medical institutes, life sciences, immunology, genetics, medicine, etc.
Structure features:
1. Water-jacket or air-jacket heating.
2. High quality stainless steel working chamber.
3. Forced convection for an even temperature and CO2 concentration.
4. Convection and heating will be automatically off to prevent contamination when door is opened.
6. Temperature adopts microcomputer data analysis and P.I.D controller ,which is accurate and interference-free.
( For water-jacket type, there are 3 sensors separately for work room temperature, water temperature and door temperature. For air-jacket, there are 2 sensors for workroom temperature and door temperature. )
7. Touch button, and digital display with LED indication.
8. Self protection for over-temperature, water-shortage and gas-shortage.
9. Ultraviolet disinfection light tube to prevent contamination.
10. Natural evaporation to guarantee the humidity in working chamber
Gas mixture:
Gas proportion type. The CO2 gas and air are mixed proportionally at will. The Direct reading with needle valve glass rotameter is easy to read with accurate scale.
Model |
WJ-2-80 |
WJ-2-160
|
|
Heating type |
Water-jacket |
||
CO2 control type |
Gas proportion type |
||
Alarm function |
Over-temperature alarm, temperature sensor error alarm, water-shortage alarm |
||
Temperature range |
RT+3°C~60℃ (Room temperature: 5°C~35℃) |
||
Temperature control type |
P.I.D |
||
Workroom Convection |
Small flow forced convection |
||
Temperature fluctuation |
≤± 0.2℃ |
||
Temperature uniformity |
≤± 0.3℃ |
||
Timing range |
Continuous working or 1~9999min |
||
Humidification type |
Water plate natural evaporation |
||
Disinfection type |
UV light |
||
Outline dimension (cm) |
57×59×93 |
67×64×111 |
|
Chamber dimension (cm) |
41×40.5×51 |
50.5×45.5×70 |
|
Capacity (L) |
80 |
160 |
|
N.W./G.W. (kg) |
60/90 |
80/115 |
|
Rated power (W) |
600 |
900 |
|
|
Shelves (standard setup) |
2 |
3 |
|
Material |
Outer shell and door: Cold-rolled plate powder coated Internal working chamber: Stainless steel Inner door: Tempered glass Heat insulation: Centrifugal glass fiber |
||
High performance 80L 600W Carbon dioxide incubator
Good price incubator co2
APPLICABLE SCOPE:
The CO2 incubator is a kind of advanced instrument for cells, tissues and bacteria cultivation, a key equipment for the development of immunology, oncology, genetics and biological engineering. It is extensively applicable in the research and production of micro organism, agricultural sciences and pharmaceutics.
PRODUCT CHARACTERISTICS:
The shell is made of cold-rolling steel with static spray plastics, the working chamber is made of mirror stainless steel, the shelves can be adjusted optionally;
Intelligent control, LCD screen can display temperature, humidity and CO2 concentration;
Sound and light alarm function when over-temperature;
Imported IR CO2 concentration sensor which has a precise sensitivity;
UV light that can kill bacteria, mould and mycoplasma effectively;
HEPA offers a filtration efficiency of 99.998% for 0.3μm particulate;
Imported centrifugal fan with low noise and long life, heat quickly with good uniformity;
Imported humidity sensor, humidity can be displayed real-time;
Sound and light alarm function when over-temperature, two control systems, the assistant control system will play the monitoring role when the main control system is invalidated;
Door heating control system can avoid frost phenomenon on the inner glass door;
Special technics to ensure good seal of the working chamber and keep the concentration for a long time;
Be equipped with RS-485 interface which can be connected with computer or recorder;
The function of parameters memory and recovery for date protection caused by power failure or system halted.
Options: One choice from three: printer (can print into curve), GPRS SMS Alarm, computer monitoring.
TECHNICAL PARAMETERS:
Model: YSIB0101-W (Water-jacket IR)
Power Supply: AC 220V±10%/50Hz±2%
Power: 600W
Heating Method: Water-jacket
Temp. Range: RT+5℃-60℃
Temp. Resolution: 0.1℃
Temp. Fluctuation: 37℃≤±0.1℃
Temp. Uniformity: 37℃≤±0.3℃
CO2 Range: 0-20%
CO2 Control Method: IR
CO2 Recovery Time: ≤concentration×1.2min
Humidify Method: Natural Evaporation
Volume: 80L
Working Chamber (mm): 420×400×550
Overall Size (mm): 562×521×960
Shelves: 2pcs
Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.
