Low temperature circulator LT -50℃~30℃
Feature of low temperature circulator
1.Saving resources;
2.closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid.
Technical Parameters of low temperature circulator:
Model |
LT-5018 |
LT-5040 |
LT-5062 |
LT-5090 |
LT-50A1 |
LT-50A2 |
|
Medium Temperature Range |
-50℃~30℃ |
-50℃~30℃ |
-50℃~30℃ |
-50℃~30℃ |
-50℃~30℃ |
-50℃~30℃ |
|
ntrol |
ASET multifunctional controller |
||||||
ntrol optional |
Heat-conducting medium outlet ntrol |
||||||
communication protocol |
MODBUS RTU Protocol, RS 485 Interface |
||||||
Temp.feedback |
Heat-conducting medium temperature feedback PT100 |
||||||
Cooling capacity |
-10℃ |
1.5kW |
3.2kW |
4.5kW |
6.2kW |
8.3kW |
12kW |
-20℃ |
1.2kW |
2.7kW |
3.8kW |
5.5kW |
7kW |
10kW |
|
-40℃ |
0.4kW |
0.75kW |
1.15kW |
1.5kW |
2.1kW |
3kW |
|
Circulation pump |
Max20L/min 0.7BAR |
Max20L/min 0.7BAR |
Max35L/min 1BAR |
Max35L/min 1BAR |
Max75L/min 1BAR |
Max75L/min 1BAR |
|
capacity of liquid storage |
15L |
20L |
25L |
30L |
35L |
45L |
|
Compressor |
Tecumseh |
Copeland |
Copeland |
Copeland |
Copeland |
Copeland |
|
Evaporator |
Copper tube |
||||||
Operating controller |
7-inch color touch screen, temperature curve record, excel-format export |
||||||
Security protection |
Self-diagnosis function; freezer overload protection; high pressure switch; overload relay, thermal protection device etc. security protection function. |
||||||
Refrigerant |
R-404A |
||||||
Connection size |
DN-15 |
DN20 |
DN20 |
DN20 |
DN20 |
DN-20 |
|
Product size(air-cooled) |
400*600*1050 |
500*680*1350 |
550*680*1450 |
550*680*1550 |
620*680*1650 |
750*750*1750 |
|
Weight (air-cooled) |
145 kg |
185kg |
230kg |
275kg |
340kg |
380kg |
|
Power |
AC220V 50HZ 2.2kW (max) |
AC380V 50HZ 3.5kW (max) |
AC380V 50HZ 4.5kW (max) |
AC380V 50HZ 6kW (max) |
AC380V 50HZ 7kW (max) |
AC380V 50HZ 9kW (max) |
|
Material |
Cold rolled steel painting |
||||||
Optional |
Match 7-inch color touch screen controller, temperature curve record, data export to excel format. |
||||||
Optional |
Circulation Pump Optional: 35L/min 2.5bar 50L/min 2.5bar 110L/min 2.5bar |
||||||
Optional |
SUS304 material |
||||||
Optional |
Pressure max. 6 bar circulating pump |
||||||
Optional Power |
220V 60HZ three-phases, 440V~480V 60HZ three-phases |
||||||
Remark |
Can make the bigger capacity of water storage as required. |
||||||

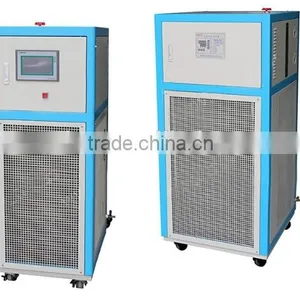

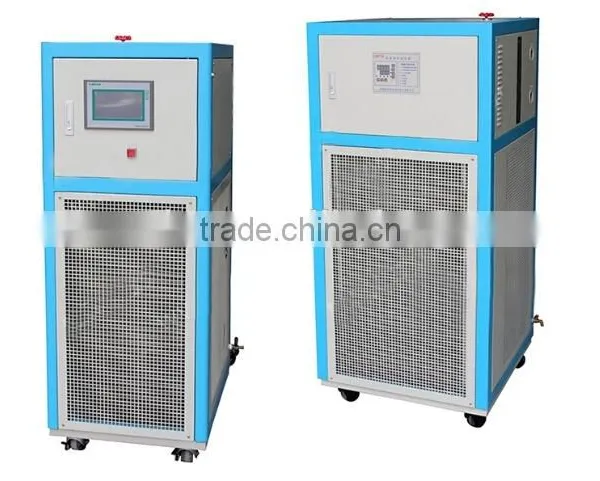

Photo of chiller
Packing of chiller
