Home > Instruments & Meters > Laboratory Instruments > Laboratory Thermostat > Hot Laboratorylow Temperature Circulator LT -65~-20

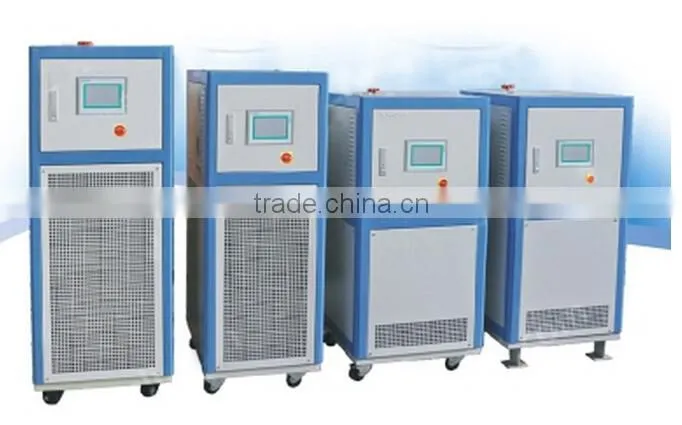

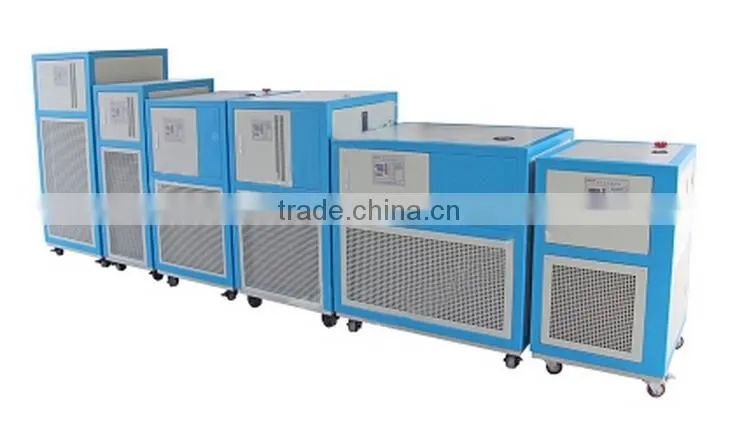

Hot Laboratorylow Temperature Circulator LT -65~-20

Name: Hot Laboratorylow Temperature Circulator LT -65~-20
Brand: TOPTION
SKU: 112016281
Availability: InStock

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

TOPTION

Model Number:

LT6018

Place of Origin:

Shaanxi, China

Contact Supplier Request Quote Chat Now

Xian Toption Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TOPTION

Model Number LT6018

Place of Origin Shaanxi, China

Hot labrotary low temperature circulator LT -65℃~-20℃

Advantage:

.Saving resources;

.closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid.

Technical Parameters of low temperature circulator:

Model		LT-6018	LT-6030	LT-6062	LT-6090	LT-60A1	LT-60A2
Medium Temperature Range		-65℃~-20℃	-65℃~-20℃	-65℃~-20℃	-65℃~-20℃	-65℃~-20℃	-65℃~-20℃
Temp. control		ASET multifunctional controller
Temp. control optional		Heat-conducting medium outlet temp. control
communication protocol		MODBUS RTU Protocol, RS 485 Interface
Temp. feedback		Heat-conducting medium temperature feedback PT100
Cooling capacity	-20℃	0.85kW	1.45kW	2.5kW	3.4kW	4.8kW	7.2kW
	-40℃	0.7kW	1.2kW	2.1kW	2.8kW	4kW	6kW
	-55℃	0.4kW	0.6kW	1.2kW	1.6kW	2kW	3kW
Circulation pump		Max20L/min 0.7BAR	Max20L/min 0.7BAR	Max35L/min 1BAR	Max35L/min 1BAR	Max75L/min 1BAR	Max75L/min 1BAR
capacity of liquid storage		15L	20L	25L	30L	35L	45L
Compressor		Tecumseh	Copeland	Copeland	Copeland	Copeland	Copeland
Evaporator		Copper tube
Operating controller		7-inch color touch screen, temperature curve record, excel-format export.
Security protection		Self-diagnosis function; freezer overload protection; high pressure switch; overload relay, thermal protection device etc. security protection function.
Refrigerant		R-404A
Connection size		DN-15	DN20	DN20	DN20	DN20	DN-20
Product size(air-cooled)		4006001050	5006801350	5506801450	5506801550	6206801650	7507501750
Weight (air-cooled)		145 kg	185kg	230kg	275kg	340kg	380kg
Power		AC220V 50HZ 2.5kW (max)	AC380V 50HZ 3.8kW (max)	AC380V50HZ 4.5kW (max)	AC380V 50HZ 6.5kW (max)	AC380V 50HZ 8kW (max)	AC380V50HZ 10.5kW (max)
Material		Cold rolled steel painting
Optional		Match 7-inch color touch screen controller, temperature curve record, data export to excel format.
Optional		Circulation Pump Optional: 35L/min 2.5bar 50L/min 2.5bar 110L/min 2.5bar
Optional		SUS304 material
Optional		Pressure max. 6 bar circulating pump
Optional Power		220V 60HZ three-phases, 440V~480V 60HZ three-phases
Remark		Can make the bigger capacity of water storage as required.
