Key feature:
1.12/24V automatic recognition
2.Gel, Sealed and Flooded battery selectable by user
3.Adopt temperature compensation.
4.High efficient PWM solar charge controller
5.For home solar system (HN*) or street light (HN*R)
6.LED Indicators for Charing status/Battery status/Load status/Overheating protection
7.Reverse protection for solar module and battety
8.Protection for Overheating, over charge, over discharge, overload, and short circuit.
Unique features for HN1024R / HN1524R /HN2024R:
8.Timer function to control the ON/OFF Time and running hours of the light
9.Digital LED menu and one key for parameter setting
10.Light control ,automatically recognize day/night.
Solar Charge Controller HN Series TECHNOLOGY SPECS
| ITEM | MODE | HN1024/HN1024R | HN1524/HN1524R | HN2024/HN2024R |
| Rated charge Voltage | 12 / 24VDC Auto work | |||
| Maximum Battery Voltage | 32V | |||
| Rated charge Current | 10A | 15A | 20A | |
| Battery type selectable | Gel/Sealed/Flooded | |||
| Over Voltage Disconnect Voltage | 16V; 32/24V | |||
| Charging Limit Voltage | 15.5V;31/24V | |||
| Over Voltage Reconnect Voltage | 15V; 30/24V | |||
| Low Voltage Reconnect Voltage | 12.6V;25.2/24V | |||
| Low Voltage Disconnect Voltage | 11.1V;22.2/24V | |||
| Charge Circuit Voltage Drop | ≤0.26V | |||
| Discharge Circuit Voltage Drop | ≤0.15V | |||
| Self-consumption | ≤6mA | |||
| NTTV (Night Time Threshold Voltage) | ||||
| DTTV (Day Time Threshold Voltage) | 6V; 12/24V | |||
| Temperature Compensation Coefficient(TEMPCO) | -30mV/°C/12V(25°C ref) | |||
| Working temperature | -35°C to +55°C | |||
| Storage temperature | -35°Cto +80°C | |||
| Humidity | 10%-90% NC | |||
| Enclosure | IP30 | |||
| Mounting hole size | Φ4.5 | |||
| Terminal | 6mm2 | 10mm2 | 10mm2 | |
| Overall dimension(mm) | 140*65*34 | 144*75*45 | 144*75*45 | |
| Mounting dimension(mm) | 130* 45 | 135*55 | 135*55 | |
| Net weight | 0.15kg | 0.25kg | 0.25kg | |
| Remark | The HN1024,HN1524,HN2024 used for solar power system | |||
| The HN1014R,HN1524R,HN2024R used for solar light system | ||||

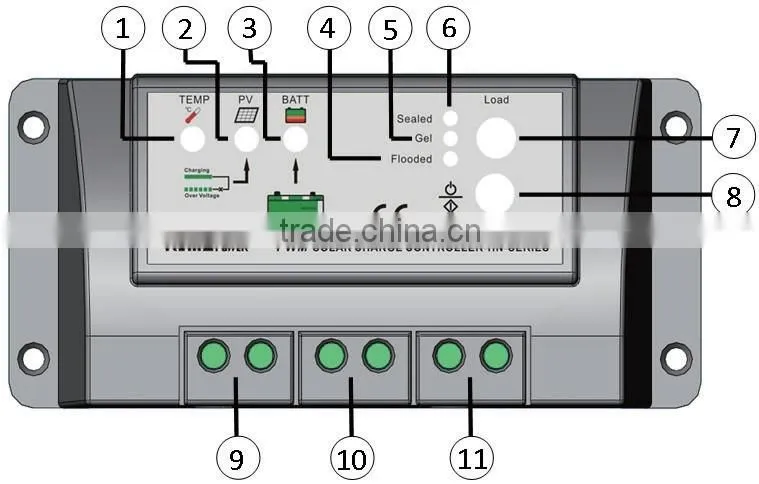

For HN1024 /HN1524/ HN2024
1 –Temperature Sensor
2 – Charging status LED indicator
3 – Battery status LED indicator
4 – Flooded battery indicator
5 – Gel battery indicator
6 – Sealed battery indicator
7 –Load status indicator
8 –Setting button
9 –Solar Module Terminals
10 –Battery Terminals
11 –Load Terminals

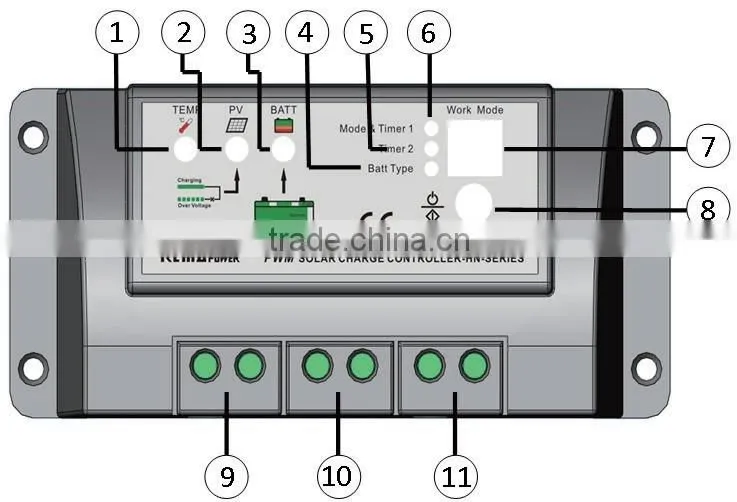

For HN1024R /HN1524R/ HN2024R
1 –Temperature Sensor
2 – Charging status LED indicator
3 – Battery status LED indicator
4 – Battery type setting indicator
5 – Timer 2 setting indicator
6 – Timer 1 setting indicator
7 –LED digital display
8 –Setting button
9 –Solar Module Terminals
10 –Battery Terminals
11 –Load Terminals

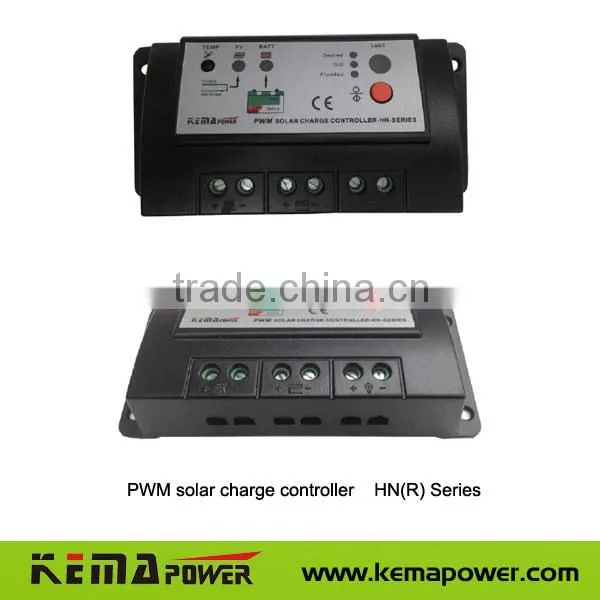

PWM Charging Mode
