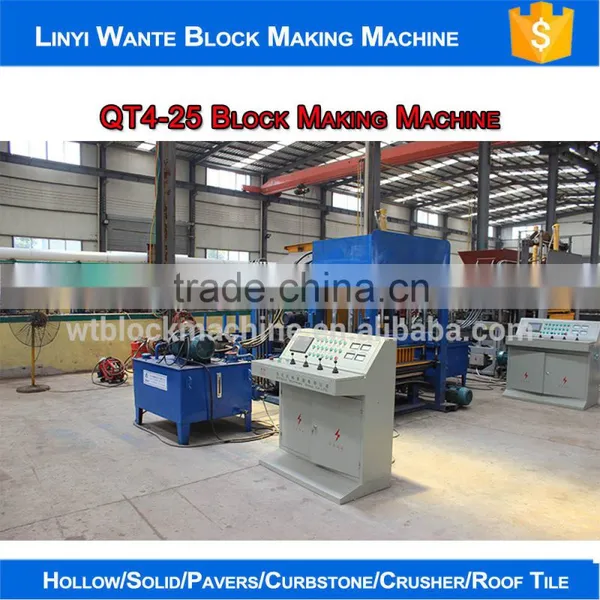

WANTE BRAND QT4-25 brick maching machinery building material machinery
Brief introduction

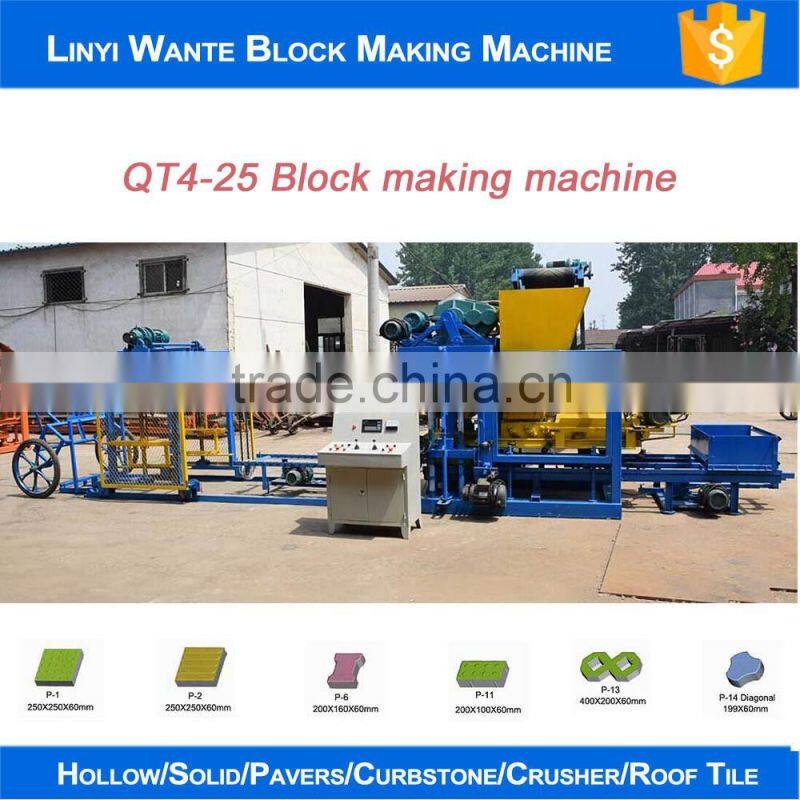

QT4-25 full automatic machine is our newest design, it absord both advantages from machine
QT4-24 and QT4-15, so as a full automatic machine, the price is not high. And its operation stable,
good quality of bricks, simple manipulation by PLC, all these make QT4-25 become one of our
best seller. It can not only produce hollow blocks, paver blocks but also curbstone, solid blocks and so on.
Advantages
WANTE BRAND QT4-25 brick maching machinery building material machinery
<1>Full automatic type
<2>Good capacity, about 4600pcs/8 hours(Standard size)
<3>PLC of Mitstibishi, Motor of Simens and Sensor of Omron, their using life is much longer
<4>Water cooling system, more safe
<5>Material feeding,pressing, and pallet feedeing are all controlled by hydraulic pressure

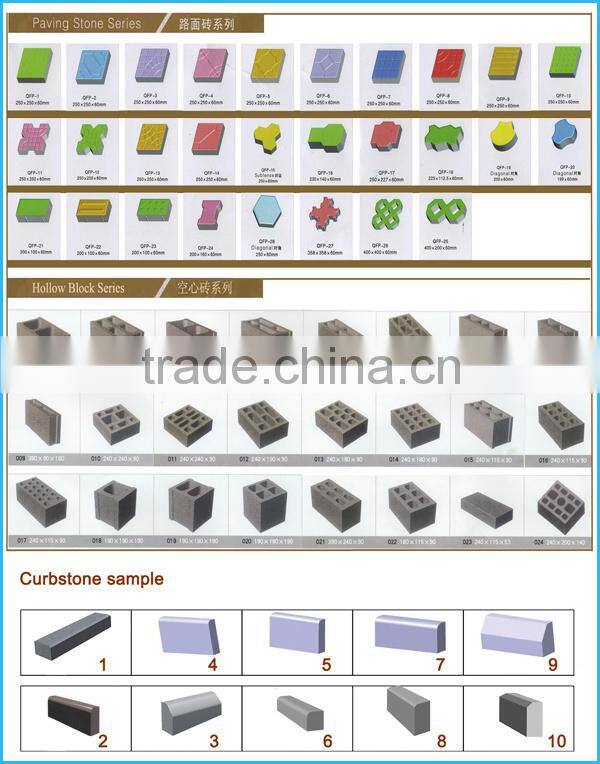

<6>Many kinds of blocks it can produce, such as hollows, pavers, curbstone and so on.

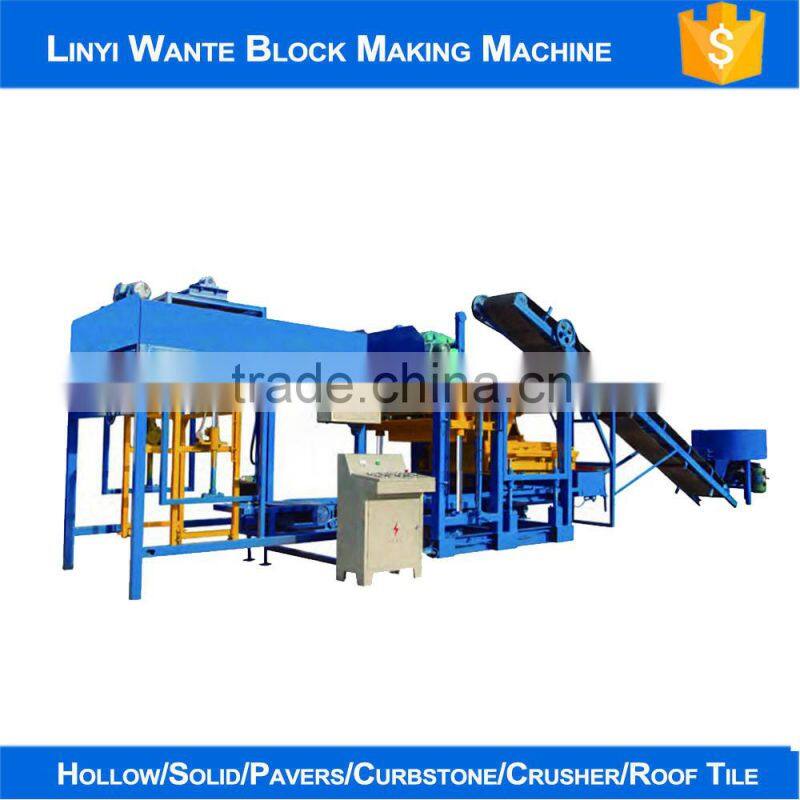

Different parts of WANTE BRAND QT4-25 brick maching machinery building material machinery
1>QT4-25 host machine
2>JD500 mixer
3>Conveyor belt
4>Stacker machine
5>PLD800 batching machine
6>PLC controller
Pictures and Technical parameters of WANTE BRAND QT4-25 brick maching machinery building material machinery

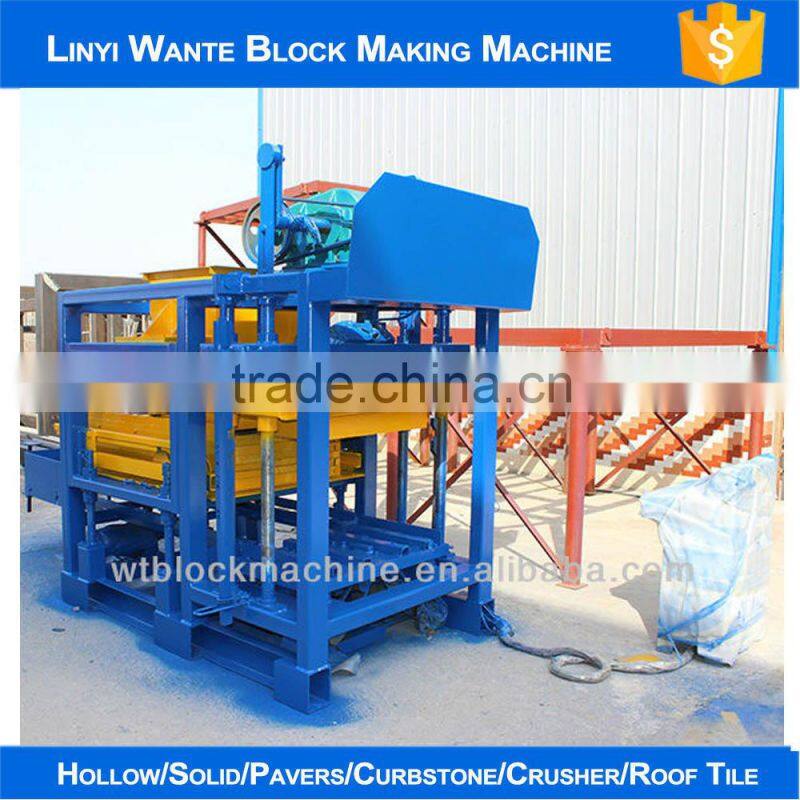

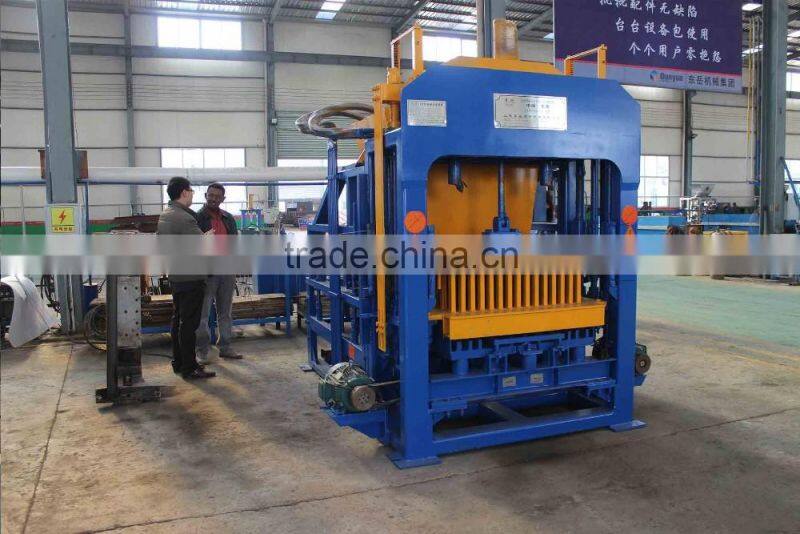

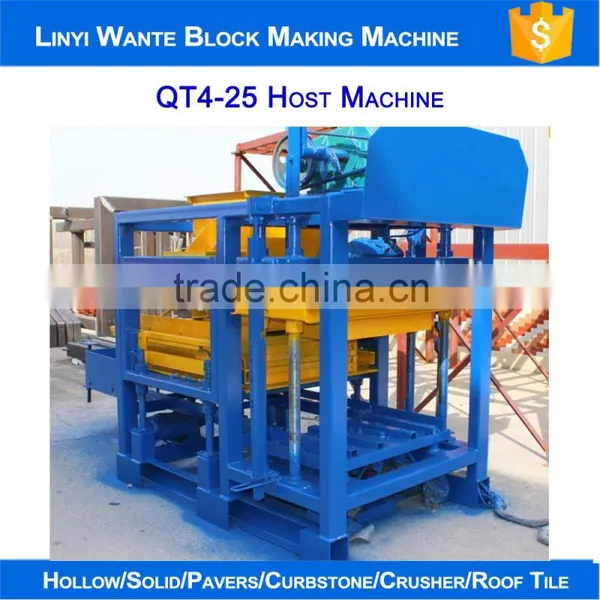

(1) host machine
QT4-25 block machine parameters | |
Overall size |
3600(L)×1650(W)×2100(H)mm |
Shaping cycle |
20 seconds |
Pallet size |
850×450×25mm (bamboo) |
|
850×450×25mm (Plastic) |
Vibration frequency |
Max.4000 R/Min |
Upper vibrator |
4KW |
Nether vibrator |
4kw |
Electricity |
380V/220V/ (adjustable) |
Total weight |
3200 KGS |

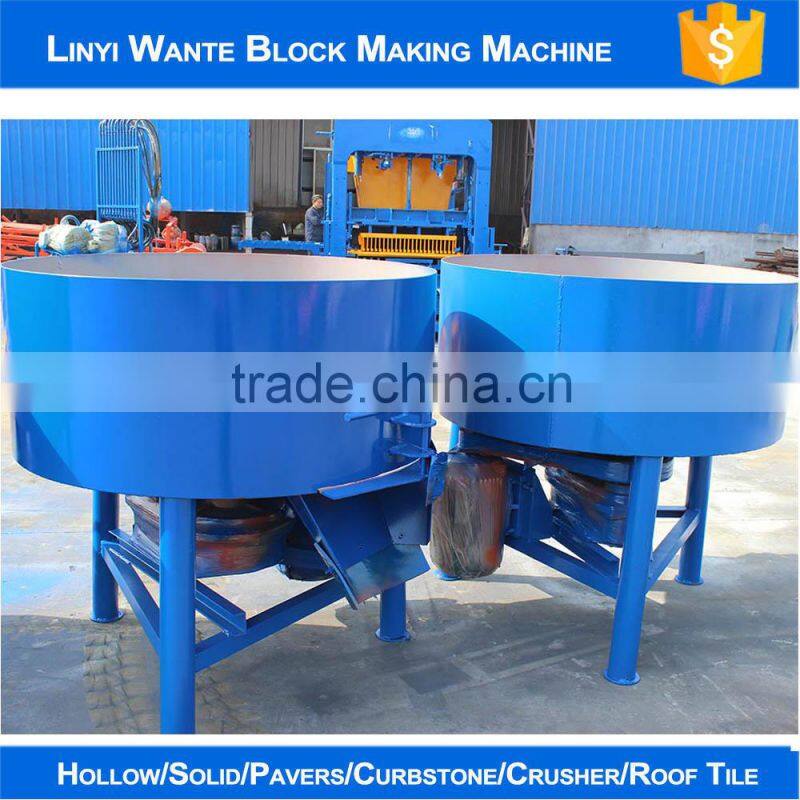

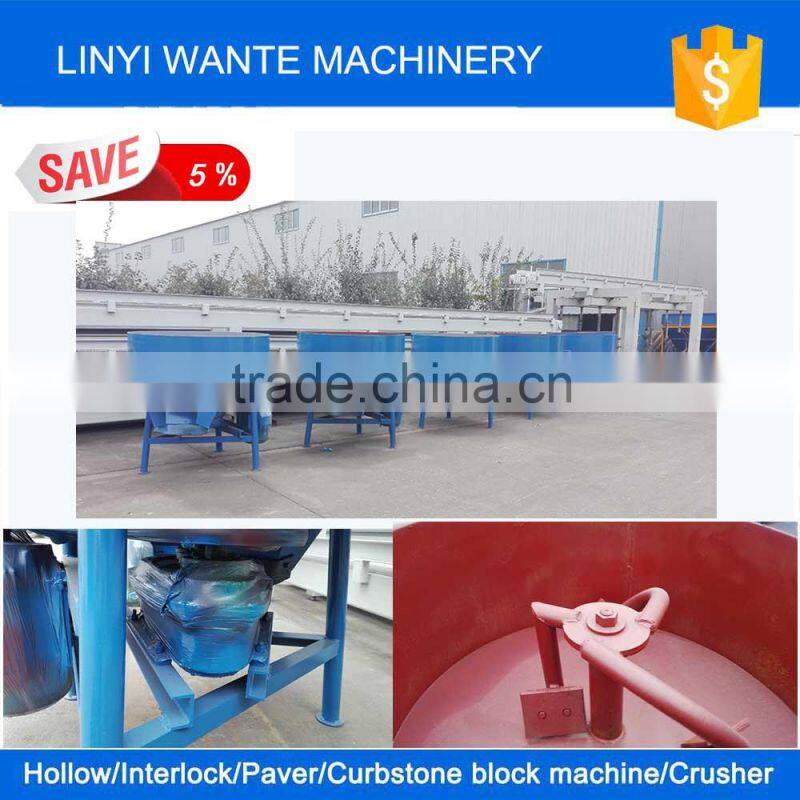

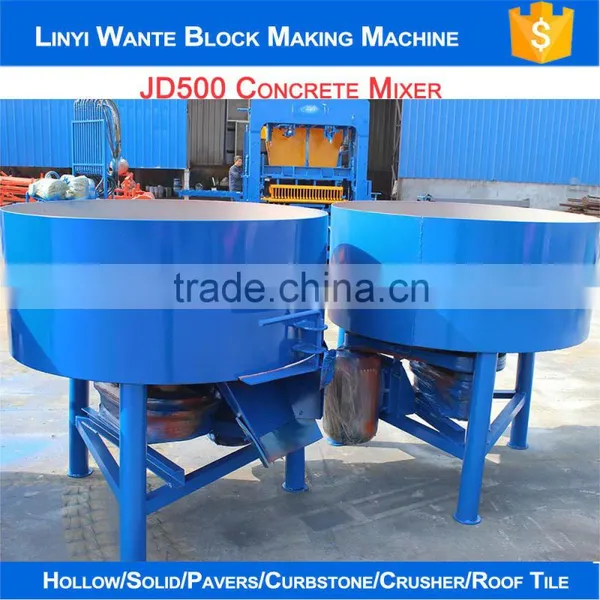

(2) JD500 mixer
JD500 mixer | |
Overall size |
1500x1500x1400mm |
Shaping cycle |
5 mins |
Volume |
500L (50Kgs Cement) |
Electricity |
380V/220V/ (adjustable) |
Total weight |
600KGS |

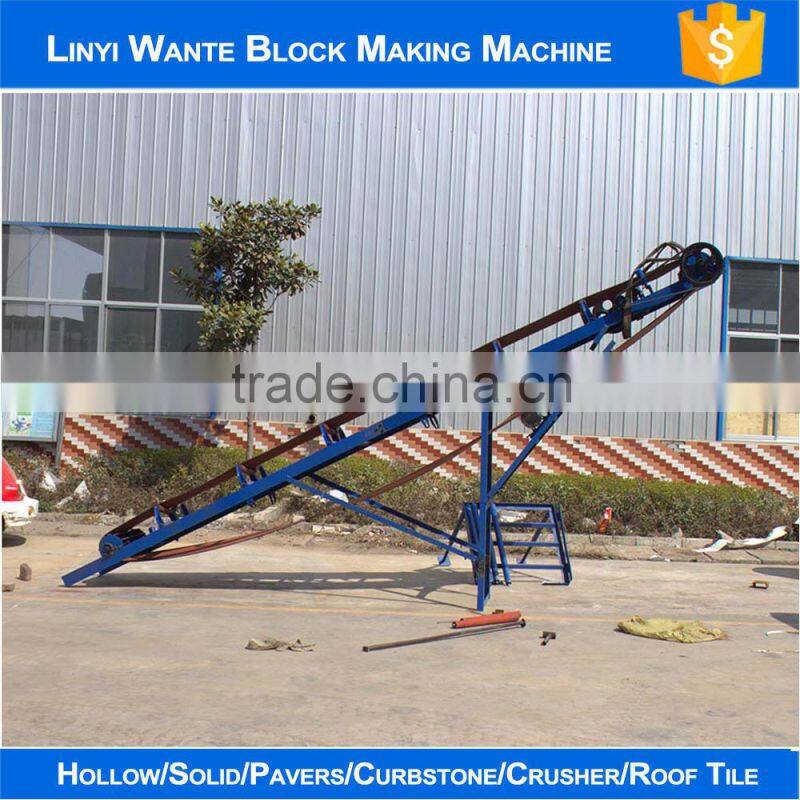

(3) Conveyor belt
Conveyor belt | |
Belt width (M) |
6 |
Belt length (M)/KW |
6/2.2 |
Belt speed (M/S) |
2 |

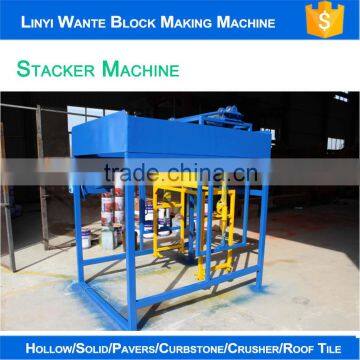

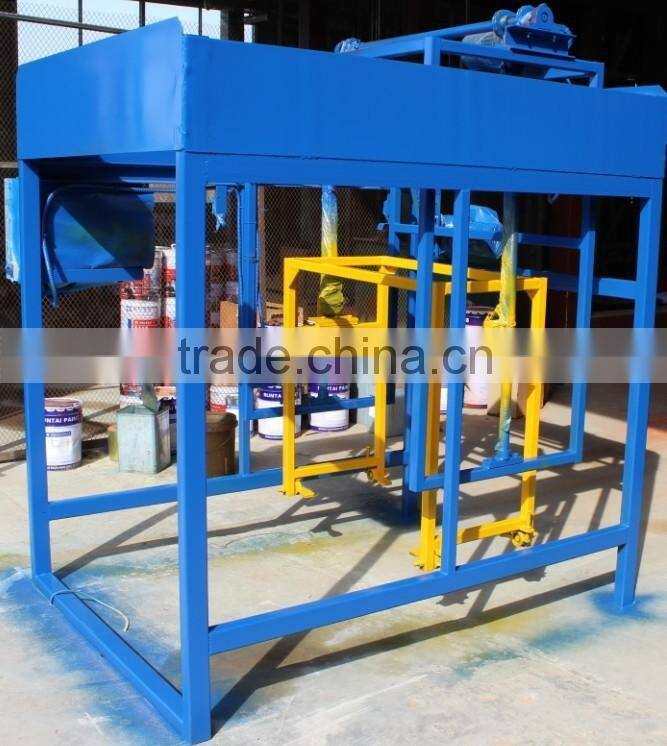

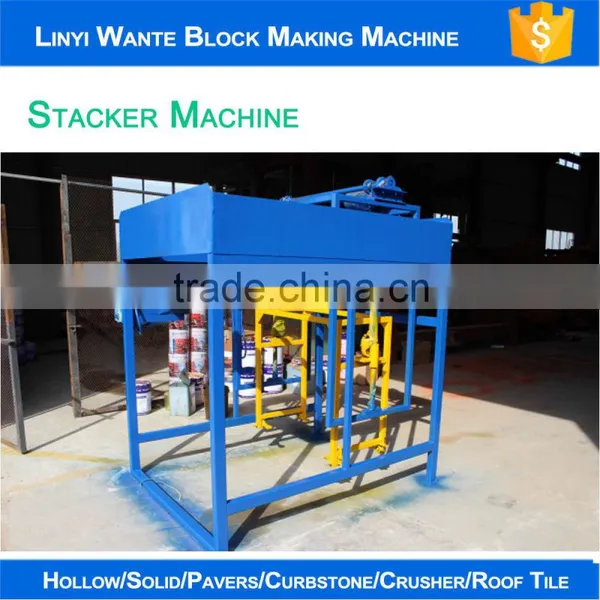

(4) Stacker machine
Stacker machine | |
Overall size |
2100(L)×1800(W)×2300(H)mm |
Power (KW) |
3KW |
Electricity |
380V/220V/ (adjustable) |
Stacker layer |
3 floor |
Speed |
0.5M/S |
Total weight |
2000KGS |
Capacity of WANTE BRAND QT4-25 brick maching machinery building material machinery
| Size(L*W*H) mm | Pcs/mold | Pcs/Hr | Pcs/8Hrs |
| 400*100*200 | 8 | 1152 | 9216 |
| 400*150*200 | 5 | 720 | 5760 |
| 400*200*200 | 4 | 576 | 4608 |
| 400*250*200 | 4 | 576 | 4608 |
| 230*110*70 | 20 | 2880 | 23040 |
Our customers
WANTE BRAND QT4-25 brick maching machinery building material machinery
