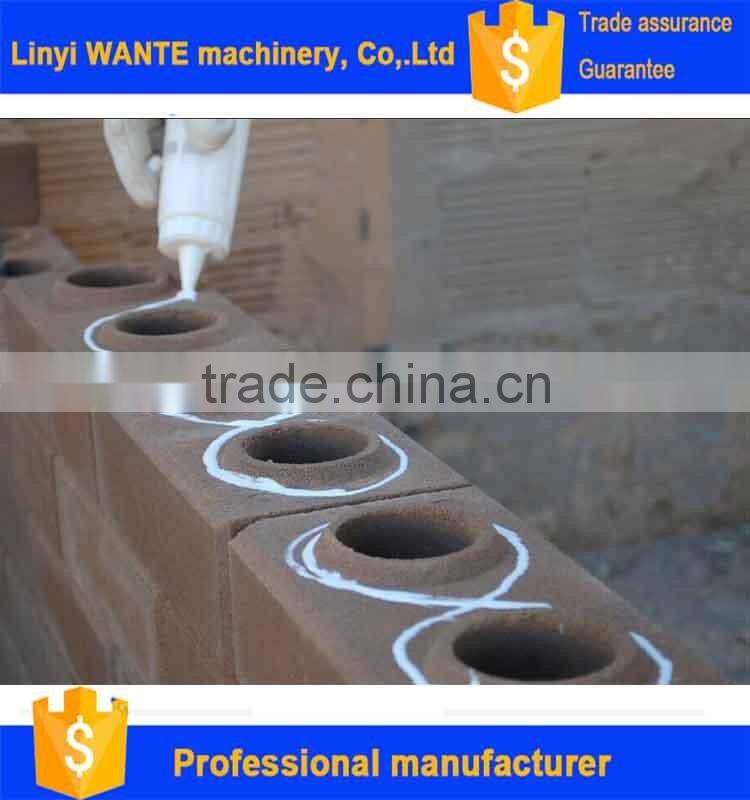

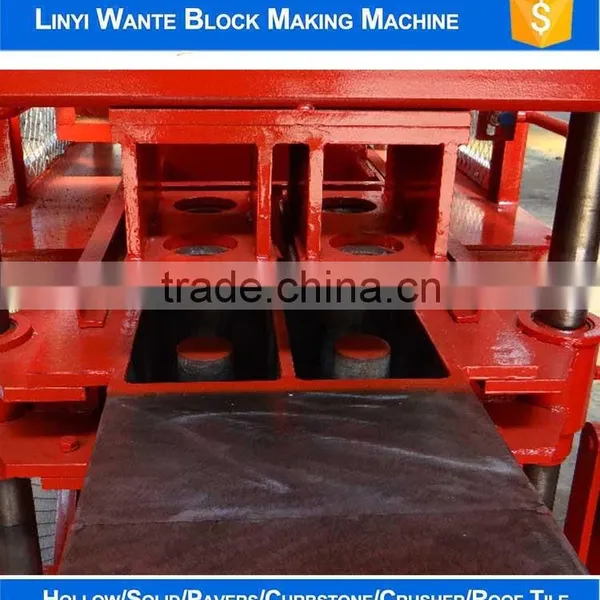

WT2-10 hydraulic Compressed Earth Block in Somalia

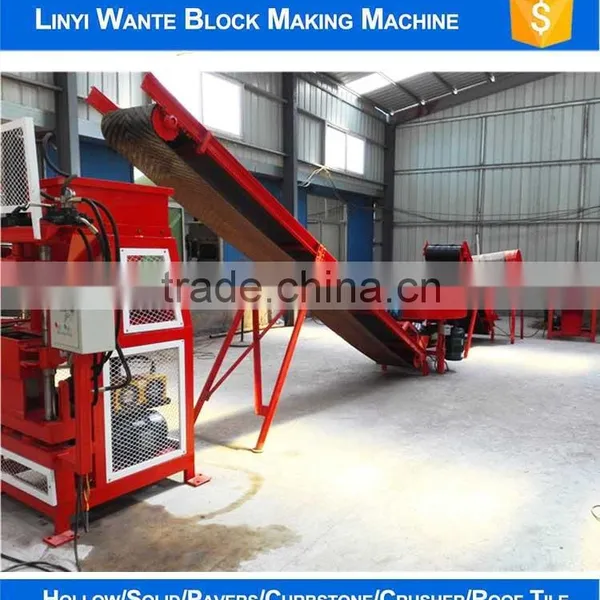

WT2-10 hydraulic Compressed Earth Block in Somalia production line
WT2-10 production line working process :
1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.
Customers visiting

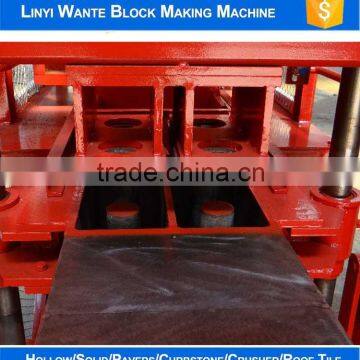

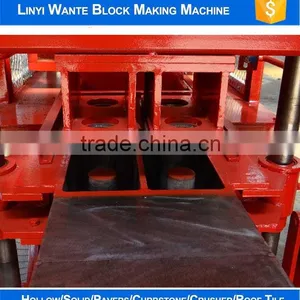

WT2-10 hydraulic interlocking brick press main parameters
WT1-10A hydraulic interlocking block machine | |
Overall size | 1400(L)×1100(W)×2100(H)mm |
Shaping cycle | 10-12 seconds |
Power | 7.5 KW |
| 12 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1300 KGS |
Mesh main parameters
Overall size mm | 1100(L)×1100(W)×1400(H)mm |
Motor | 5.5KW |
Capacity | 500KGS/H |
Electricity | 380V/220V/ (adjustable) |
Total weight | 300 KGS |
Crusher main parameters
Power | 3KW |
Capacity | 480KGS/h |
Rated power | 380V or 220V |
Size | Diameter:500mm |
Total weight | 320 KGS |
Mixer main parameters
Overall size mm | 1200(L)×1200(W)×1200(H)mm |
Mixing time | 3-5mins |
Feeding volume | 500L |
Output volume | 350L |
Power | 7.5 kw |
Total weight | 400 KGS |

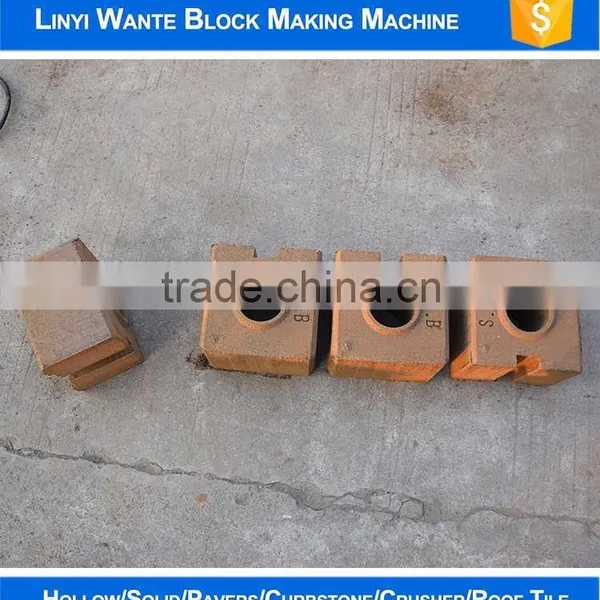

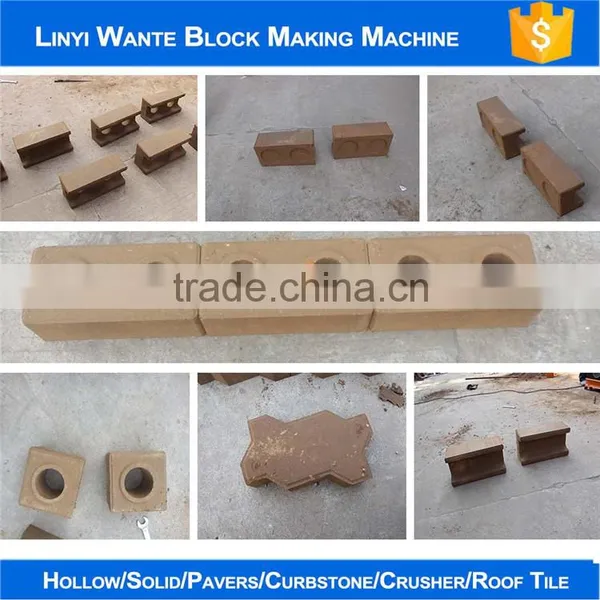

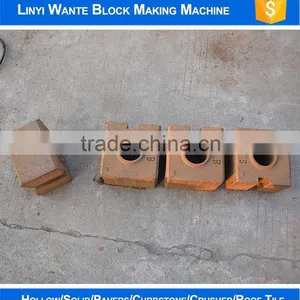

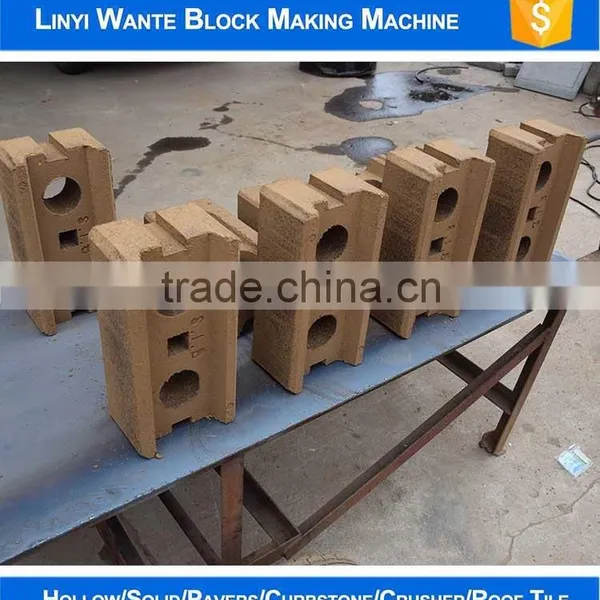

Block size | Piece/mold | Pieces/hour | Pcs/day |
300x150x100mm | 2 | 500-600 | 5000-6000 |
This year, we have dlivered more than 120 sets to Mliddle Asia, Africa, South Africa etc
