Advantages of brick making machine QT4-25 High Quality Cement/Concrete Block Making Machine
1>Full automatic type
2>Good capacity, about 4600pcs/8 hours(Standard size)
3>PLC of Mitstibishi, Motor of Simens and Sensor of Omron, their using life is much longer
4>Water cooling system, more safe
5>Material feeding,pressing, and pallet feedeing are all controlled by hydraulic pressure

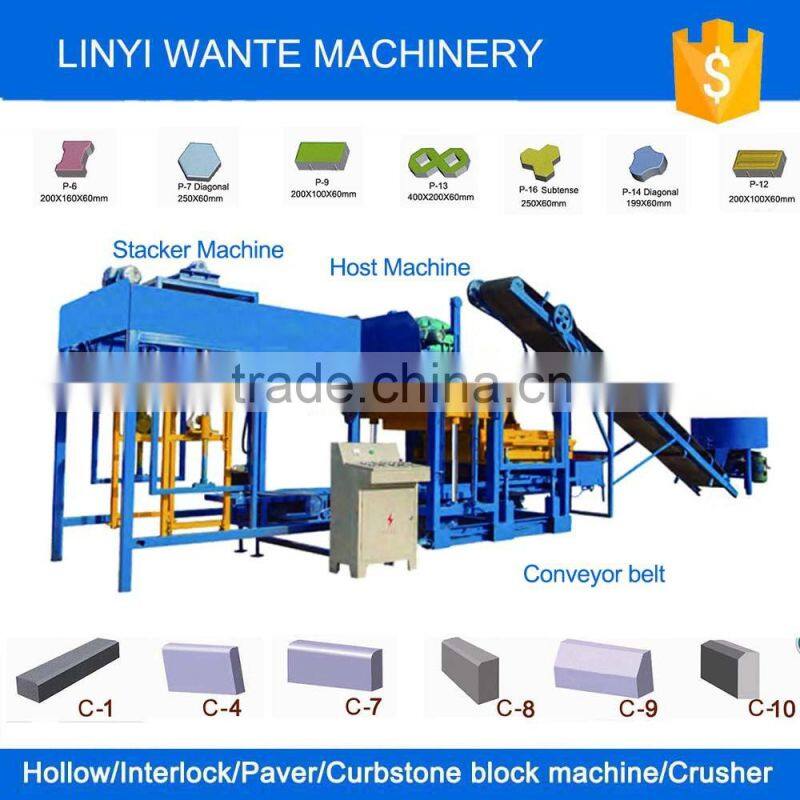

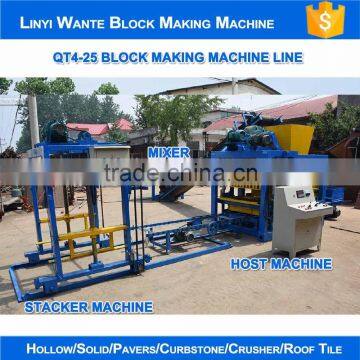

1.A production line include these part equipments as below :

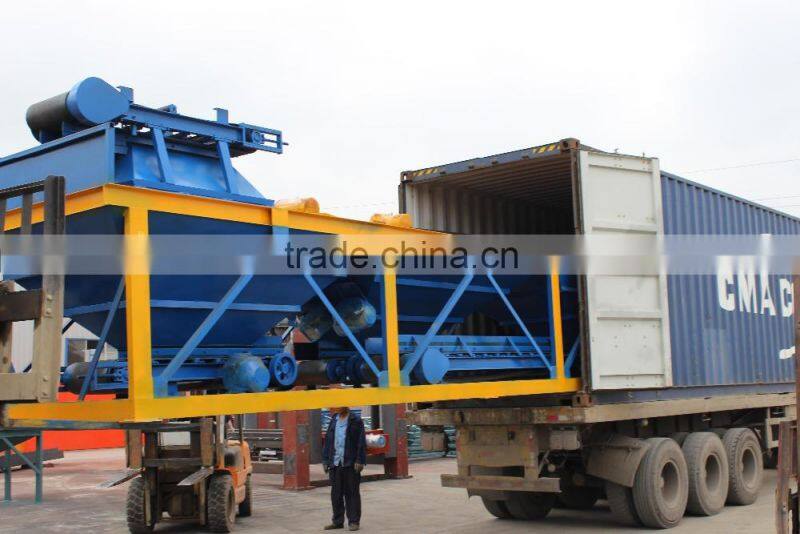

(1) PLD800 batching machine
Function: This is the starting point of the Production process. It consists of three loading bins
and one weighing bin. It also contains belt conveyers to convey materials from loading bins to
weighing bin. Batching and weighing is done by PLC control. We can load three different types
of material into the loading bin

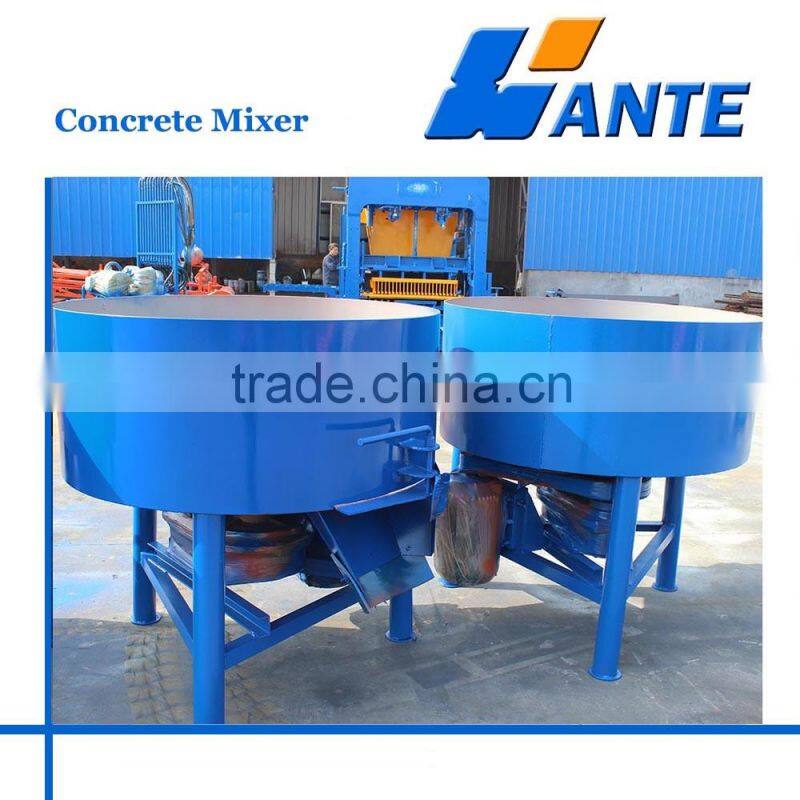

(2) JD500 mixer machine
Function:All the ingredients are mixed in this mixture machine.

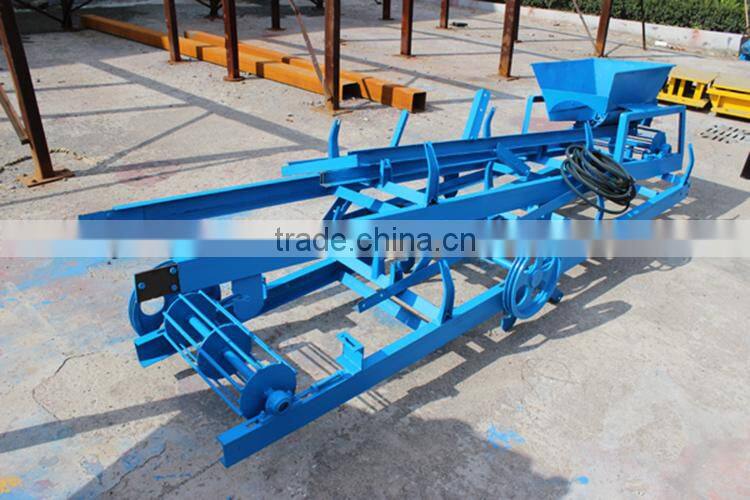

(3). Belt conveying machine (6m)
When the batching plant's weighing bin trips according to the PLC control, the material comes to
this conveyor belt. The material is then carried to the mixture machine.

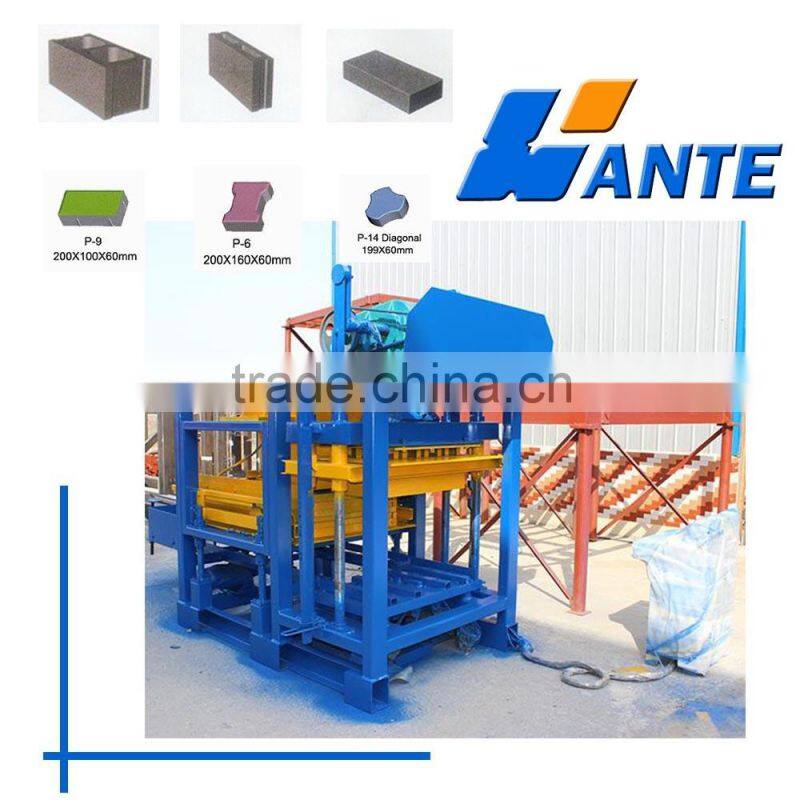

(4) Host machine
QT4-25 is the newest fully automatic block machine .It starts using hydraulic pressure system with
two hydro-cylinder.The lifting speed is fast and the pressure function is well.
QT4-25 block machine parameters | |
Overall size | 3600(L)×1650(W)×2100(H)mm |
Shaping cycle | 20 seconds |
Pallet size | 850×450×25mm (bamboo) |
| 850×450×25mm (Plastic) |
Vibration frequency | Max.4000 R/Min |
Upper vibrator | 4KW |
Nether vibrator | 4kw |
Electricity | 380V/220V/ (adjustable) |
Total weight | 3200 KGS |

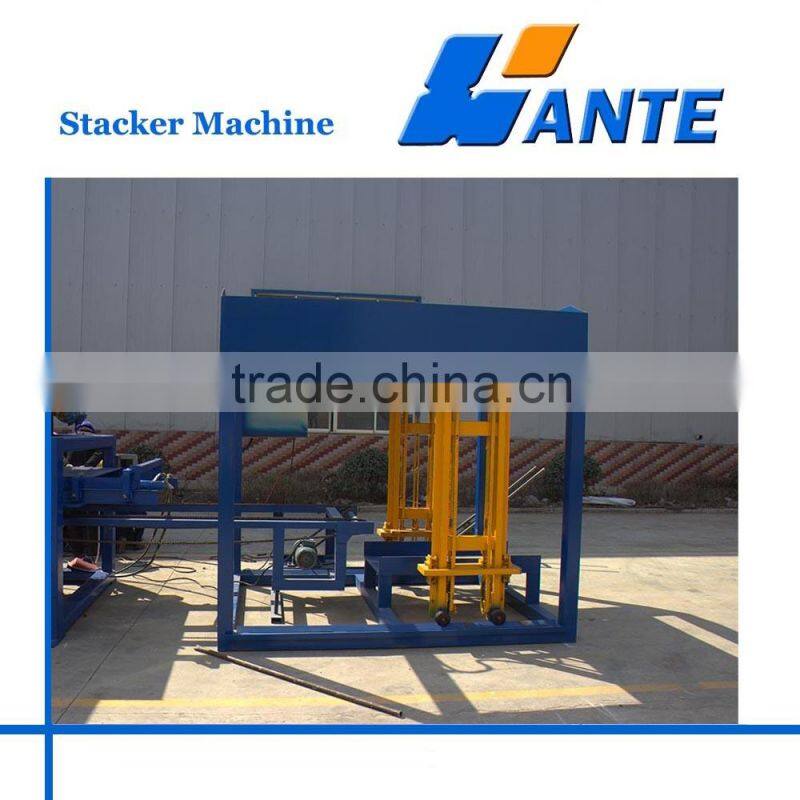

(5)Stacker
This lifts the pallets carrying the bricks/blocks, and stacks them on 5 to 6 layers automatically.
Capacity of cement brick making machineQT4-25 german concrete block making machine price in South Africa

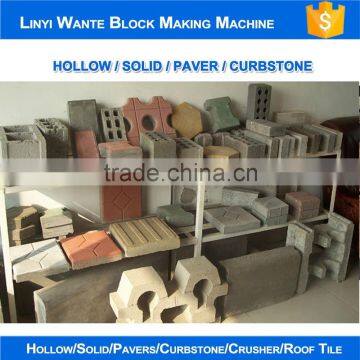

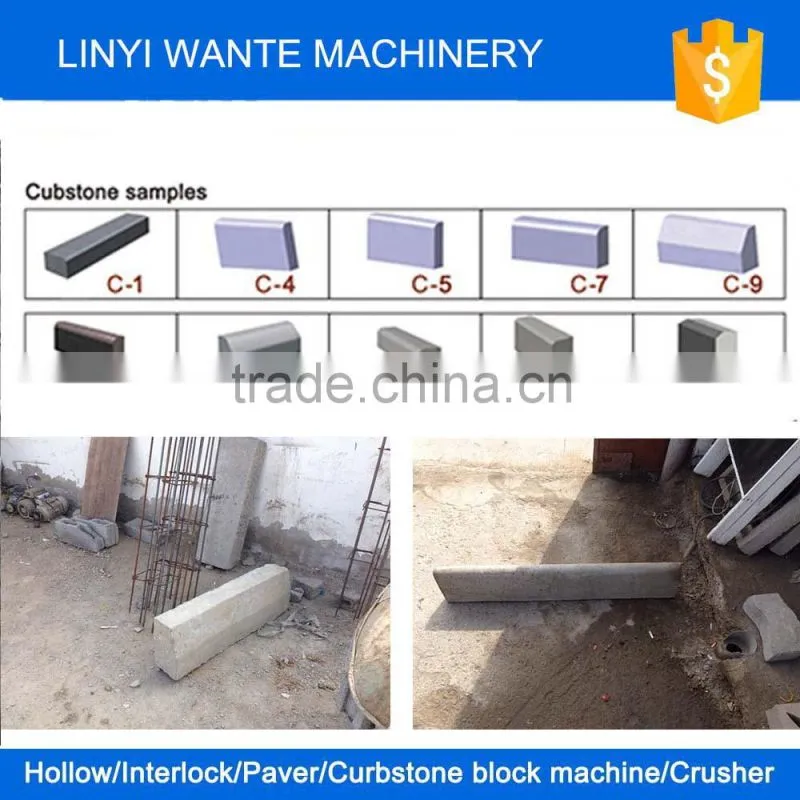

It can produce all kinds of blocks ,such as hollow block ,solid brick and paver .
| Size(L*W*H) mm | Pcs/mold | Pcs/Hr | Pcs/8Hrs |
| 400*100*200 | 8 | 1152 | 9216 |
| 400*150*200 | 5 | 720 | 5760 |
| 400*200*200 | 4 | 576 | 4608 |
| 400*250*200 | 4 | 576 | 4608 |
| 230*110*70 | 20 | 2880 | 23040 |
This is the most popular proportion in making block making machine:
1.cement,sand,stone (standard concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
River sand | 40% |
Crushed stone | 45% |
Other specify | You can change the proportion depend on your needs. This block is heavy,but strong |
2.cement,slag (light concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
slag | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is light, not so strong |
3.cement,sand,stone,slag
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
Sand | 10-20% |
Stone | 30-40% |
slag | 25-50% |
Other specify | You can change the proportion depend on your needs. This block is a little light, stron |

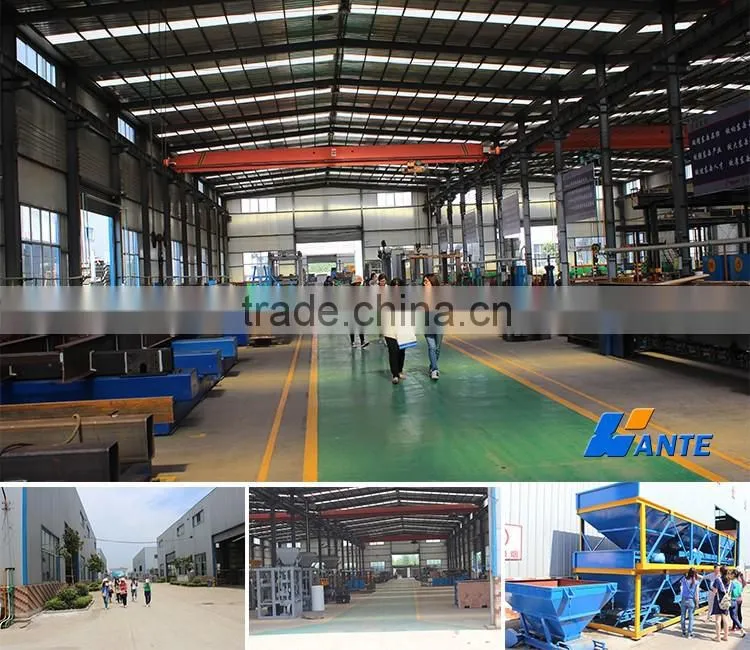

WORKSHOP SHOWING
