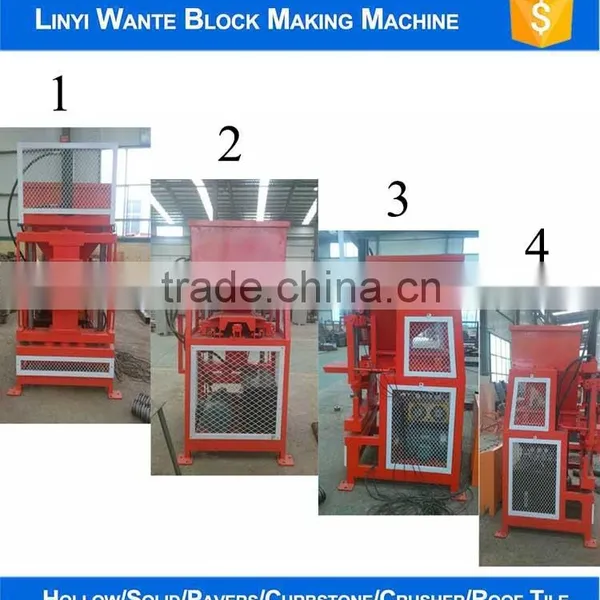

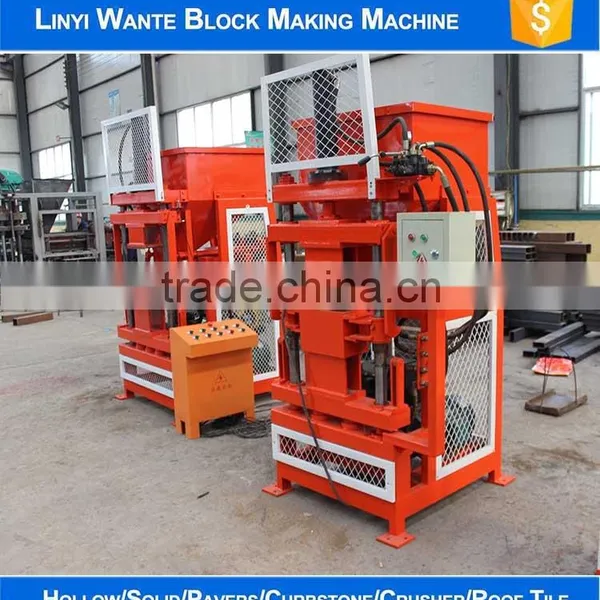

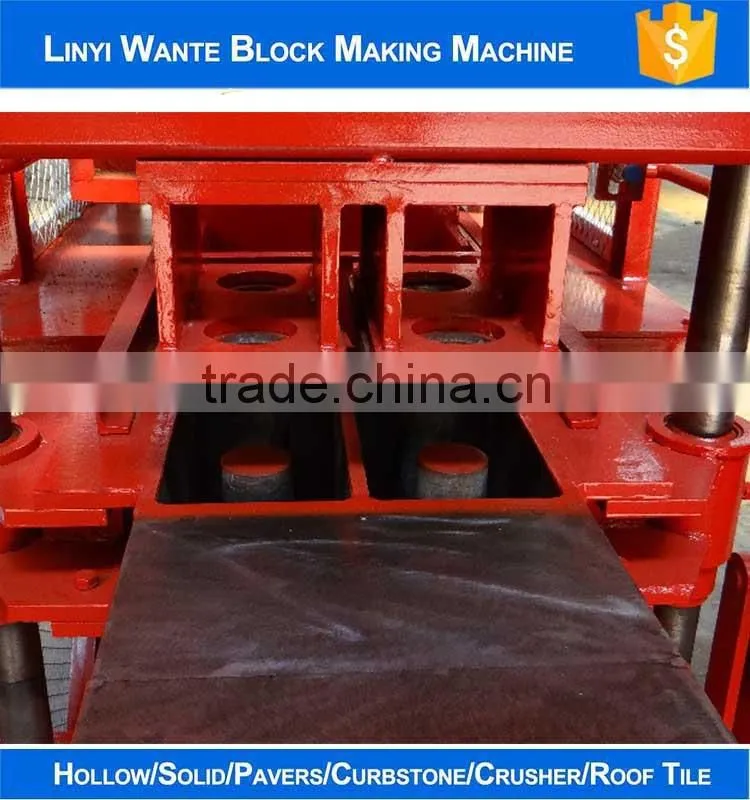

WT2-10 interlocking soil cement blocks making machine
WT2-10 interlocking soil cement blocks making machine LINE photo
WT2-10 production line working process :
1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.
WT2-10 interlocking soil cement blocks making machine main parameters
WT1-10A hydraulic interlocking block machine | |
Overall size | 1400(L)×1100(W)×2100(H)mm |
Shaping cycle | 10-12 seconds |
Power | 7.5 KW |
| 12 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1300 KGS |
Mesh main parameters
Overall size mm | 1100(L)×1100(W)×1400(H)mm |
Motor | 5.5KW |
Capacity | 500KGS/H |
Electricity | 380V/220V/ (adjustable) |
Total weight | 300 KGS |
Crusher main parameters
Power | 3KW |
Capacity | 480KGS/h |
Rated power | 380V or 220V |
Size | Diameter:500mm |
Total weight | 320 KGS |
Mixer main parameters
Overall size mm | 1200(L)×1200(W)×1200(H)mm |
Mixing time | 3-5mins |
Feeding volume | 500L |
Output volume | 350L |
Power | 7.5 kw |
Total weight | 400 KGS |
Block size | Piece/mold | Pieces/hour | Pcs/day |
300x150x100mm | 2 | 500-600 | 5000-6000 |
This year, we have dlivered more than 120 sets to Mliddle Asia, Africa, South Africa etc
